Description

Price

1

Ball Bearing

420232100

$20.99

2>8

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$291.49

3

Step Collar

420847933

$38.99

4

Oil Seal

420230198

$15.89

5

Ball Bearing

420232100

$20.99

6

Rotary Seal

420650371

$43.49

7

Not Available As Spare Part - Friction Washer

Unavailable

8

O-Ring

420950890

$4.44

9

Allen Screw M5 x 16

420840514

$1.90

10

Impeller

420222507

$19.99

11

Gasket | Included in gasket kit

420931813

$13.77

12

WATER PUMP HOUSING - Call your local BRP dealership

420933632

Unavailable

13

Torx Flange Screw M6 X 25

420440234

$3.06

14

Formed Hose This part replaces 420822801.

420822802

$74.49

15

Gear Clamp

420951293

$9.27

16

Thermostat Housing | Includes 17 to 18

420822836

$74.99

17

O-Ring

420430062

$2.11

18

Spring Clip

420939344

$2.11

19

Return Hose

420822820

$11.60

20

Clamp 34.9-38.1MM

420951123

$4.44

21

Tie Rap 200 X 4.6

420951652

$7.65

22

Formed Hose

420201775

$11.60

23

Clamp

420853511

$7.51

24

Formed Hose

420201771

$11.60

25

Clamp

420851458

$7.41

26

Clamp

420851250

$10.33

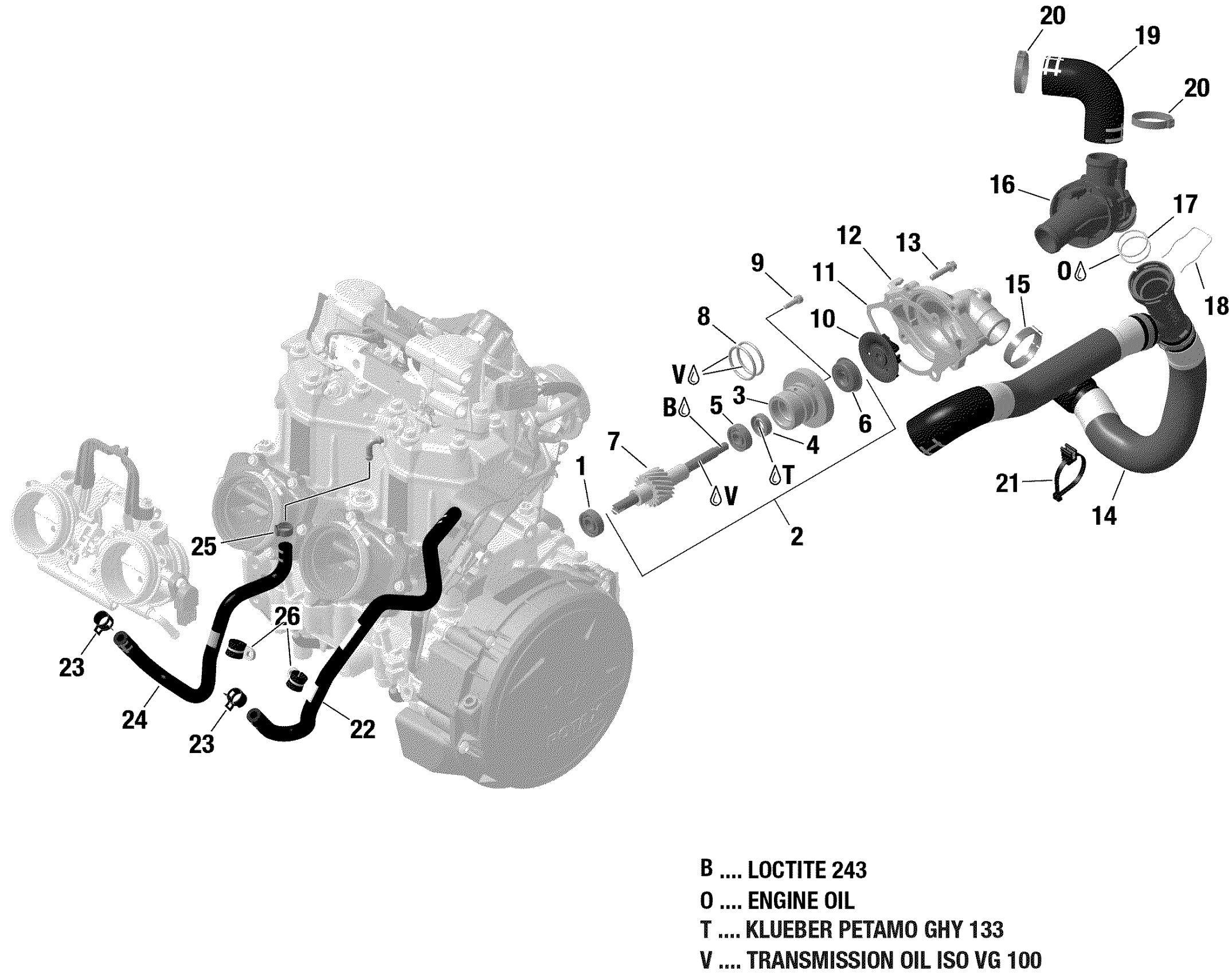

Ski-Doo 7- MXZ X - 600R ETEC, 2018 01- Engine Cooling Diagram

Ball Bearing

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

Step Collar

Oil Seal

Ball Bearing

Rotary Seal

Not Available As Spare Part - Friction Washer

O-Ring

Allen Screw M5 x 16

Impeller

Gasket | Included in gasket kit

WATER PUMP HOUSING - Call your local BRP dealership

Torx Flange Screw M6 X 25

Formed Hose This part replaces 420822801.

Gear Clamp

Thermostat Housing | Includes 17 to 18

O-Ring

Spring Clip

Return Hose

Clamp 34.9-38.1MM

Tie Rap 200 X 4.6

Formed Hose

Clamp

Formed Hose

Clamp

Clamp
