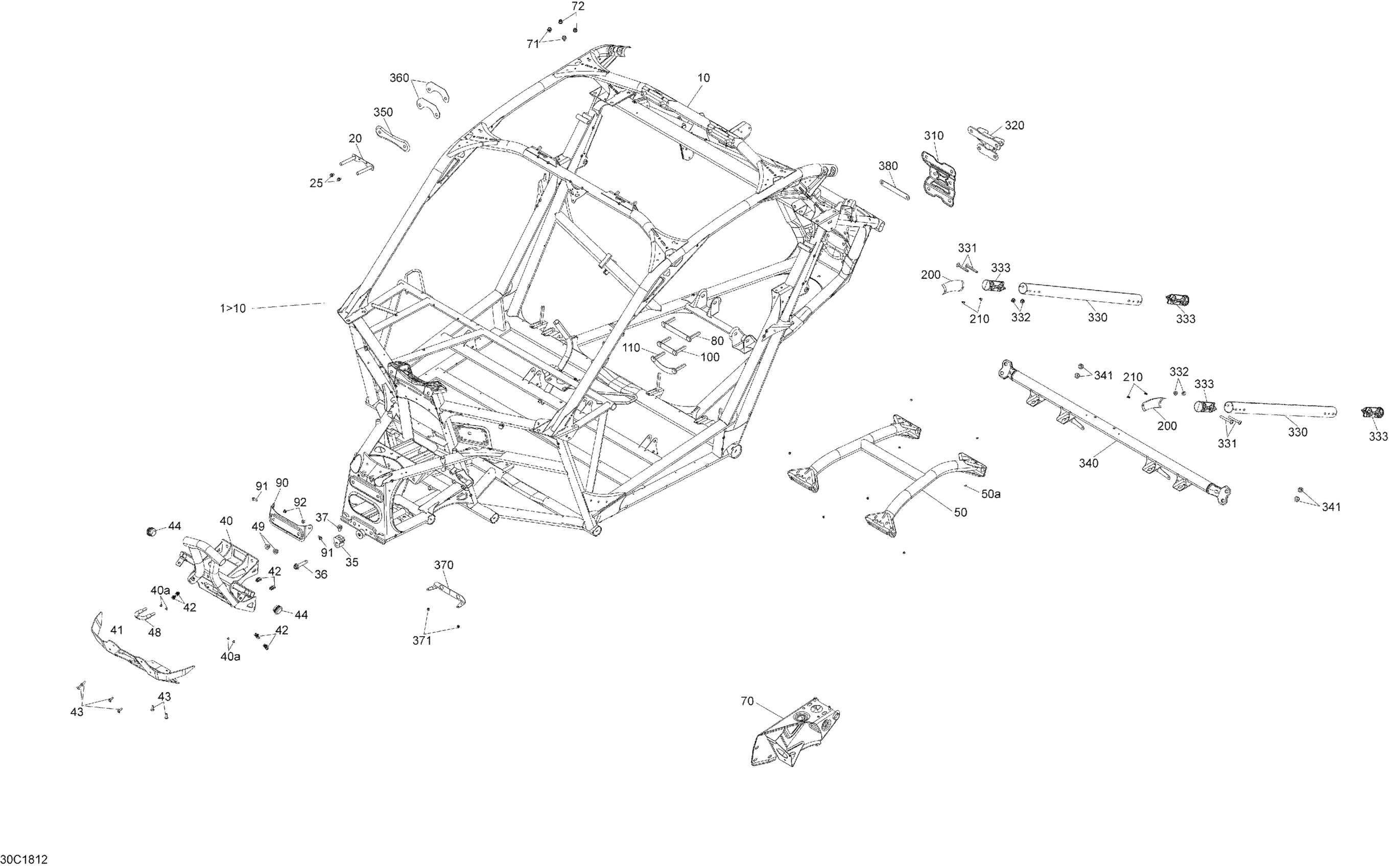

Can-Am Maverick X3 Turbo R - XMR, 2018 Frame - Package XMR Diagram

#

Description
Price

1>10

Yellow Frame Kit | Yellow Frame Model

715005029

Unavailable

10>10c

Front Yellow Cage Kit | With Yellow Cab

715005036

Unavailable

10a

Torx Screw K50 X 16

250000720

$1.39

10b

Hex. Flange Screw S.Grip M12 X 30

207523036

$6.77

10c

Hex. Flange Elastic Nut M12

233221414

$5.10

20

Front Plate

705207424

$18.43

25

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

35

Bumper Link

705206992

$15.22

36

Flange Screw M12 X 60

250000857

$6.08

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

40>40a

YELLOW FRONT XRC BUMPER KIT - Call your local BRP dealership | Includes 40 to 40a

715004741

Unavailable

40a

Pop Rivet 3/16"

390402200

$0.26

41

Front Master Plate

705206871

$198.43

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Torx Screw M6 X 20

250000722

$1.34

44

Cap

705202455

$4.62

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

U-Clamp

705206983

$36.89

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50>50a

Added Cage | Includes 50 to 50a

705206721

$159.99

50a

Pop Rivet 3/16"

390402200

$0.26

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Flange Elastic Nut M8

233281414

$1.14

80

Rear Upper Plate

705206852

$19.20

90

Stifner Plate

705206877

$28.43

91

Hex. Flange Screw M6 X 16

207661654

$1.74

92

Hex. Flange Elastic Nut M6

233261494

$1.26

100

Rear Central Plate

705211558

$17.66

110

Rear Plate

705206854

$19.20

200

Link Plate

705206651

$23.82

210

BLACK DART - Call your local BRP dealership

293730076

$0.91

310

Rear Plate

705205750

$23.82

320

Black, Rear Attachement Hook

715004450

$89.97

330

Rear C-Member

705206649

$24.99

331

Torx Truss M8 X 65

250000901

$1.56

332

Elastic Flange Nut M8

250100025

$1.25

333

Sleeve

705210648

$9.29

340

Belt Bar

705205268

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Upper Link Arm

705205294

$10.98

360

Retaining Plate

705210249

$4.86

370

Support

706203122

$11.00

371

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

380

Front Upper Plate

705206069

$13.49
