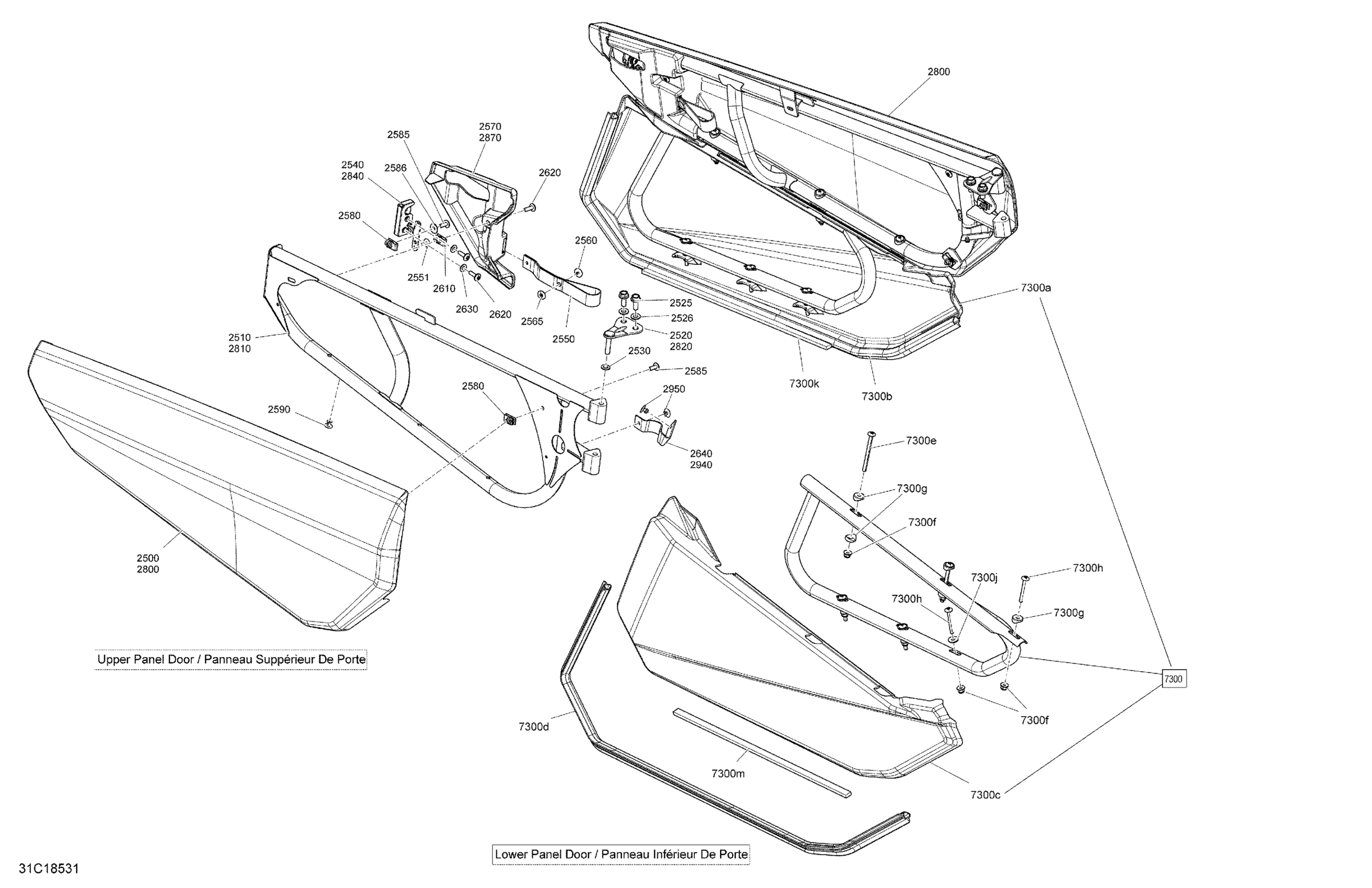

Can-Am Maverick X3 Turbo R - XMR, 2018 Body Side Part Maverick X3 Sunburst Yellow Models - Package XMR Diagram

Description

Price

2500

Carbon Black, LH Front Door Panel

705014333

$187.66

2510

Deep Black, LH Front Door

705018468

$145.35

2510

Door Fl B-354 Painted | Yellow Cage Model

705017346

$140.74

2520

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16”

293150108

$1.23

2560

Belt Stopper

293730070

$2.31

2565

Belt Stopper

293730072

$2.31

2570

LH Latch Cover

705010734

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20

250000722

$1.34

2630

Stainless Steel Flat Washer

234062670

$1.74

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2800

Carbon Black, RH Front Door Panel

705014339

$187.66

2810

Yellow, RH Door Frame | Yellow Cage Model

705012546

$215.35

2820

Door Support

705011187

$10.98

2840

RH Latch

705013096

Unavailable

2870

RH Latch Cover

705010735

$36.89

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

7300

Door Panels | Includes 7300 to 7300m

715002903

$449.97

7300a

RH Door Panels

705010272

$104.58

7300b

Door Seal

705012018

$18.43

7300c

LH Door Panels

705010271

$105.35

7300d

Door Seal

705012018

$18.43

7300e

Torx-Truss M/S M6 X 80

250000902

$2.60

7300f

Hex. Flange Elastic Nut M6

233261494

$1.26

7300g

Offset Washer

705202223

$4.98

7300h

Torx Truss Screw M6 X 50

250000749

$3.11

7300j

Stainless Steel Flat Washer

234062670

$1.74

7300k

Neoprene Seal (1PAC=3M)

219704364

$22.72

7300m

Neoprene Seal (1PAC=3M)

219704364

$22.72
