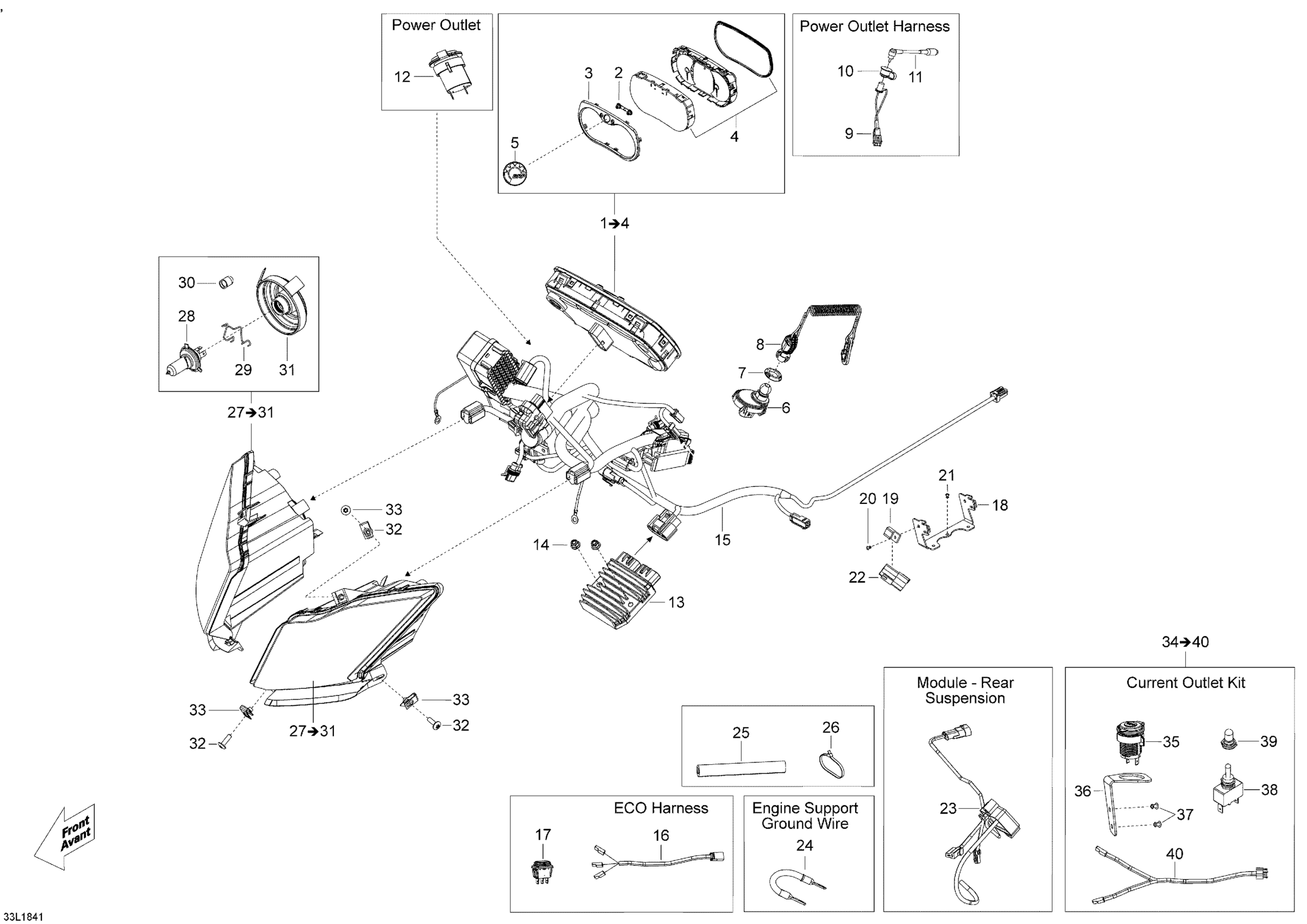

Ski-Doo EXPEDITION LE/SE 1200 4-TEC, 2018 Electrical System Diagram

#

Description
Price

1

Indicator | Except Package SWT

515177913

$519.37

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129370

$10.34

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

7

Safety Nut (DESS Switch)

278002963

$3.12

8

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

8

Key

860201162

$67.13

9

Visor Harness

515177837

$31.31

10

Cap

572103300

$9.36

11

Extension

515175851

$10.55

12

DC Outlet

710001248

$35.79

13

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

WIRING HARNESS ASSY | Includes 1 To WMS This part replaces 515178126.

515179642

Unavailable

15

WIRING HARNESS MAIN - Call your local BRP dealership

515178124

Unavailable

16

Eco Switch Wiring Harness This part replaces 515177568.

515179615

Unavailable

17

ECO Rocker Switch

515177569

$17.88

18

Fusebox Support

515178394

Unavailable

19

Clip

270000141

$9.57

20

Avdel Rivet 3/16"

293150037

$0.54

21

Pop Rivet 3/16"

390402200

$0.30

22

Connector Plug

710004904

$8.30

23

Compressor Module | With Air Suspension

515177125

$479.07

24

Ground Wire

515176883

$26.84

25

ALUMINIUM TUBE D22 - Call your local BRP dealership | Engine 1200 4-TEC

39066

Unavailable

26

Tie-Rap 180 mm

414115200

$0.10

26

Tie Wrap 94 mm | 4X4

293750001

$0.96

26

Tie Wrap 142 mm

293750002

$1.01

27

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

27

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

28

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Cap

515176498

$11.82

31

Rubber Cap Protector

219800280

$17.13

32

Torx Screw M6 X 20

250000722

$1.54

33

Panel Nut M6 X 1.0

250100198

$1.99

34

CURRENT OUTLET KIT - Call your local BRP dealership | Includes 20 to 20,007

860200285

Unavailable

35

DC Outlet

710001248

$35.79

36

CURRENT OUTLET BRACKET - Call your local BRP dealership

515176801

Unavailable

37

Rivet

36108

$1.79

38

Heat Grip Switch

410110700

$30.57

39

Switch Cover

515175281

$14.58

40

Harness

515176802

$35.79

41

Velcro

293740059

Unavailable
