Description

Price

1

FRAME XU 1203 SC-5 BLACK - Call your local BRP dealership | Includes 10 to 10ay

518329697

Unavailable

2

Module E | Includes 10a to 10m

518329827

$989.99

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler Support

518327448

$16.49

12

Rivet Hucklok

293150163

$2.99

13

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

13.1

Rear Arm Bracket

518329083

$19.49

13.2

Rear Arm Bracket

518329083

$19.49

14

Fastening rail

518326107

$18.49

15

LH Footrest

518328821

$88.99

15

RH Footrest

518328822

$88.99

16

Fastening Bracket

605355235

$56.99

17

LH Drive Axle Cover

518328016

$209.99

17

RH Drive Axle Cover

518328017

$209.99

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

19

Seat Box Bracket

518329164

$29.99

20

LH Support Tube Bracket

518329109

$44.99

20

RH Support Tube Bracket

518329110

$44.99

21

Clinch Nut plate

518326430

$44.49

22

LH Frame Corner

518325524

$56.99

22

RH Frame Corner

518328024

$52.99

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328748

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

28

Avex Rivet

390909200

$0.30

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

Rivet

293150183

$2.11

31

Gearbox Front Plate

518326123

$17.49

33

Pop Rivet 3/16"

390402200

$0.35

34

MAG Engine Support

518325371

$77.49

35

Hemlock Rivet, 6.5 mm

293150119

$4.29

36

LH Footboard Support Tube

518326963

$139.99

37

Avex Rivet

390909100

$0.30

36

RH Footboard Support Tube

518326964

$139.99

39

Black Rear Footrest

520001208

$19.99

40

Rivet 3/16"

293150102

$0.70

42

Avex Rivet

390909200

$0.30

43

Clinch Nut M6 Hexsert

605636003

$4.23

44

Black, Dart

414644300

$0.98

41

Black RH Toe Hook

518327376

$42.99

45

Hex. Flange Screw M6 x 20

207662056

$1.01

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Torx Head Screw M6 X 16

250000717

$2.11

48

Spring Bracket

514054846

$4.69

49

Avex Rivet

390909200

$0.30

50

Brace Ass'y | Includes 200 to 200a

518327392

$199.99

51

Vibration Damper

512061516

$61.99

53

Rivet This part replaces M36087.

36087

$1.04

54

Cross Member | Includes 300 to 300e

518328391

$729.99

54

Module S | Package SE

518328395

$619.99

55

Front Suspension Support

518327487

$289.99

56

Hex. Screw M6 X 14

207161444

$0.58

59

Hexagonal Head Screw

210262050

$2.11

60

Hex. Flange Screw M6 X 25

207662544

$0.64

61

Hex. Flange Screw M6 X 25

207662544

$0.64

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

63

Rivet Hucklok

293150163

$2.99

66

Hex. Flange Screw M6 X 16

207661644

$0.74

67

Pulley Support

518328434

$144.99

68

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

69

Hex. Flange Screw M8 X 35

250000986

$2.11

70

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

71

Front Member

518326970

$299.99

74

Upper Support Tube

518329105

$204.99

75

Hex. Screw M8 X 20

207182044

$0.74

76

Hex. Elastic Stop Nut M8

232581414

$0.56

77

Upper Lateral Column Support

518325114

$22.49

78

Hex. Flange Screw M6 x 20

207662056

$1.01

79

Elastic Flange Nut M6 X 1.0

233261416

$2.11

80

Center Column Support

518326657

$19.99

82

Hex. Flange Screw M6 X 25

207662556

$4.44

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

84

Adhesive Patch

518325560

$4.69

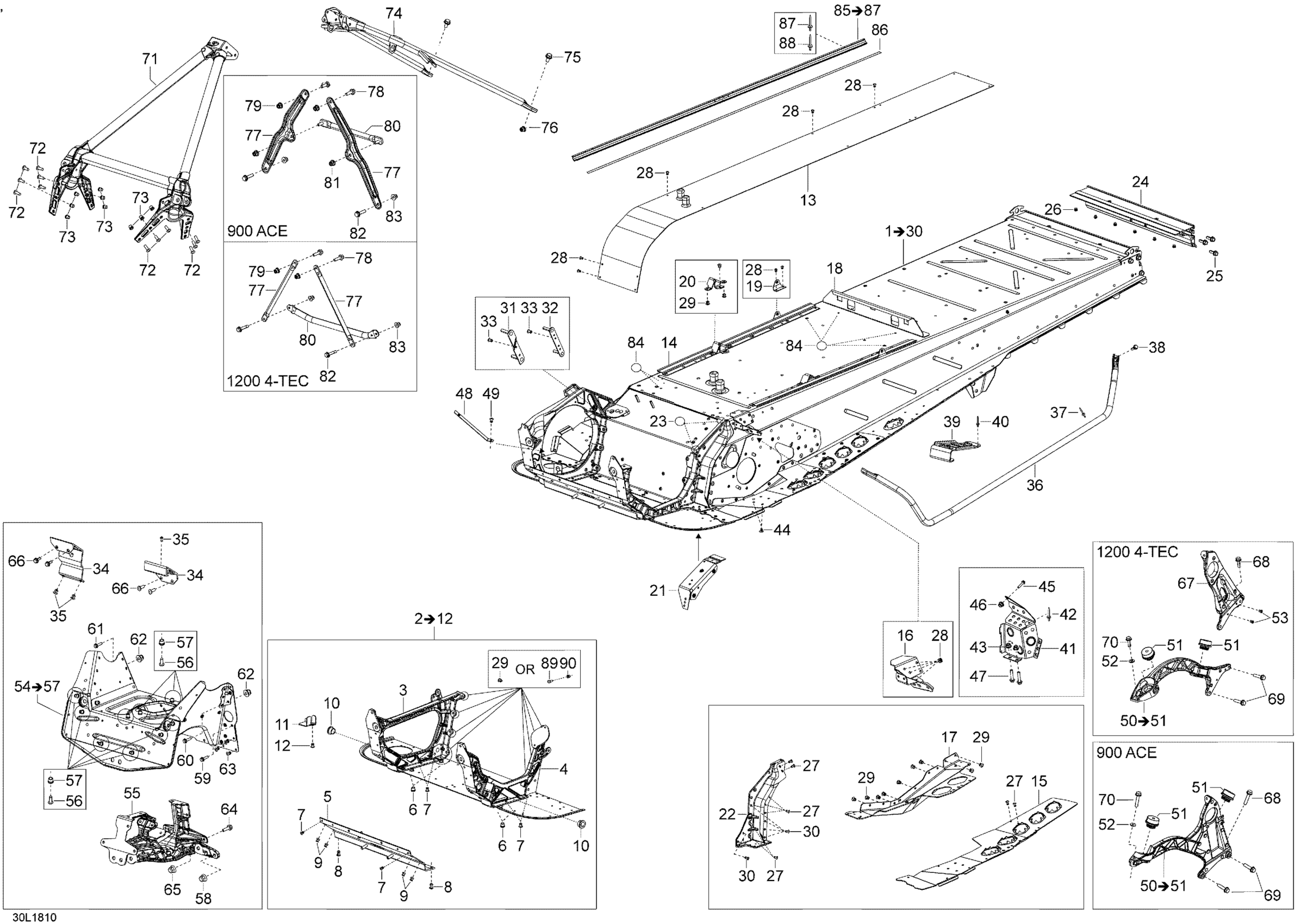

Ski-Doo 7- EXPEDITION LE/SE 1200 4-TEC, 2018 09- Frame Expedition - 1200 4-TEC Diagram

FRAME XU 1203 SC-5 BLACK - Call your local BRP dealership | Includes 10 to 10ay

Module E | Includes 10a to 10m

RH Side Member

LH Side Member

Front Member

Clinch Nut Hexsert M8

Avex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

Muffler Support

Rivet Hucklok

Tunnel Radiator | Includes 10p to 10q

Rear Arm Bracket

Rear Arm Bracket

Fastening rail

LH Footrest

RH Footrest

Fastening Bracket

LH Drive Axle Cover

RH Drive Axle Cover

BATTERY SUPPORT PLATE - Call your local BRP dealership

Seat Box Bracket

LH Support Tube Bracket

RH Support Tube Bracket

Clinch Nut plate

LH Frame Corner

RH Frame Corner

Adhesive Patch

Rear Profile

Hex. Flange Screw M8 X 25, Scotch Grip

Avex Rivet

Hemlock Rivet, 6.5 mm

Rivet

Gearbox Front Plate

Pop Rivet 3/16"

MAG Engine Support

Hemlock Rivet, 6.5 mm

LH Footboard Support Tube

Avex Rivet

RH Footboard Support Tube

Black Rear Footrest

Rivet 3/16"

Avex Rivet

Clinch Nut M6 Hexsert

Black, Dart

Black RH Toe Hook

Hex. Flange Screw M6 x 20

Hex. Flange Elastic Nut M6 x 1.0

Torx Head Screw M6 X 16

Spring Bracket

Avex Rivet

Brace Ass'y | Includes 200 to 200a

Vibration Damper

Rivet This part replaces M36087.

Cross Member | Includes 300 to 300e

Module S | Package SE

Front Suspension Support

Hex. Screw M6 X 14

Hexagonal Head Screw

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Rivet Hucklok

Hex. Flange Screw M6 X 16

Pulley Support

Hex. Flange Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 35

Hex. Flange Screw M8 X 25, Scotch Grip

Front Member

Upper Support Tube

Hex. Screw M8 X 20

Hex. Elastic Stop Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 x 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0
