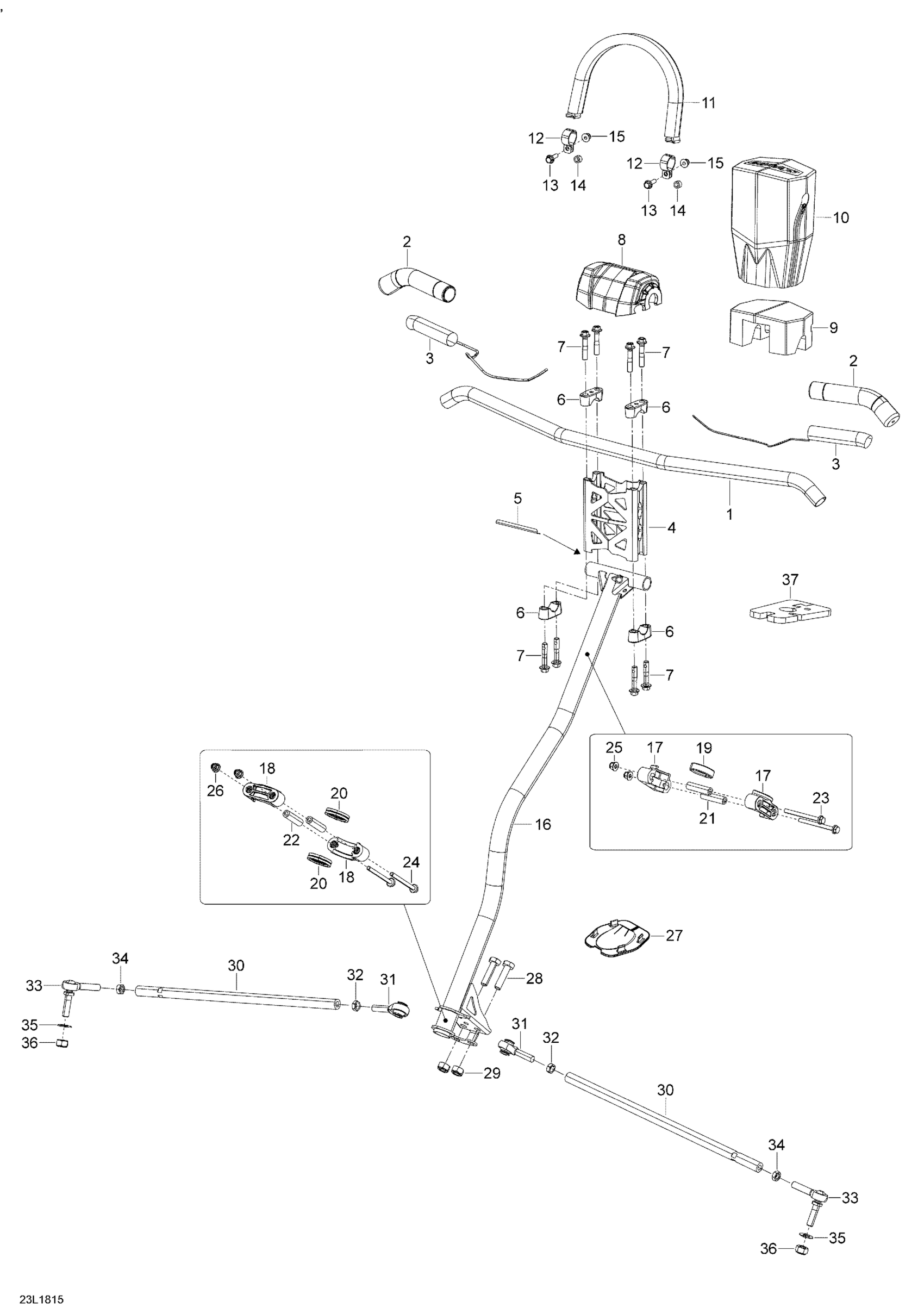

Ski-Doo 7- EXPEDITION LE/SE 1200 4-TEC, 2018 07- Steering Expedition - 1200 4-TEC Diagram

Handle Bar

506152722

$148.49

Grip | WAKE This part replaces M5340464.

506152483

$12.17

Heated Film, 25W

506152428

$39.99

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

Tilt Steering | Package SE

506152532

$275.49

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

Cushion

506152520

$15.72

Hex. Flange Elastic Nut M8

233281414

$1.47

Spring | Package SE

506152184

$10.49

Handle | Package SE

506152414

$111.49

Limiter Plate | Package SE

506152415

$88.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Hex. Flange Screw M8 x 40

250000285

$0.82

Deep Black, Steering Pad

506152541

$41.99

Foam | Package SE

506152761

$39.99

Steering Cover | Package SE

506152381

$149.99

Strap Ass'y | Package XMR

506152115

$44.49

Black Support Plate

506152536

$9.19

Hex. Flange Screw M6 X 20

207662054

$1.01

Bushing | Package XMR

506152156

$5.61

Hex. Flange Elastic Nut M6

233261494

$1.58

Steering Column

506152964

$199.99

Upper Half-Housing

506152508

$9.23

Lower Half-Housing

506152217

$7.62

Upper Anti-Vibration Gasket

506152509

$4.79

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Plate

506152163

$12.99

Hex. Screw M10 X 40

207004044

$4.76

Elastic Stop Nut M10

232500416

$1.90

Tie-Rod

506152498

$38.99

LH Thread Ball Joint

506152081

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152684

$44.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152582

$4.55

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Cushion

506152404

$26.49
