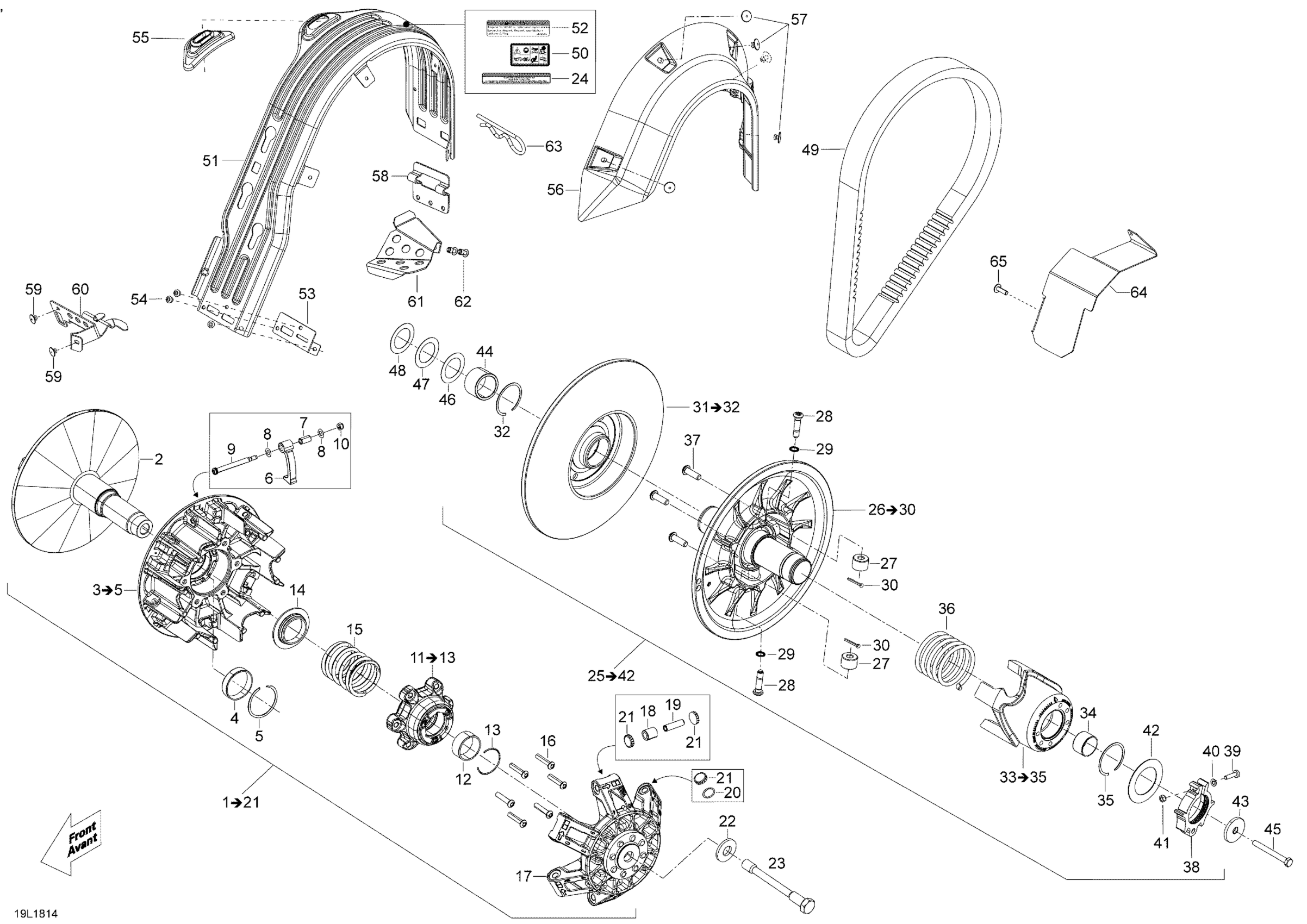

Ski-Doo EXPEDITION LE/SE 1200 4-TEC, 2018 Pulley Expedition - 1200 4-TEC Diagram

#

Description
Price

2

Fixed Flange Ass'y

417224091

$179.97

3

Flange Slide Ass'y

417224044

$198.43

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Ramp 749

417224103

$32.28

8

Stopper Washer

417223660

$3.11

9

Ramp Axle

417223694

$4.60

10

Elastic Stop Nut M5

232551414

$0.72

11

Spring Cover Ass'y

417223650

$39.97

14

Seat Spring

417223752

$13.43

15

Clutch Spring

417224085

$12.31

16

Torx Screw M6 X 30

250000580

$5.02

17

Governor Cup Ass'y

417223865

$179.97

18

Roller

417224081

$9.98

19

Roller Axle

417223257

$7.74

20

O-Ring

293300185

$0.95

21

Slider Shoe

417223919

$3.68

22

Conical Spring Washer M14

250200144

$3.63

23

Pulley Drive Bolt

417300432

$42.99

24

Decal English

516005503

Unavailable

26

Fixed Flange Ass'y

417127433

$590.74

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

33

Cam Ass'y

417127412

$164.99

36

Release Spring

417127467

$44.58

38

Calibration Ass'y

415129604

$22.49

39

Socket Screw M5 X 25

205052544

$1.34

40

Flat Washer M5

234051410

$0.44

41

Elastic Stop Nut M5

232551414

$0.72

42

Washer

417127155

$8.03

43

Strength Washer

517302322

$11.09

44

Sleeve

417300453

$16.89

45

Hex. Cap Screw M8 X 75

207287544

$4.24

46

Spacer

417300252

$5.17

47

Spacer

417300265

$2.12

48

Shim

504112000

$6.05

49

Drive Belt

417300551

$170.99

50

Warning Decal | Europe

516003919

$7.65

51

Belt Guard

417300382

$85.35

52

Security Label, Belt Guard

516006900

Unavailable

53

Reinforcement

417300380

$5.17

54

Avex Rivet

390909200

$0.29

54

Avex Rivet

390909200

$0.29

55

Guide

417300381

$9.23

56

Side Protector

417300356

$13.25

57

Pop Rivet 3/16"

293150103

$0.54

58

Belt Guard Bracket | Except Package SWT

417300363

$12.20

59

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

60

Belt Guard Bracket

417300373

$33.05

60

Brake Hose Cover | Except Package SWT

518325626

$28.43

61

Rivet Hucklok

293150163

$2.82

62

Hair Pin

114045200

$10.69

63

Air Duct | North America

417300468

$46.89

63.1

Clinch Nut M6 Hexsert

605636003

$4.12

65

Torx Screw M6 X 20

250000722

$1.34

65

Hemlock Rivet, 6.5 mm

293150096

$3.17
