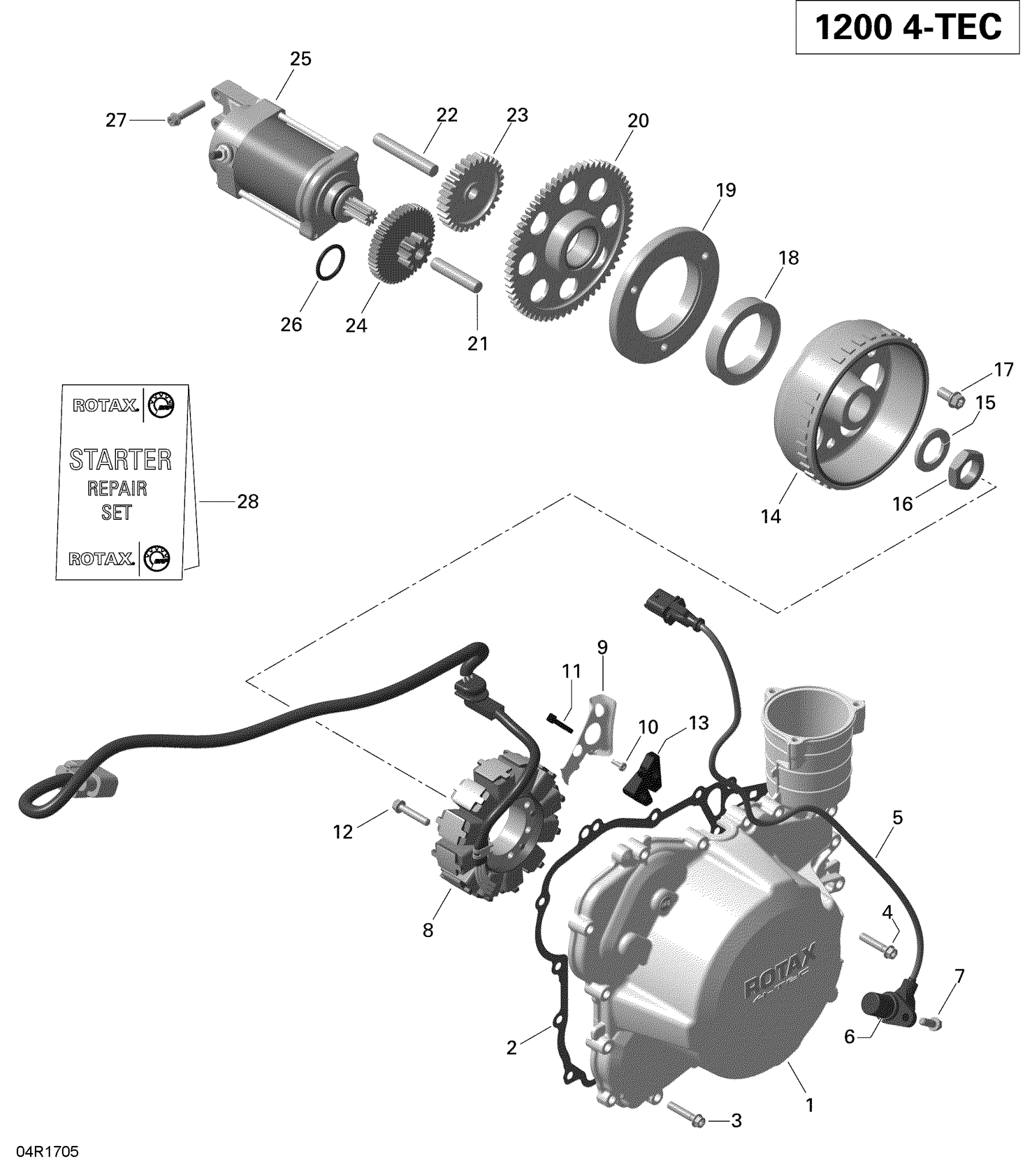

Ski-Doo 7- EXPEDITION LE/SE 1200 4-TEC, 2018 03- Magneto and Electric Starter - 1200iTC 4-TEC Diagram

#

Description
Price

1

Cover

420611833

$185.49

2

Gasket

420430750

$20.49

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Torx Flange Screw M6 X 30

420440647

$2.00

5

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

6

O-Ring

420431580

$14.83

7

Torx Flange Screw M6 X 16

420440162

$3.17

8

Stator Ass'y | Includes 8 to 11

420892378

$340.99

9

Cable Holder

420951192

$15.89

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Tie Rap

420651397

$1.01

12

FLANGED TORX SCREW M6 X 30 - Call your local BRP dealership

420440649

Unavailable

13

Spacer

420860052

$10.33

14

Magneto Flywheel

420892361

$306.49

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Torx Flange Screw M8 X 16

420440854

$4.44

18

Sprag Clutch

420659113

$259.99

19

Housing Sprag Clutch

420659266

$174.99

20

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

21

Location Pin 10 M6x50

420229302

$3.17

22

Needle Pin

420229475

$14.83

23

GEAR, 30 TEETH - Call your local BRP dealership

420634606

Unavailable

24

Starter Double Gear 11/49 T

420634741

$199.99

25

Starter Ass'y | Includes 25 to 26

420893531

$297.99

26

O-Ring

420250145

$10.33

27

Torx Flange Screw M6 X 30

420440647

$2.00

28

Carbon Brush Set This part replaces 420881140.

420881141

$67.99
