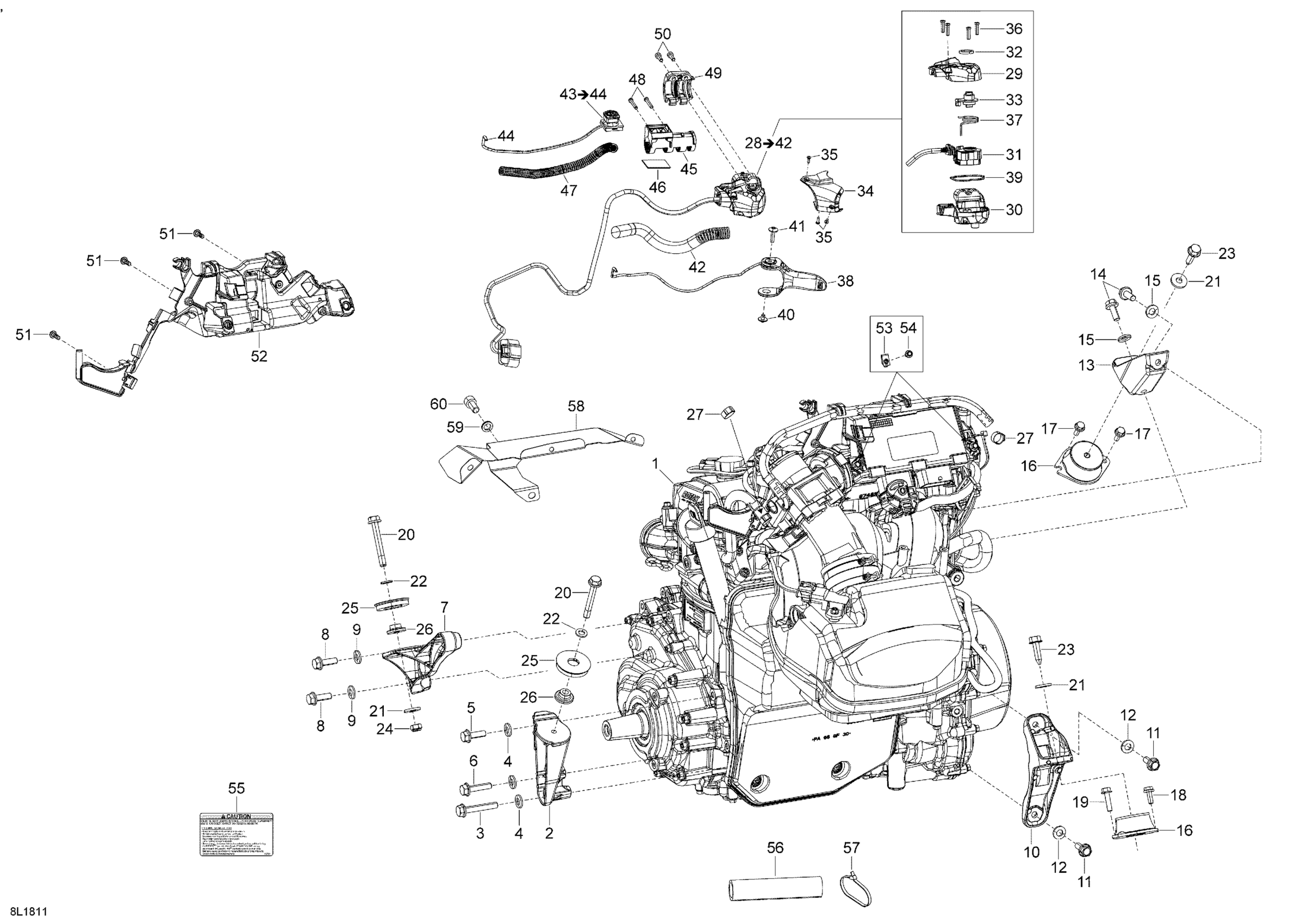

Ski-Doo EXPEDITION LE/SE 1200 4-TEC, 2018 Engine 1200 4-TEC Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support, PTO

512060591

$44.00

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.15

4

Conical Spring Washer M8

234281474

$1.43

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6

Hex. Flange Screw M8 X 35

250000986

$2.00

7

Front Support, PTO

512060593

$27.58

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

9

Conical Spring Washer M8

234281474

$1.43

10

Rear Support, MAG

512060594

$29.07

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

12

Conical Spring Washer M8

234281474

$1.43

13

Front Support, MAG

512060596

$29.07

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

15

Conical Spring Washer M8

234281474

$1.43

16

Rubber Mount

512060729

$67.88

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

21

Yellow, Washer

503183200

$2.91

22

Flat Washer With Teflon 8 mm

250200008

$3.58

23

Cone Screw, M8 X 30

250000257

$1.67

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Stopper This part replaces 512060244.

512061202

$17.88

26

Spacer

512060285

$17.13

27

Crimp Clamp, 15.3-706R

293650047

$3.03

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

29

Handle Ass'y kit

415130047

$94.00

30

Cap

512060862

$11.22

31

Torx Screw M2.9 x 9.5

250000623

$3.01

32

Torx Screw

250000671

$0.96

33

Screw

512060961

$10.21

34

Torx Screw M5 X 20

250000528

$2.00

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

45

Switch Support

512061453

$8.13

46

Friction Tape

294000973

$8.70

47

Protector Tube

515177946

$4.09

48

Torx Screw #8-18

250000263

$0.99

49

Front Housing

512060987

$8.09

50

Torx Screw M5 X 14

250000632

$7.09

51

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

52

Module Support

512061012

$14.10

53

Panel Nut M5 X 0.8

250000958

$4.00

54

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

55

Caution Decal, Oil Level

516005521

Unavailable

56

Aluminium coated fiberglass tube - Call your local BRP dealership

39065

Unavailable

57

Tie-Rap 180 mm

414115200

$0.10

58

Heat Shield

512060675

Unavailable

59

Lock Washer D10

20068

$1.91

60

Screw-socket M10 X 20

205002044

Unavailable

61

Tie-Rap 180 mm

414115200

$0.10

62

Tie-Rap 180 mm

414115200

$0.10

63

Tie-Rap 180 mm

414115200

$0.10

64

Tie Wrap 142 mm

293750002

$1.01
