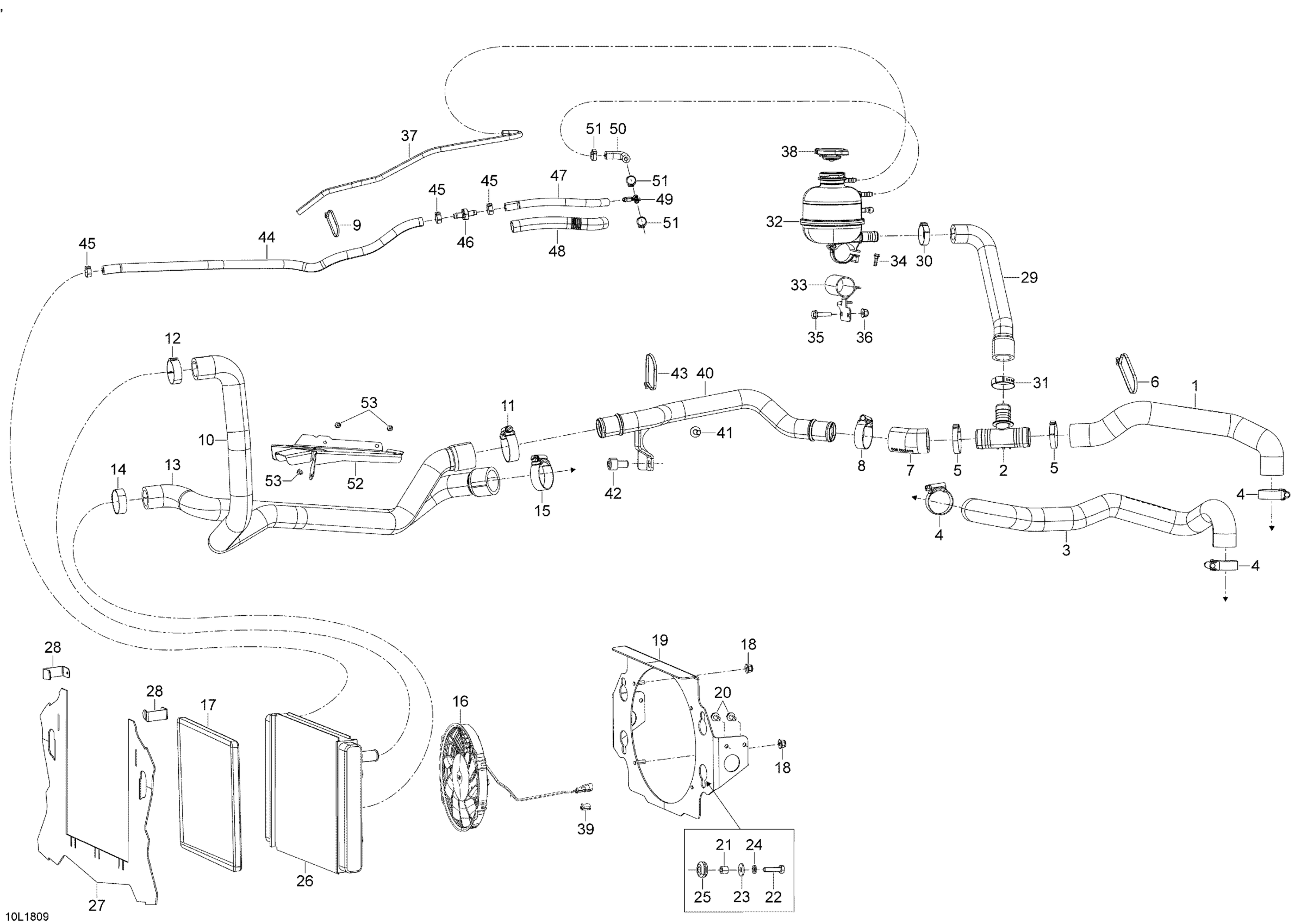

Ski-Doo EXPEDITION LE/SE 1200 4-TEC, 2018 Cooling 1200 4-TEC Diagram

#

Description
Price

1

Formed Hose

509000894

$13.58

2

T-Fitting

509000372

$7.87

3

Formed Hose

509000895

$39.97

4

Aba Gear Clamp, 26-38 MM

509000443

$5.68

5

Oetiker Gear Clamp

509000181

$3.61

6

Tie Wrap 368 mm

293750008

$0.85

7

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

8

Aba Gear Clamp, 26-38 MM

509000443

$5.68

9

Tie-Rap 180 mm

414115200

$0.09

10

Hose, Front Radiator ( Air Engine)

509000780

$36.89

11

Aba Gear Clamp, 26-38 MM

509000443

$5.68

12

Oetiker Gear Clamp

293650165

$4.32

13

Hose, Front Radiator (Engine)

509000781

$25.35

14

Oetiker Gear Clamp

293650165

$4.32

15

Aba Gear Clamp, 26-38 MM

509000443

$5.68

16

Cooling Fan

509000838

$213.05

17

Insulation

509000718

$59.20

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

60

Clinch Stud M6 X 20

250300027

$1.92

19

Radiator support | Includes 3340 to 3340a

509000791

$91.51

20

Hex. Flange Screw M6 X 40

207664044

$2.18

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Bushing

605453745

$11.52

22

Torx Screw M6 X 20

250000722

$1.34

23

Flat Washer 6 mm

234062410

$0.64

25

Grommet

709000582

$4.38

26

Radiator

509000787

$214.58

27

Air Deflector

509000700

$45.35

28

Deflector Clip

509000703

$39.97

29

Filling Hose

509000663

$59.97

60

Tubing | Not Shown

503192967

Unavailable

60

Tie Wrap 142 mm

293750002

$0.88

30

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

31

Crimp Clamp

293650099

$3.55

32

Coolant Tank

509000421

$86.89

33

Reservoir support

509000856

$18.43

34

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

35

Hex. Flange Screw M6 X 25

207662544

$0.53

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Hose 6 Mm 15000Mm Long

219704360

$104.62

38

Radiator Pressure Cap

509000180

$11.69

39

Clip

710000992

$4.00

40

Water Pipe Aluminum

509000724

$152.28

41

Torx Head Screw M6 X 16

250000717

$1.74

42

Socket Screw M10 X 16

205501644

$3.38

43

Tie-Rap 180 mm

414115200

$0.09

60

Tie-Rap 180 mm

414115200

$0.09

44

Was 509000407 Hose 8 mm

219704420

$40.27

45

Oetiker Clamp

293650140

$2.15

46

Check Valve

509000153

$16.89

47

Hose-formed

509001069

$13.58

48

Tubing 16 Mm 1000Mm Long

219704408

$6.23

49

Y-Fitting

293710140

$7.31

50

Hose

509001070

$11.52

60

Tie-Rap 180 mm

414115200

$0.09

51

Oetiker Clamp

293650046

$2.33

52

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

53

Avex Rivet

390909200

$0.29
