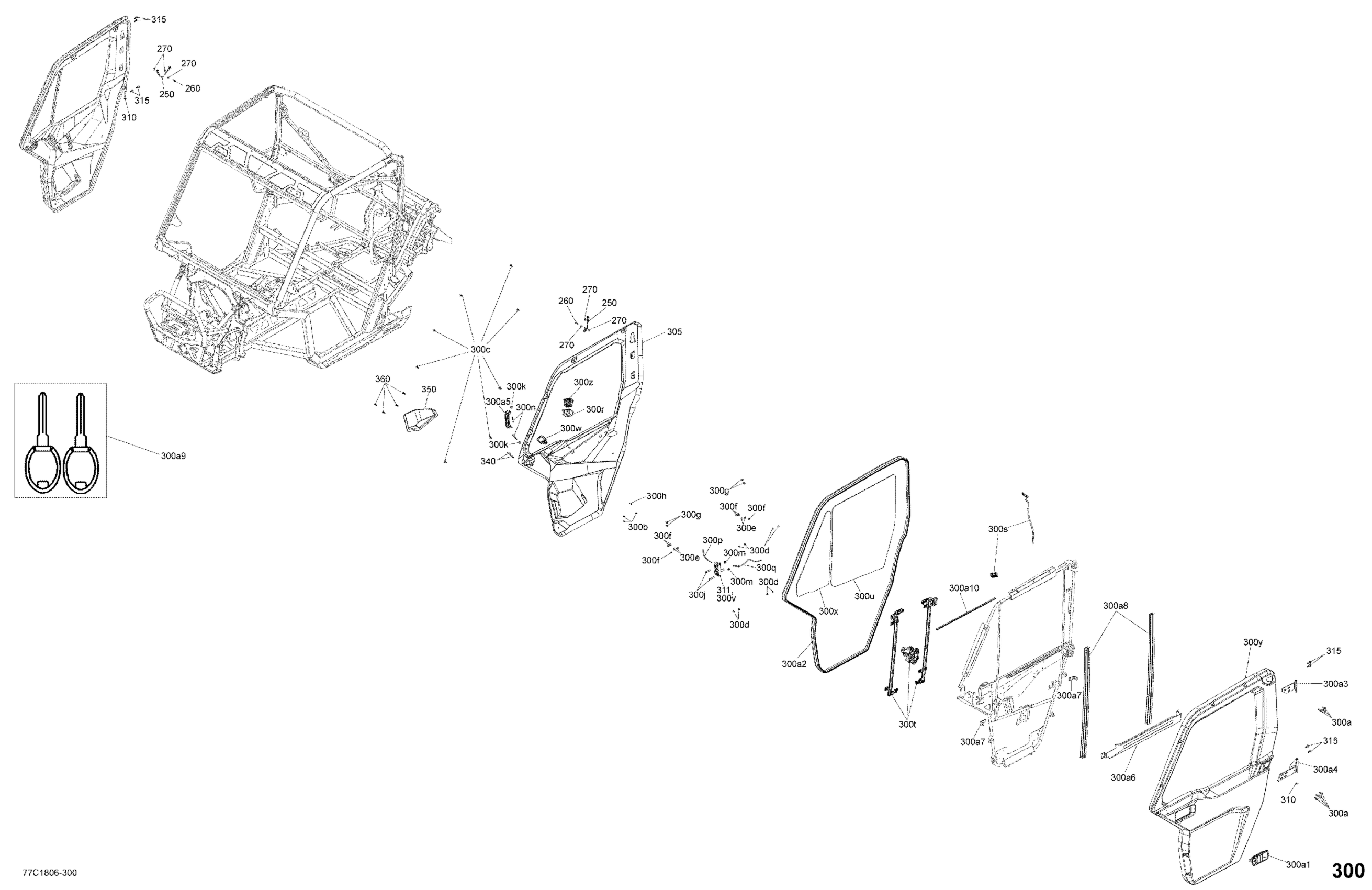

Can-Am Defender MAX HD10, 2018 Cab Interior - Doors Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$17.88

260

Torx Screw M6 X 20

250000722

$1.54

270

Stainless Steel Flat Washer

234062670

$2.00

300

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

Unavailable

300

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

Unavailable

300a

Torx Truss M8 X 25

250000874

$2.00

300b

Socket Head Screw M5 X 10

205951046

$2.31

300c

Black, Dart

293730011

$0.91

300d

Socket Screw M6 X 8

205460860

$0.53

300e

Stainless Steel Flat Washer

234062670

$2.00

300f

Torx-truss M/s M6 X 10

250000995

$4.15

300g

Torx Truss M6X14

250000789

$5.06

300h

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.00

300j

Socket Head Screw M8 X 40

205484060

$3.88

300k

Hex. Flange Elastic Nut M6

233261494

$1.45

300m

Elastic Flange Nut M8

233281466

$0.96

300n

Hex. Flange Screw M6 X 20

207662044

$1.91

300p

LH Latch Cable 2.4''

715900493

$56.99

300p

RH Latch Cable 2.9''

715900494

$56.99

300q

Interior Latch Cable 28''

715900504

$88.78

300r

LH Power Window Switch Housing

715900526

$12.66

300r

RH Power Window Switch Housing

715900527

$19.37

300s

Driver Door Harness

705800047

$211.91

300s

Passenger Door Harness

705800050

$226.84

300t

LH Window Actuator

705800046

$653.70

300t

RH Window Actuator

705800051

$653.70

300u

LH Roll-Down Glass

705800016

$559.99

300u

RH Roll-Down Glass

705800025

$559.99

300v

LH Interior Latch Kit

703500915

$185.79

300v

RH Interior Latch Kit

703500916

$185.79

300w

LH Interior Latch Kit

703500915

$185.79

300w

RH Interior Latch Kit

703500916

$185.79

300x

A-Pillar Glass LH

705800044

$310.42

300x

A-Pillar Glass RH

705800052

$310.42

300y

Lh Door Outer Panel

705800407

$1,166.39

300y

Rh Door Outer Panel

705800408

$1,166.39

300z

Window Switch

710004979

$35.60

300z

Window Switch

710004979

$35.60

300a1

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$241.01

300a2

Seal 705800290 - 5000 MM

705800289

$204.45

300a3

LH Hinge Kit

703500917

$265.64

300a3

RH Hinge Kit

703500918

$257.43

300a4

LH Hinge Kit

703500917

$265.64

300a4

RH Hinge Kit

703500918

$257.43

300a5

LH Interior Handle

705800324

$105.19

300a5

RH Interior Handle

705800325

$105.19

300a6

Door Frame Bracket Lh

705800411

$165.64

300a6

RH Door Frame Bracket

705800149

$165.64

300a7

Window Guide Bracket

705800150

$63.40

300a8

Window Guide Extrusion

705800590

$155.19

300a9

Key Set

705800184

$23.10

300a10

Flocked Beltline Trim 705800294 - 600 MM

705800293

$44.00

305

LH Door Panel Kit

715006687

$203.70

305

Door Panel Kit RH

715003568

$203.70

310

Retaining Ring

293370125

$1.91

311

LH Interior Latch Kit

703500915

$185.79

311

RH Interior Latch Kit

703500916

$185.79

315

Torx Truss M8 X 25

250000874

$2.00

340

Torx Truss M8 X 25

250000874

$2.00

350

Door Pocket Lh

705800413

$164.15

350

RH Door Pocket

705800605

$164.15

360

Plastic Dart

705009405

$1.73
