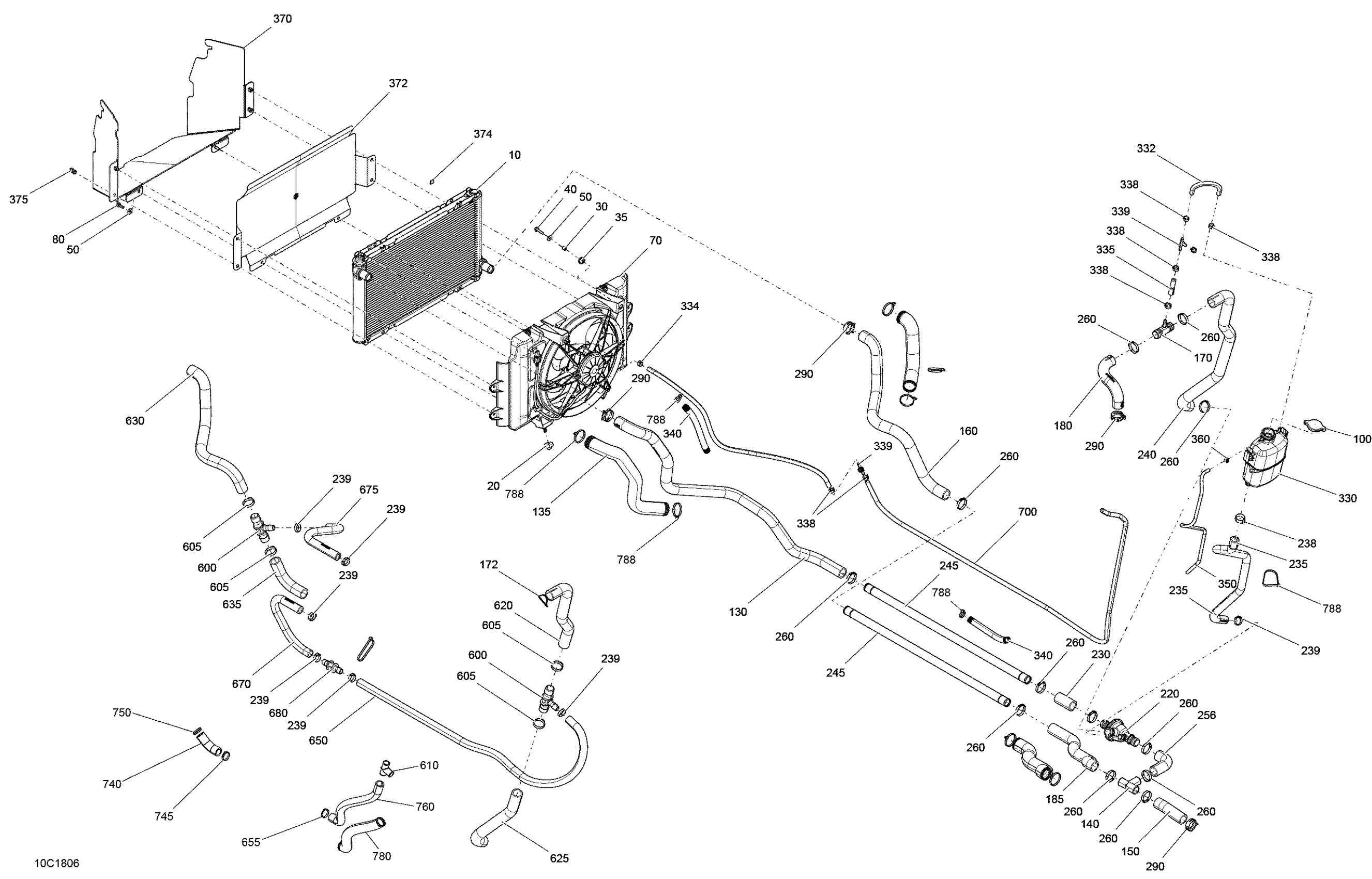

Can-Am Defender MAX HD10, 2018 Cooling Defender Package CAB Diagram

#

Description
Price

10

Radiator

709200951

$346.24

20

Grommet

709200285

$8.13

30

Bushing

293900105

$6.07

35

Grommet

709000582

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.61

50

Flat Washer 6 mm

234062410

$0.73

70

Fan Ass'y

709200534

$305.19

80

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Flat Washer 6 mm

234062410

$0.73

100

Radiator Pressure Cap

709200207

$21.61

130

Radiator Inlet Hose

709200537

$57.43

135

Tubing 35 MM 1000MM Long

219704428

$9.84

140

T-Fitting

509000219

$14.90

150

Pump Hose

709200545

$8.06

160

Tubing 35 MM 1000MM Long

219704428

$9.84

170

T-Fitting

509000510

$11.18

180

Hose Engine Out

709200915

$38.03

185

Hose Engine In

709200916

$38.03

220

Thermostat Housing

709200581

$91.76

230

Hose

709200299

$6.69

235

Hose Coolant Tank Out

709200918

$30.57

238

Oetiker Gear Clamp

293650165

$4.96

239

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

245

Heater Tubing

709200657

$13.58

245

Heater Tubing

709200658

$13.58

256

Thermostat Hose

709200913

$15.64

260

Gear Clamp

509000162

$4.90

290

Norma Spring Clamp

293650166

$4.15

330

Coolant Tank

709201323

$72.36

332

Was 415129508 Bleeder Hose

219704416

$11.48

334

Oetiker Gear Clamp

293650025

$2.82

335

Bleeding Hose

709200606

$18.63

338

Crimp Clamp, 15.3-706R

293650047

$3.03

339

Y-Fitting

293710059

$9.40

340

Tubing 16 Mm 1000Mm Long

219704408

$7.15

350

Polyurethane Hose 10000Mm Long

219704410

$52.96

360

Spring Clamp

414554800

$0.81

370

Deflector

705012573

$54.45

372

Protective Grille This part replaces 708200609.

708201442

$124.99

374

Clip | Europe Models

517306751

$1.91

375

Tuflok Plastic Rivet

293150230

$1.39

380

Hex. Flange Screw M6 X 20

207662044

$1.91

385

Flat Washer 6 mm

234062410

$0.73

600

T Fitting | Package Cab

509000995

$11.57

605

Gear Clamp

509000162

$4.90

610

T-Fitting

509000219

$14.90

620

Thermostat Inlet Hose | Package Cab

709200611

$32.81

625

Thermostat Inlet Hose

709200817

$32.81

630

Hose-Outlet | Package Cab

709200807

$32.06

635

Radiator Outlet Hose | Package Cab

709200614

Unavailable

650

Heater Tubing

709200657

$13.58

650

Heater Tubing

709200658

$13.58

655

Gear Clamp

509000162

$4.90

660

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

670

Hose

709200745

Unavailable

675

Outlet Hose | Package Cab

709200621

$35.79

680

Fitting

509001108

$16.39

690

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

700

Was 415129508 Bleeder Hose

219704416

$11.48

720

Y-Fitting

293710059

$9.40

730

Crimp Clamp, 15.3-706R

293650047

$3.03

740

Pump Hose

709200741

$38.03

745

Gear Clamp

509000162

$4.90

750

Gear Clamp

509000162

$4.90

760

Hose

709200740

$14.90

780

Tubing 35 MM 1000MM Long

219704428

$9.84

788

Tie Wrap 94 mm | 4X4

293750001

$0.96

788

Tie Wrap 368 mm

293750008

$0.97

788

Tie-Rap 180 mm

414115200

$0.10
