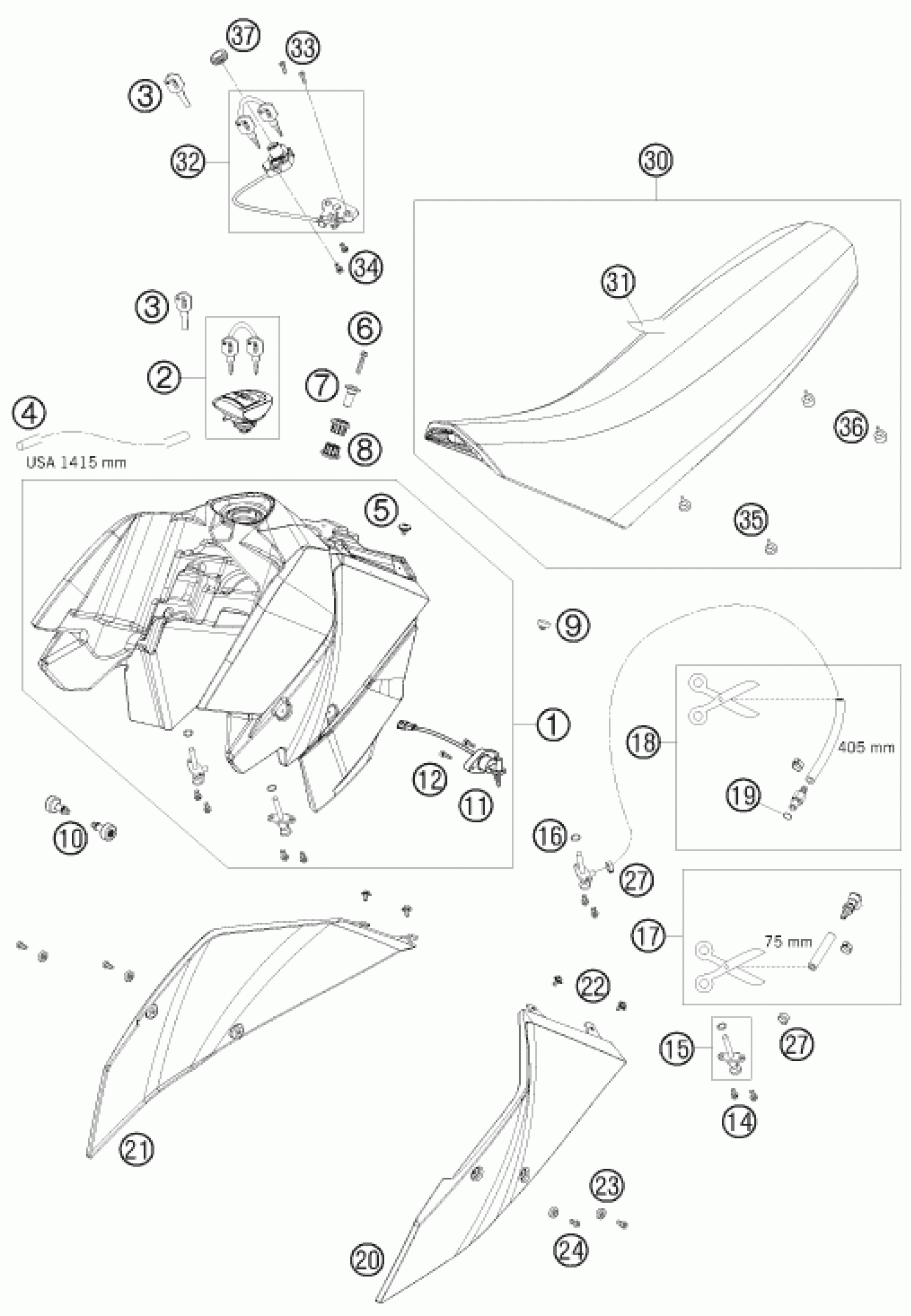

KTM 690 SUPERMOTO R 2008 TANK, SEAT Diagram

#

Description
Price

23

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

24

AH SCREW DIN6912 M6X12

0012060123

$2.05

27

VARIABLE ONE-EAR CLAMP 14,2 MM

00050142706

$3.08

30

SEAT BLACK/ORANGE 08

7500704000004

$121.17

31

SEAT COVER LOW BL/OR 08

7500704008004

$34.33

32

SEAT LOCK 05

62507050000

$56.29

33

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

$1.49

34

HH collar screw M5x12 TX30

0025050126

$3.08

35

SEAT RUBBER 6 MM

75007046020

$3.08

36

SEAT RUBBER 10 MM

75007046010

$3.08

37

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08

14

HH collar screw M6x12 TX30

0025060126

$3.08

15

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

16

O-RING 11X1,8 NBR 70

55007006200

$2.05

17

FUEL HOSE WITH CLUTCH

75007116060

$54.78

18

FUEL HOSE WITH CLUTCH

75007016050

$61.05

19

O-ring VITON f. plug CPC 0

58507012000

$6.26

20

SPOILER L/S+DECAL BL. MET 08

7500805000040A

$224.04

21

SPOILER R/S+DECAL BL. MET 08

7500805100040A

$242.35

22

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

1

FUEL TANK BLACK CPL. 07

7500701304433A

$714.27

2

TANK PLUG 06

58407008200

$106.86

3

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

4

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

5

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

7

BEARING BUSHING OUTSIDE 03

60007060000

$11.12

8

TANK RUBBER BUSHING 03

60007065000

$7.28

9

RUBBER BUFFER

54308042000

$3.08

10

SPECIAL SCREW M8 06

62507026100

$19.81

11

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

12

AH collar screw DIN 912 M5x16

0912050163

$1.49
