Description

Price

1

MONOSHOCK SM-PRESTIGE 08

15187D08

Unavailable

2

SCREW M 10 L=53MM 07

75004016000

$4.11

4

SPRING 220 65N/MM (61)

91110008S

Unavailable

5

COUNTERNUT

46180445

$26.14

6

ADJUSTING NUT

46180444

$64.15

7

Spring retainer 28x73x15

46180396

$61.42

8

REPAIR KIT GASKET 05

R15004

$58.90

9

REPAIR KIT BEARINGS 07

R15006

$100.65

10

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

11

MONOSHOCK LOWER PART CPL. 07

46180520S1

Unavailable

12

MONOSHOCK CASE TOP 07

46180442S1

Unavailable

13

HS cylinder-head screw R1/8 l8

50180095

$2.42

15

Round-wire snap ring 49x1,5

46810010

$3.08

3

DCC-COMPR.DAMP.CONTROL CPL. 07

46180533S

$194.88

4

SPRING 220 60N/MM (61)

91110010S

Unavailable

4

SPRING 220 70N/MM (61)

91110011S

Unavailable

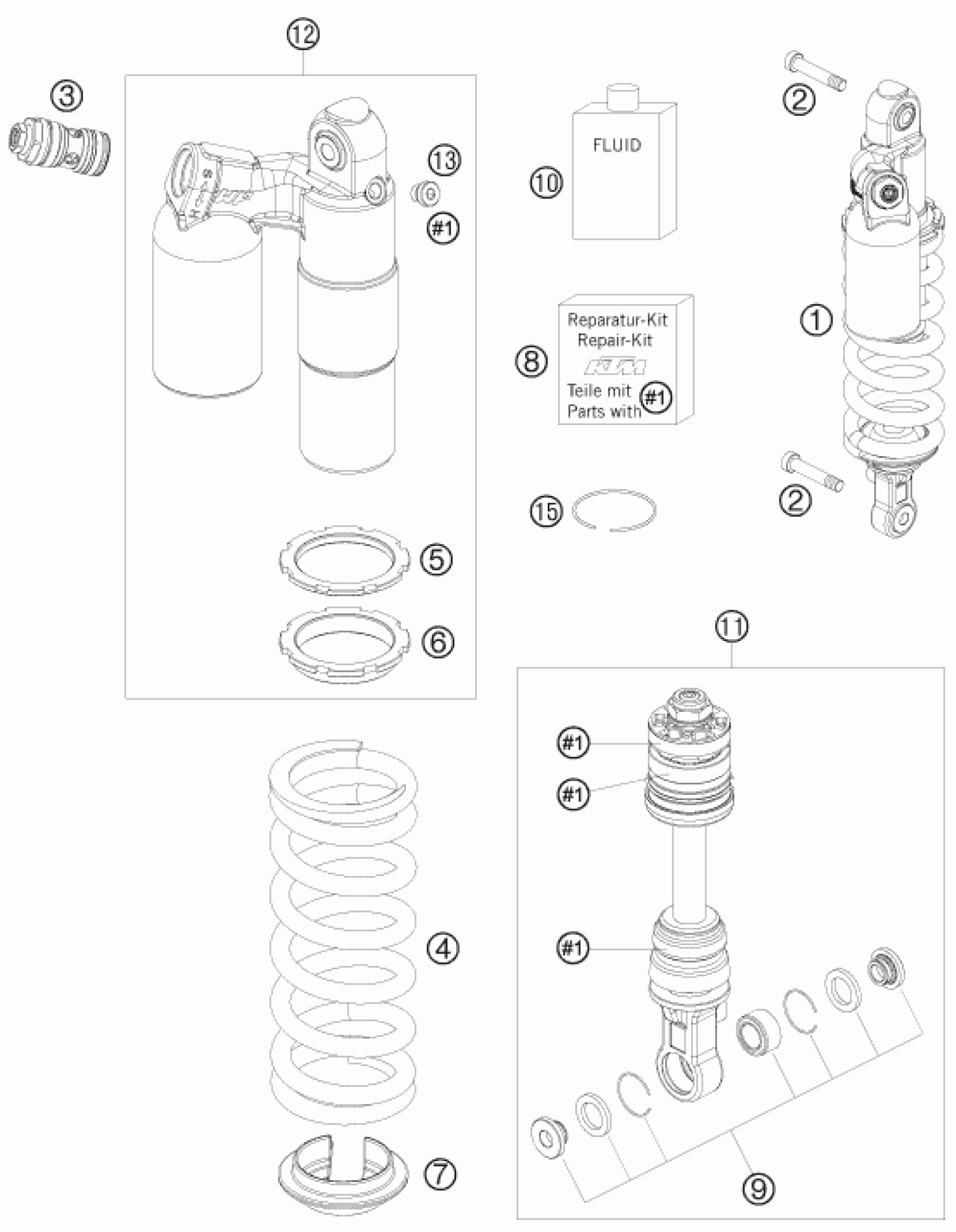

KTM 690 SUPERMOTO R 2008 SHOCK ABSORBER Diagram

MONOSHOCK SM-PRESTIGE 08

SCREW M 10 L=53MM 07

SPRING 220 65N/MM (61)

COUNTERNUT

ADJUSTING NUT

Spring retainer 28x73x15

REPAIR KIT GASKET 05

REPAIR KIT BEARINGS 07

SHOCK ABSORBER FLUID 5 LT '03

MONOSHOCK LOWER PART CPL. 07

MONOSHOCK CASE TOP 07

HS cylinder-head screw R1/8 l8

Round-wire snap ring 49x1,5

DCC-COMPR.DAMP.CONTROL CPL. 07

SPRING 220 60N/MM (61)

SPRING 220 70N/MM (61)
