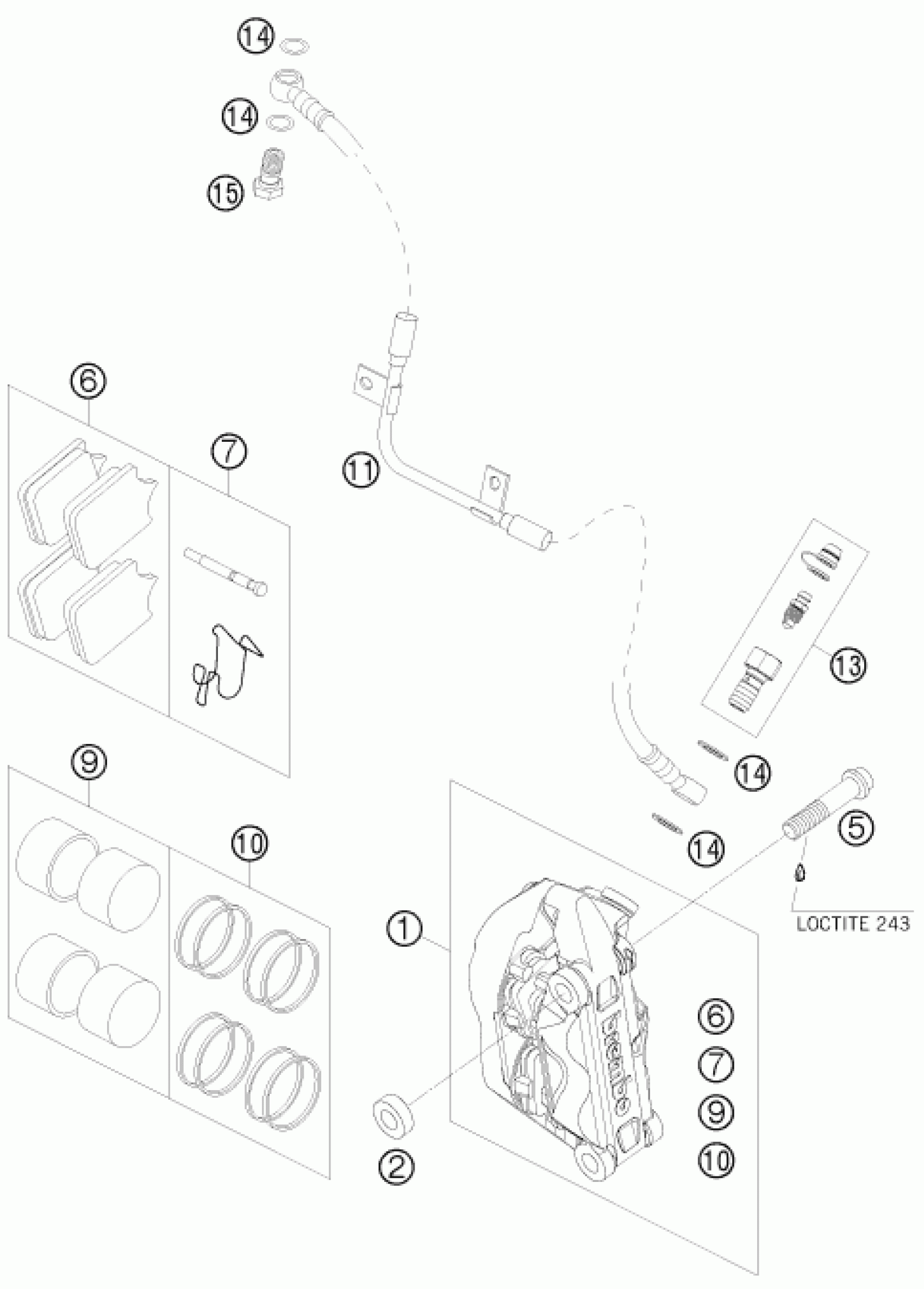

KTM 690 SUPERMOTO R 2008 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER RAD. L/S BLK07

6251311500030

Unavailable

2

SPACER BUSH 10,1X20X7,5 07

6111302200001

Unavailable

5

AH collar screw M10x1.25x65 s-

0035100659

Unavailable

6

BRAKE PAD FR. HAWK 7342-49

61013030100

Unavailable

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

Unavailable

9

BRAKE PISTONS 4X

61013019000

Unavailable

10

REP.KIT SEALING RINGS 4X

61013019100

Unavailable

11

BRAKE PIPE FRONT CPL. 07

75613012000

Unavailable

13

BLEEDER SCREW CPL. 05

62513020000

Unavailable

14

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

15

banjo bolt M10x1x19 black

54813020100

Unavailable
