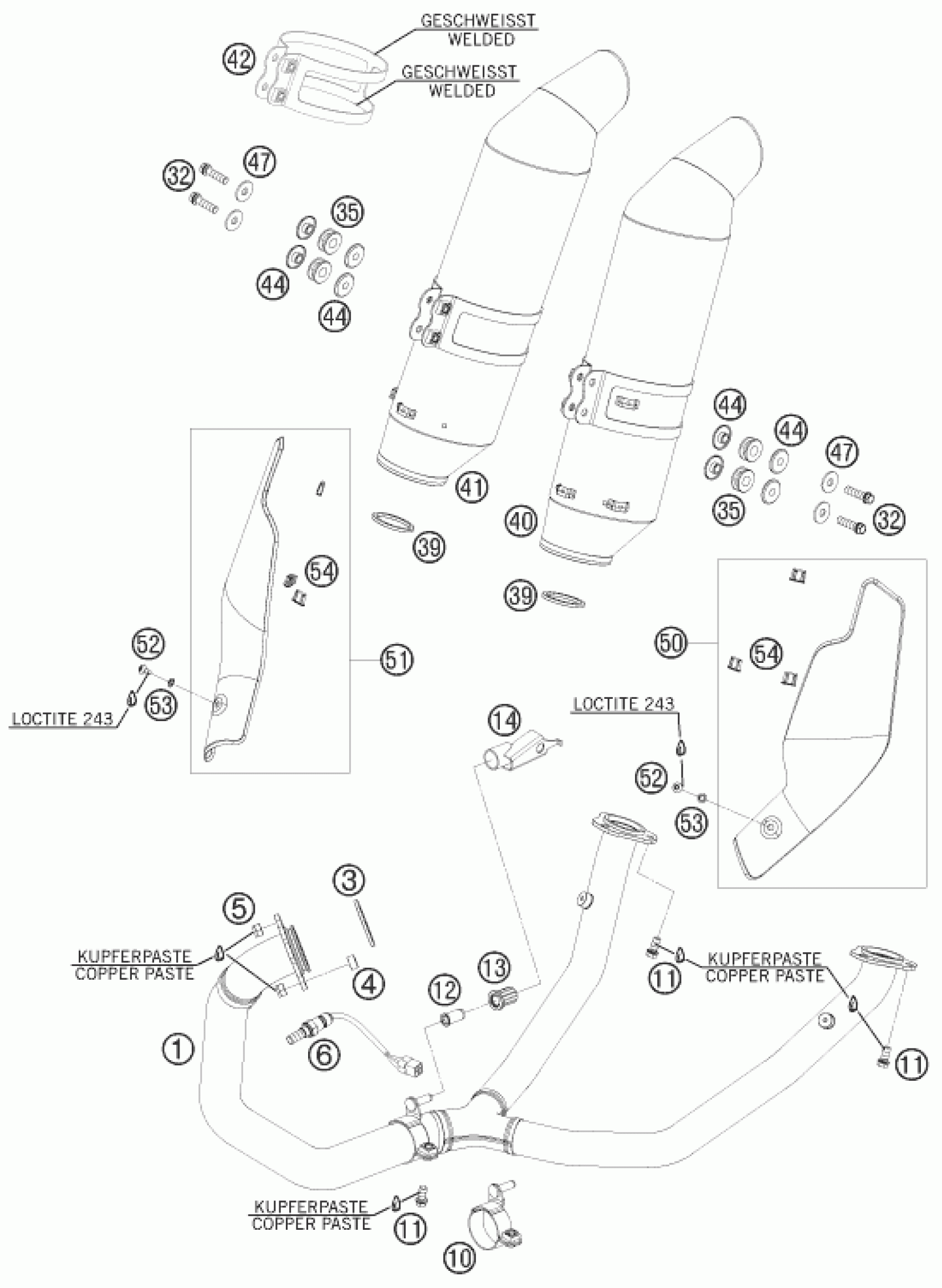

KTM 690 SUPERMOTO R 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST MANIFOLD 07

75005007000

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

5

self-locking nut M8 Cu

51010086100

Unavailable

6

LAMBDA SENSOR 07

75041090000

Unavailable

10

BRACKET CPL. 07

75005007020

Unavailable

11

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

12

Sleeve silencer support

61005014000

Unavailable

13

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

14

BRACKET FOR MANIFOLD 08

75005014100

Unavailable

32

HH collar screw M8x30

0025080306

Unavailable

35

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

39

EXHAUST GASKET 03

60005005002

Unavailable

40

SILENCER L/S SM-USA 07

75005183100

Unavailable

41

SILENCER R/S SM-USA 07

75005183000

Unavailable

42

CLAMP MAIN SILENCER CPL. 07

75005095000

Unavailable

44

BUSHING 8MM F. EXHAUST SUPPORT

54605069100

Unavailable

47

WASHER DIN9021-A 8,4

0021080003

Unavailable

50

THERMAL SHIELD L/S 08

7500511100033

Unavailable

51

THERMAL SHIELD R/S 08

7500501100033

Unavailable

52

SCREW TORX M5X10 05

58605083010

Unavailable

53

TOOTH LOCK WASHER DIN6797-J

0797050000

Unavailable

54

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable
