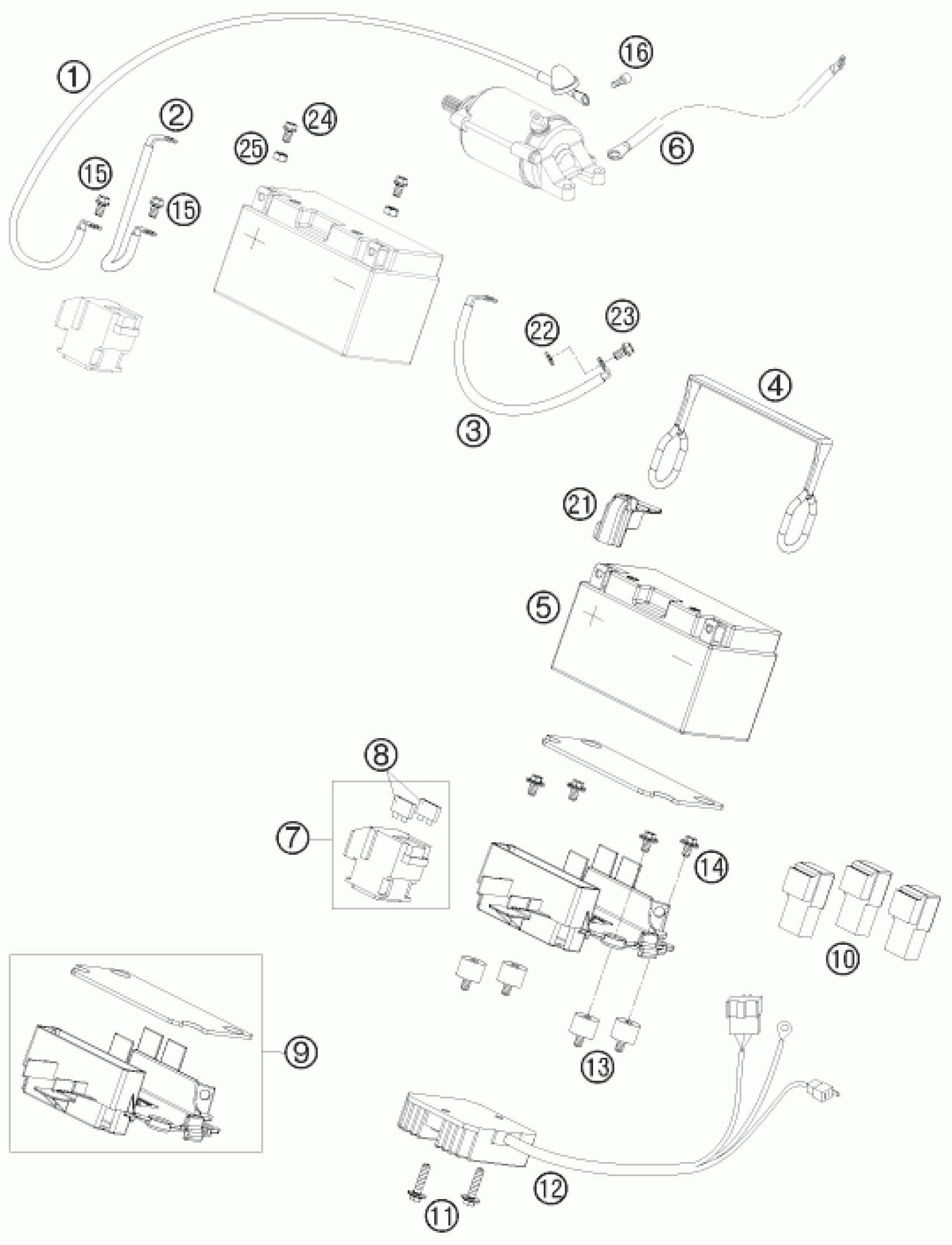

KTM 690 SUPERMOTO R 2008 BATTERY Diagram

#

Description
Price

16

SHCS DIN 912 M5x8

0912050083

Unavailable

1

STARTER CABLE 07

75011059000

Unavailable

2

BATTERY CABLE 07

75011059050

Unavailable

3

GROUND CABLE 07

75011097000

Unavailable

4

BRACKET RUBBER FOR BATTERY 07

75011056000

Unavailable

5

BATTERY 12V 8,6AH 03

58411053100

Unavailable

7

STARTER RELAY 03

60011058000

Unavailable

8

Plug-in fuse, big 30A

58011109130

Unavailable

9

BATTERY BRACKET CPL. 07

75011054033

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

11

COLLAR SCREW M6X27 TX

0024060273

Unavailable

12

VOLTAGE REGULATOR

60011034100

Unavailable

13

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

15

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

21

POSITIVE POLE COVER 07

75011059060

Unavailable

22

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

23

HH collar screw M6x16 TX30

0025060166

Unavailable

24

HH collar screw M6x10 TX30

0025060106

Unavailable

25

Hex. nut DIN 934 M6

0934060003

Unavailable

6

GROUND CABLE L=450MM 05

61011097000

Unavailable
