Description

Price

52

Washer DIN9021-A 6.4

0021060003

$2.05

1

HEAD LIGHT TITANIUM 07

7500800100059A

Unavailable

2

clip nut M6

54603048100

$4.11

3

rubber grommet D=8mm open

31008060000

$2.05

4

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

5

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

9

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

10

REAR FENDER BLACK MATT 07

7500801300033

$74.60

11

SIDE COVER L/S+DECAL TITAN. 07

7500804100059A

Unavailable

12

SIDE COVER R/S+DECAL TITAN. 07

7500804200059A

Unavailable

13

RANGE CHANGE METAL NUT M5

54603048200

$5.23

14

Washer tail section UT D=14mm

75008023000

$3.08

15

Oval head screw M5x14 TX25

58605083014

$3.08

16

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

17

STORAGE COMPARTMENT

75003075000

Unavailable

18

RUBBER L=145MM

50303018000

$6.44

20

MUD FLAP 07

75004050000

$15.14

21

BUCKET

72210079000

$3.00

22

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

30

HAND GRIP L/S 07

75012008000

$7.28

31

HAND GRIP R/S 07

75012009000

$7.75

34

SCREW FOR PLASTIC 50X12

0016050121

$2.05

35

FLAT HEAD SCREW ISO10642 M8X60

0991080603

$2.05

36

SPACER SUB FRAME FRONT L/S

75003065000

$2.05

37

SPACER SUB FRAME FRONT R/S

75003066000

$2.05

38

SPACER SUB FRAME REAR L/S

75003067000

$1.49

40

NUMBER PLATE CARRIER TOP 07

75008015010

$10.10

58

REFLECTOR RED

58412080000

$5.23

59

BRACKET FOR REFLECTOR

58412080050

$6.07

62

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

63

SIDE REFLECTOR RED REAR

16512180100

$7.10

55

WASHER 6MM

40006006000

$1.49

53

Self lock. nut DIN985-M6-A2

0985060003

$2.05

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

56

WASHER DIN0125-A 5,3

0125050003

$1.49

57

Self locking nut DIN 985 M5

0985050003

$2.05

39

SPACER SUB FRAME REAR R/S

75003068000

$2.05

41

NUMBER PLATE CARRIER 07

75008015000

$13.94

42

Washer DIN9021-A 6.4

0021060003

$2.05

43

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

44

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

45

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

46

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

50

license plate mouning plate

60012081200

$8.41

51

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

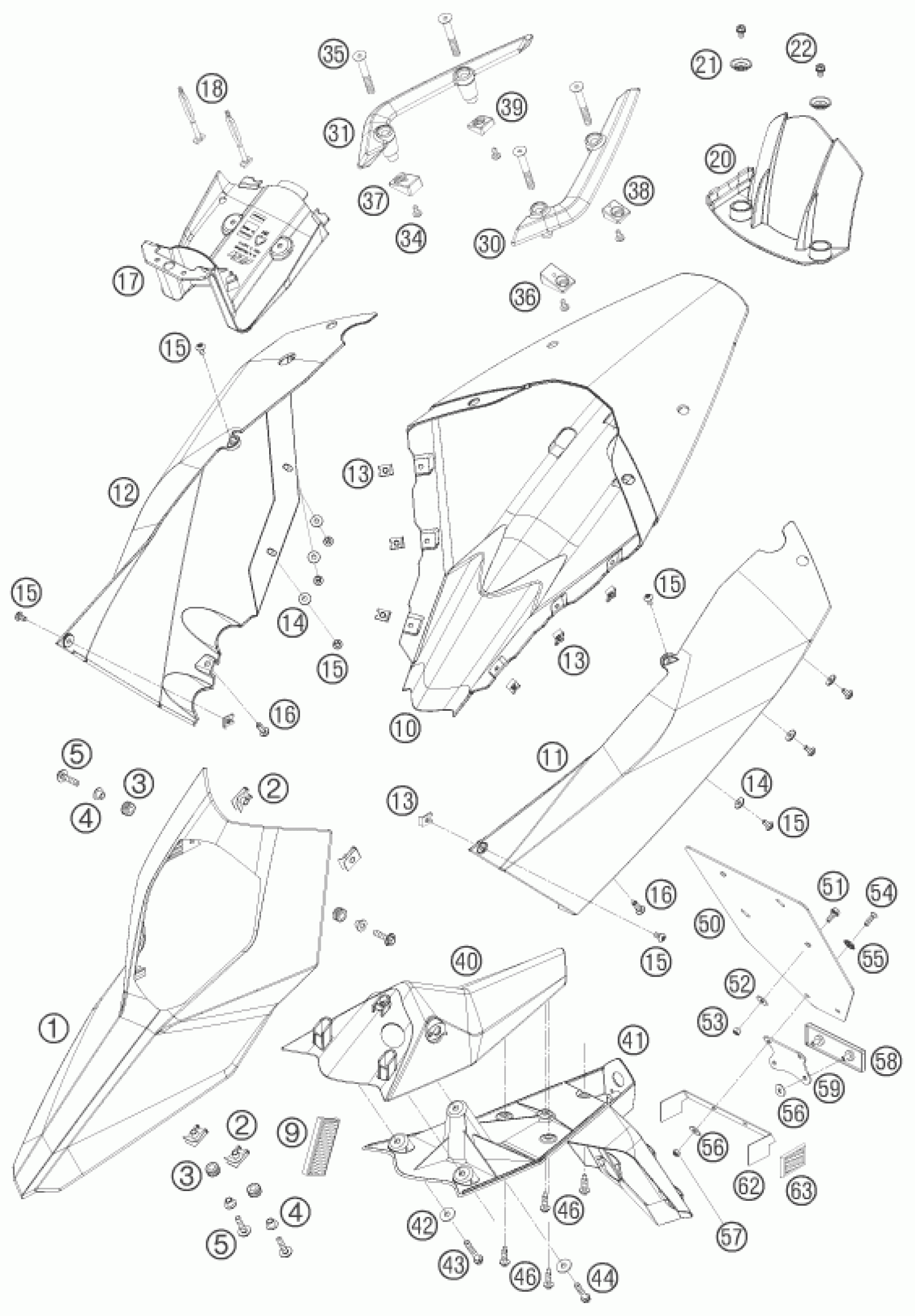

KTM 690 SUPERMOTO PRESTIGE 2007 MASK, FENDERS Diagram

Washer DIN9021-A 6.4

HEAD LIGHT TITANIUM 07

clip nut M6

rubber grommet D=8mm open

COLLAR BUSHING 6,1X8,1X14X8 07

HH COLLAR SCREW M 6X25 WS=8

SIDE REFLECTOR YELLOW 03

REAR FENDER BLACK MATT 07

SIDE COVER L/S+DECAL TITAN. 07

SIDE COVER R/S+DECAL TITAN. 07

RANGE CHANGE METAL NUT M5

Washer tail section UT D=14mm

Oval head screw M5x14 TX25

EJOT PT SCREW K60X20 WS=6

STORAGE COMPARTMENT

RUBBER L=145MM

MUD FLAP 07

BUCKET

HH COLLAR SCREW M 6X8 WS=8

HAND GRIP L/S 07

HAND GRIP R/S 07

SCREW FOR PLASTIC 50X12

FLAT HEAD SCREW ISO10642 M8X60

SPACER SUB FRAME FRONT L/S

SPACER SUB FRAME FRONT R/S

SPACER SUB FRAME REAR L/S

NUMBER PLATE CARRIER TOP 07

REFLECTOR RED

BRACKET FOR REFLECTOR

BRACKET SIDE REFLECTOR 06

SIDE REFLECTOR RED REAR

WASHER 6MM

Self lock. nut DIN985-M6-A2

OVAL HEAD SCREW DIN0966-M 5X16

WASHER DIN0125-A 5,3

Self locking nut DIN 985 M5

SPACER SUB FRAME REAR R/S

NUMBER PLATE CARRIER 07

Washer DIN9021-A 6.4

HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X20 WS=8

SPECIAL SCREW T60 6X30 WS=6

EJOT PT SCREW K60X20 WS=6

license plate mouning plate

HH COLLAR SCREW M 6X15 WS=8
