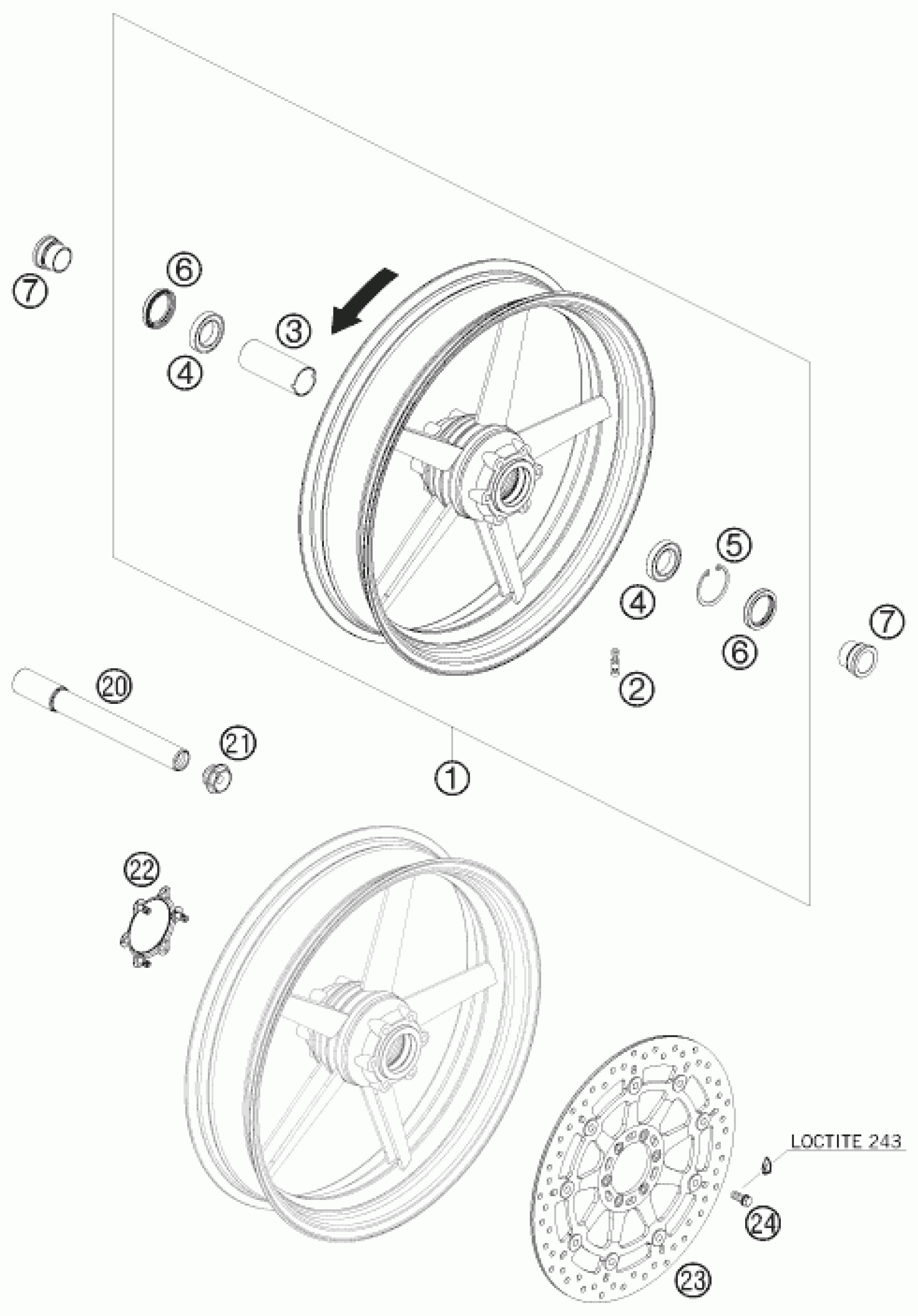

KTM 690 SUPERMOTO PRESTIGE 2007 FRONT WHEEL Diagram

FRONT WHEEL CPL. 3,5X17'' 07

7560900104433

$666.93

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

Bearing spacing tube, front

61009011000

$22.81

Grooved ball bearing 6906

0625069068

$34.68

LOCK RING DIN0472-48X1,75

0472048175

$2.05

Radial shaft seal 35X47X7 TC

0760354771

$8.69

SPACER BUSHING F. FR. WHEEL

54809012000

$30.10

WHEEL SPINDLE FRONT D=26MM 07

75009081000

$80.78

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

PLASTIC COVER RING

75009001010

$6.07

BRAKE DISC D=320MM 07

75609060000

$266.41

SPECIAL SCREW M8X18 05

61009062018

$4.11
