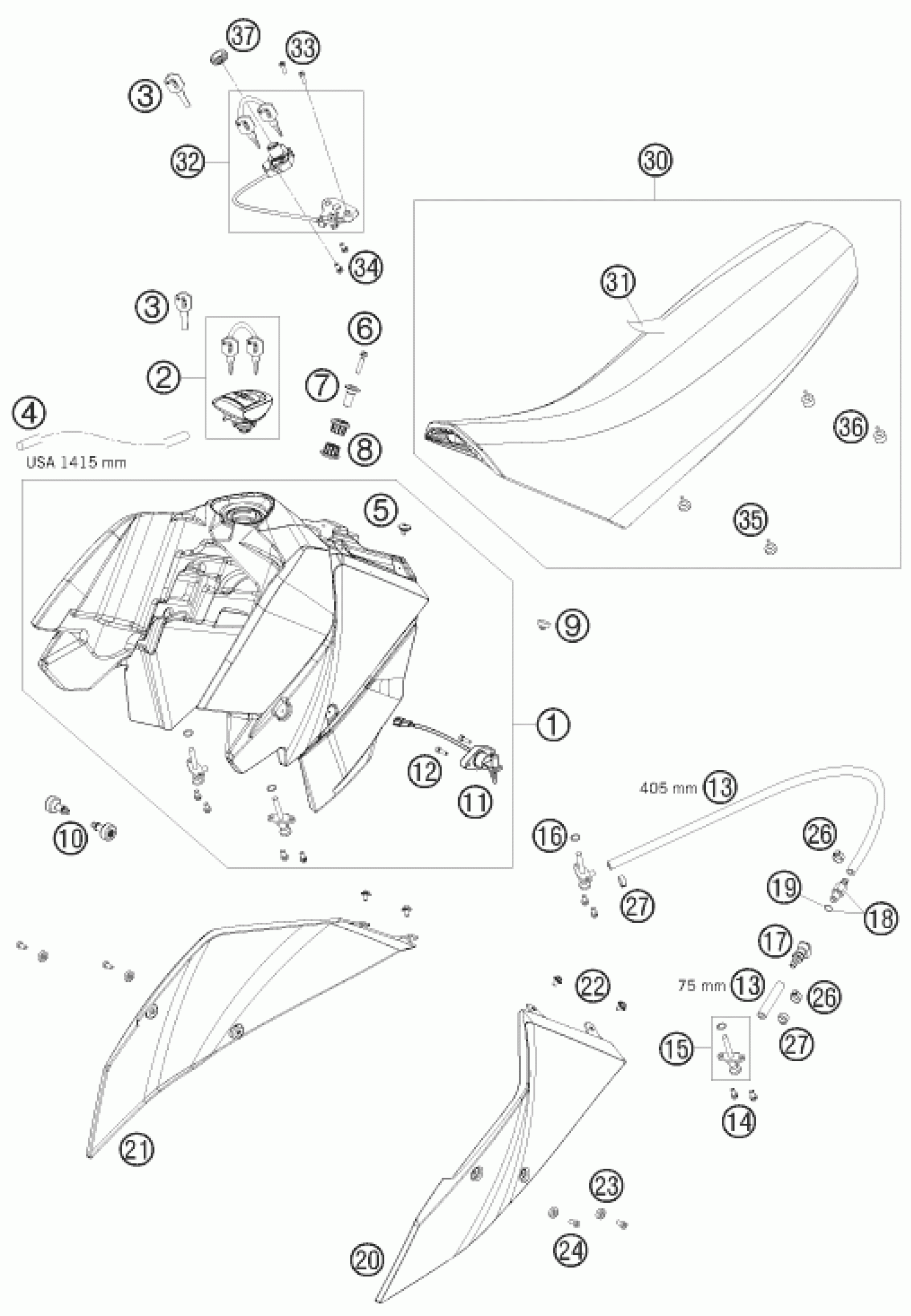

KTM 690 SUPERMOTO ORANGE 2007 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK BLACK CPL. 07

7500701304433A

$714.27

2

TANK PLUG 06

58407008200

$106.86

3

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

4

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

5

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

7

BEARING BUSHING OUTSIDE 03

60007060000

$11.12

8

TANK RUBBER BUSHING 03

60007065000

$7.28

9

RUBBER BUFFER

54308042000

$3.08

10

SPECIAL SCREW M8 06

62507026100

$19.81

11

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

12

AH collar screw DIN 912 M5x16

0912050163

$1.49

13

HOSE 7,5X13,5 PER METER

60007016001

Unavailable

14

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

15

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

16

O-RING 11X1,8 NBR 70

55007006200

$2.05

17

Clutch CPC PLCD17005, black

5850701050030

$55.90

18

Plug CPC black 05

5850701030030

$43.28

19

O-ring VITON f. plug CPC 0

58507012000

$6.26

20

SPOILER L/S ORANGE 07

7500805000004

$40.32

21

SPOILER R/S ORANGE 07

7500805100004

$40.32

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

23

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

24

AH SCREW DIN6912 M6X12

0012060123

$2.05

26

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

27

VARIABLE ONE-EAR CLAMP 14,2 MM

00050142706

$3.08

30

SEAT BLACK 07

75007040000

$110.93

31

SEAT COVER LOW

75007040080

Unavailable

32

SEAT LOCK 05

62507050000

$56.29

33

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

$1.49

34

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

35

SEAT RUBBER 6 MM

75007046020

$3.08

36

SEAT RUBBER 10 MM

75007046010

$3.08

37

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08
