THROTTLE BODY

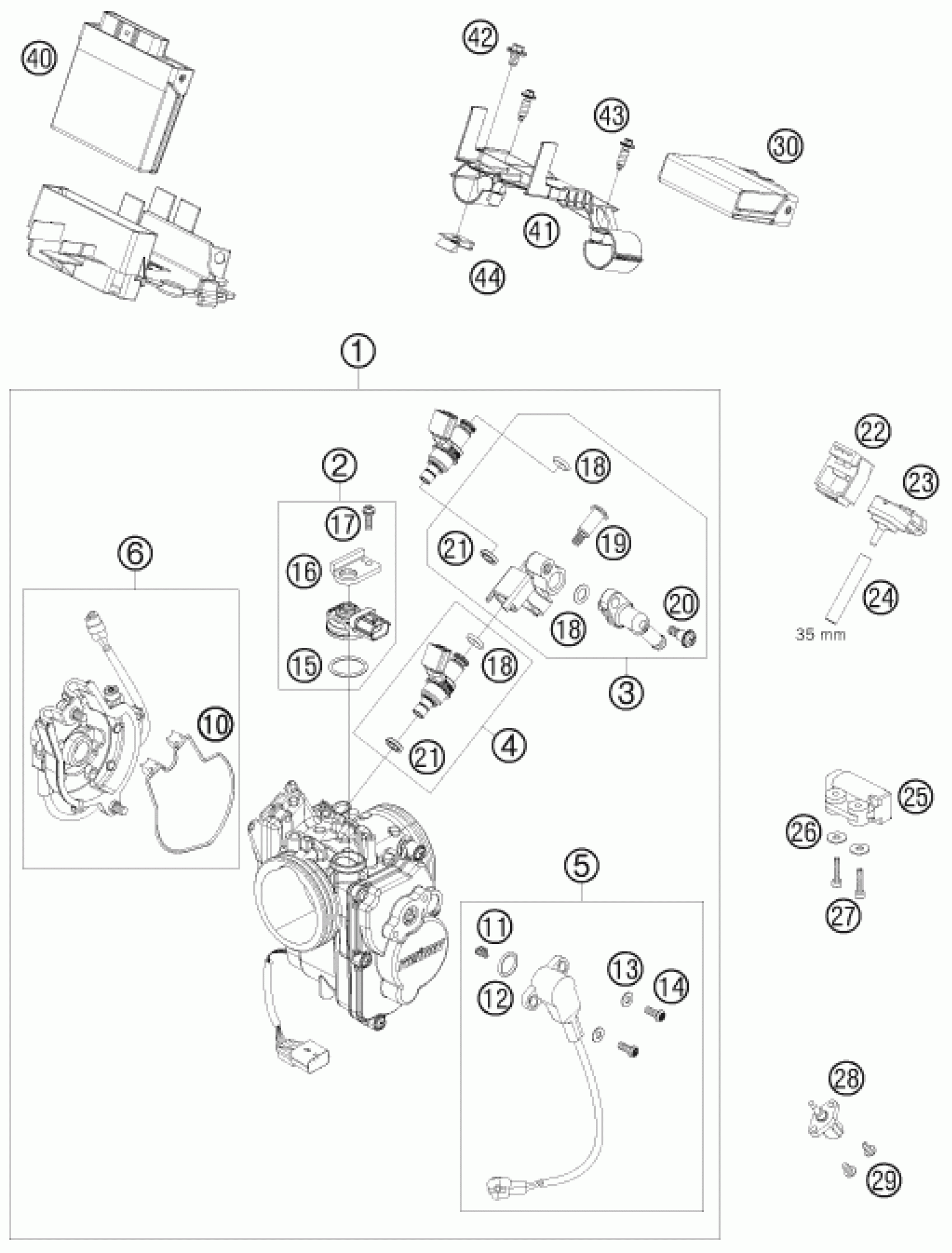

KTM 690 SUPERMOTO LIM.ED 2009 THROTTLE BODY Diagram
#
Description
Price
1
THROTTLE BODY
75041001000
$1,067.39
2
MAP SENSOR CPL. 07
75041085044
$179.98
3
FUEL RAIL ASSY SET 07
75041013044
$104.80
4
FUEL INJECTOR ASSY SET 07
75041023044
$160.90
5
TPS SENSOR CPL. 07
75041077044
$171.19
6
APS UNIT CPL. 07
75041001044
$380.72
10
PACKING
75041001060
$18.97
11
CONNECTOR JOINT
75041077020
$3.48
12
O-RING
75041077010
$2.18
13
WASHER
75041077040
$1.65
14
SCREW TORX
75041077030
$3.31
15
O-RING
75041085010
$6.07
16
PLATE, STAY
75041085020
$5.23
17
SCREW WASHER
75041085030
$3.08
18
O-RING 7,2x2,2
75041023020
$9.06
19
SCREW SHOULDER
75041013060
$6.72
20
SCREW SHOULDER
75041013010
$6.63
21
SEAL RING
75041023010
$11.49
22
RUBBER SUPP. PRESSURE SENS. 06
61041085150
$5.23
23
PRESSURE SENSOR 06
61041085100
$144.36
24
HOSE 3,2X8,5 PER METER
60031098001
Unavailable
25
ROLLOVER SENSOR 05
61041088000
$67.69
26
SHIM 4,3X15X1,25MM GALVANIZED
61041088050
$1.49
27
AH SCREW DIN 912-M 4X20
0912040203
$1.49
28
AMBIENT-AIR TEMPERATURE SENSOR
61041080000
$23.74
29
SCREW FOR PLASTIC 50X12
0016050121
$2.05
30
TIMING CHARGER EPT 07
75041032000
$426.35
40
ELECTRONIC CONTROL UNIT
75041031000
$538.08
41
BRACKET TIMING CHARGER EFI 07
75041029000
$3.48
42
HH COLLAR SCREW M6X10 TX30
0024060106
$3.08
43
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
44
clip nut M6
54603048100
$4.11
