TANK, SEAT

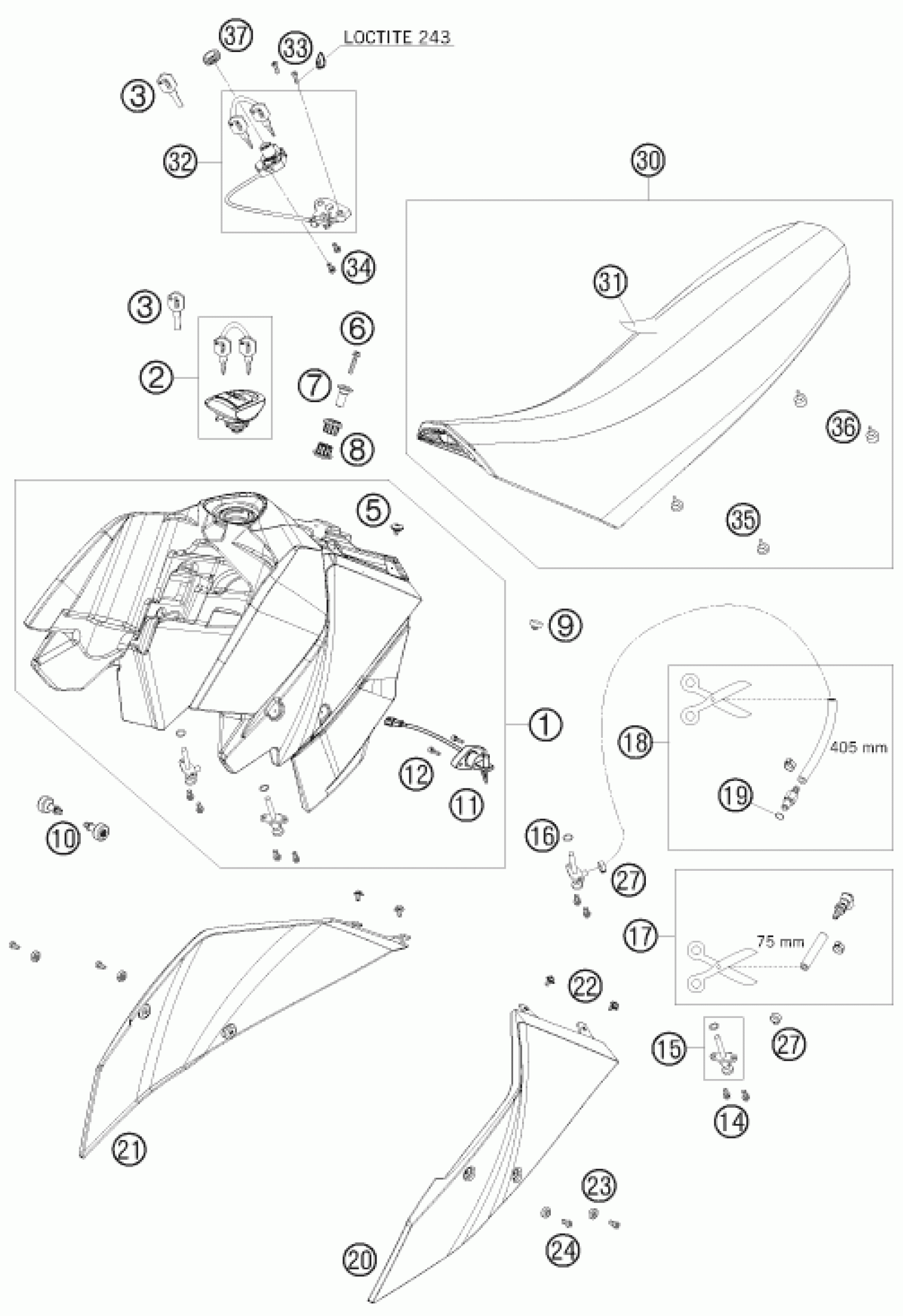

KTM 690 SUPERMOTO LIM.ED 2009 TANK, SEAT Diagram
#
Description
Price
1
FUEL TANK BLACK CPL. 07
7500701304433A
$714.27
2
TANK PLUG 06
58407008200
$106.86
3
KEY BLANK LC4/DUKE/LC8
40011166100
$16.07
5
SCREW FOR SEAT M6X11,5/8
58407011100
$4.11
6
AH SCREW DIN0912-M 8X30
0912080303
$2.05
7
BEARING BUSHING OUTSIDE 03
60007060000
$11.12
8
TANK RUBBER BUSHING 03
60007065000
$7.28
9
RUBBER BUFFER
54308042000
$3.08
10
SPECIAL SCREW M8 06
62507026100
$19.81
11
GAS-LEVEL SENSOR ADV. 2006
58207080100
$80.31
12
AH collar screw DIN 912 M5x16
0912050163
$1.49
14
HH collar screw M6x12 TX30
0025060126
$3.08
15
FUEL COCK CPL. SM. RALLYE'96
58507003000
$26.55
16
O-RING 1,78x10,82x14,38 2-013
0770020130
$2.05
17
FUEL HOSE WITH CLUTCH
75007116060
$54.78
18
FUEL HOSE WITH CLUTCH
75007016050
$61.05
19
O-ring VITON f. plug CPC 0
58507012000
$6.26
20
SPOILER L/S BLACK 07
7500805000030
$51.70
21
SPOILER R/S BLACK 07
7500805100030
$40.32
22
HH COLLAR SCREW M6X10 TX30
0024060106
$3.08
23
SPECIAL WASHER D=16,5MM 03
60008045000
$3.08
24
AH SCREW DIN6912 M6X12
0012060123
$2.05
27
VARIABLE ONE-EAR CLAMP 14,2 MM
00050142706
$3.08
30
SEAT BLACK 07
75007040000
$110.93
31
SEAT COVER 07
75007040050
Unavailable
32
SEAT LOCK 05
62507050000
$56.29
33
OVAL HEAD SCREW DIN0966-M 5X20
0966050203
$1.49
34
HH collar screw M5x12 TX30
0025050126
$3.08
35
SEAT RUBBER 6 MM
75007046020
$3.08
36
SEAT RUBBER 10 MM
75007046010
$3.08
37
RUBBER SLEEVE F.SEAT LOCK '99
58707050050
$3.08
