Description

Price

1

MONOSHOCK 690 SM LV

15189E4701

Unavailable

2

SCREW M 10 L=53MM 07

75004016000

$4.11

4

SPRING 220 65 N/MM (61)

91110009S

Unavailable

5

COUNTERNUT

46180445

$26.14

6

ADJUSTING NUT

46180444

$64.15

7

Spring retainer 28x73x15

46180396

$61.42

8

REPAIR KIT GASKET 07

R15005

$83.39

9

REPAIR KIT BEARINGS 07

R15006

$100.65

10

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

11

MONOSHOCK LOWER PART CPL. 2010

46180520SA1

Unavailable

12

MONOSHOCK CASE TOP 07

46180635S

Unavailable

13

SCREW M5 C.K. RVS

36120785

$2.73

14

SEAL D5,21XD8,38X1,22

36120782

$10.84

15

Round-wire snap ring 49x1,5

46810010

$3.08

4

SPRING 220 60 N/MM (61)

91110006S

Unavailable

4

SPRING 220 70 N/MM (61)

91110007S

Unavailable

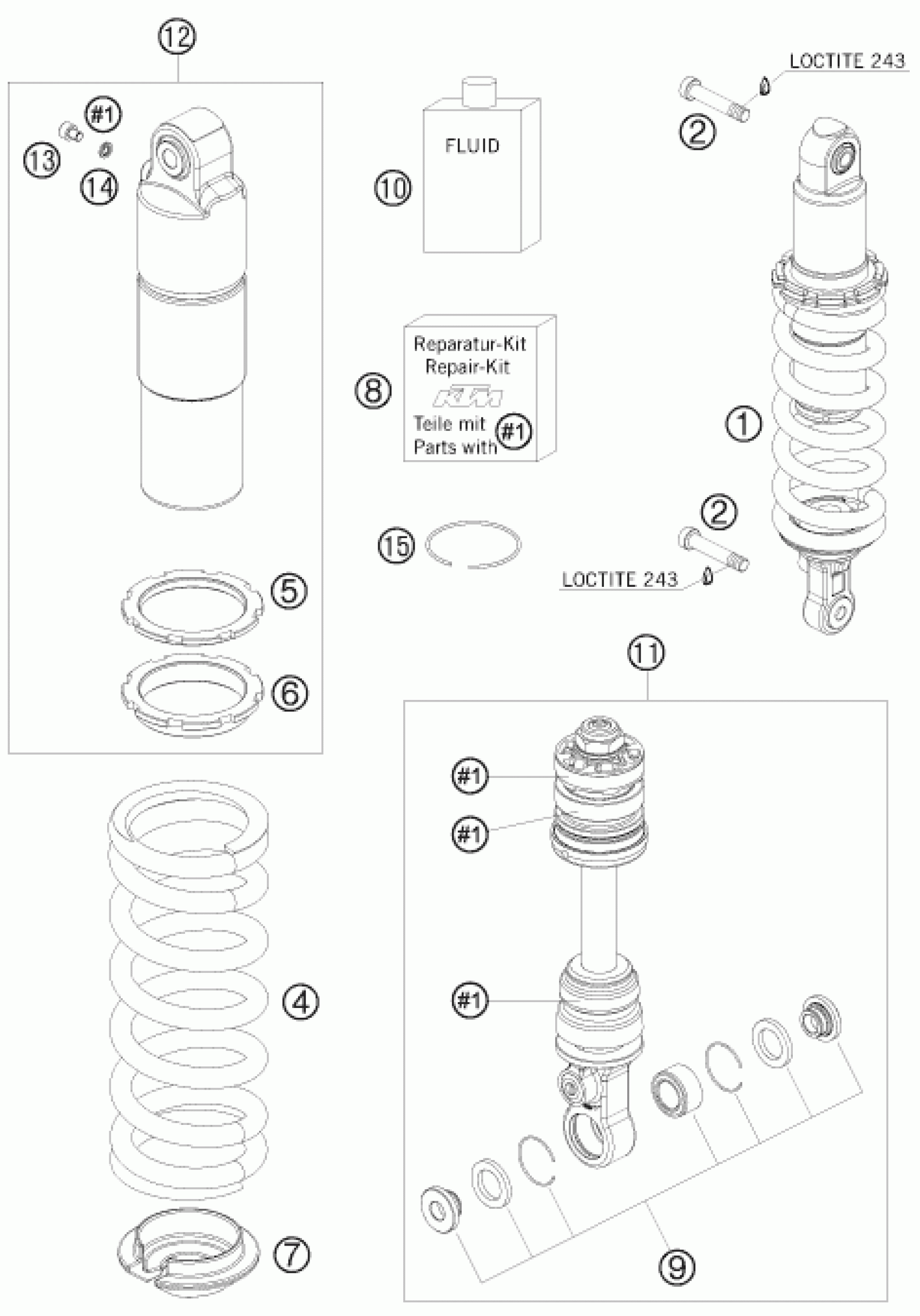

KTM 690 SUPERMOTO LIM.ED 2009 SHOCK ABSORBER Diagram

MONOSHOCK 690 SM LV

SCREW M 10 L=53MM 07

SPRING 220 65 N/MM (61)

COUNTERNUT

ADJUSTING NUT

Spring retainer 28x73x15

REPAIR KIT GASKET 07

REPAIR KIT BEARINGS 07

SHOCK ABSORBER FLUID 5 LT '03

MONOSHOCK LOWER PART CPL. 2010

MONOSHOCK CASE TOP 07

SCREW M5 C.K. RVS

SEAL D5,21XD8,38X1,22

Round-wire snap ring 49x1,5

SPRING 220 60 N/MM (61)

SPRING 220 70 N/MM (61)
