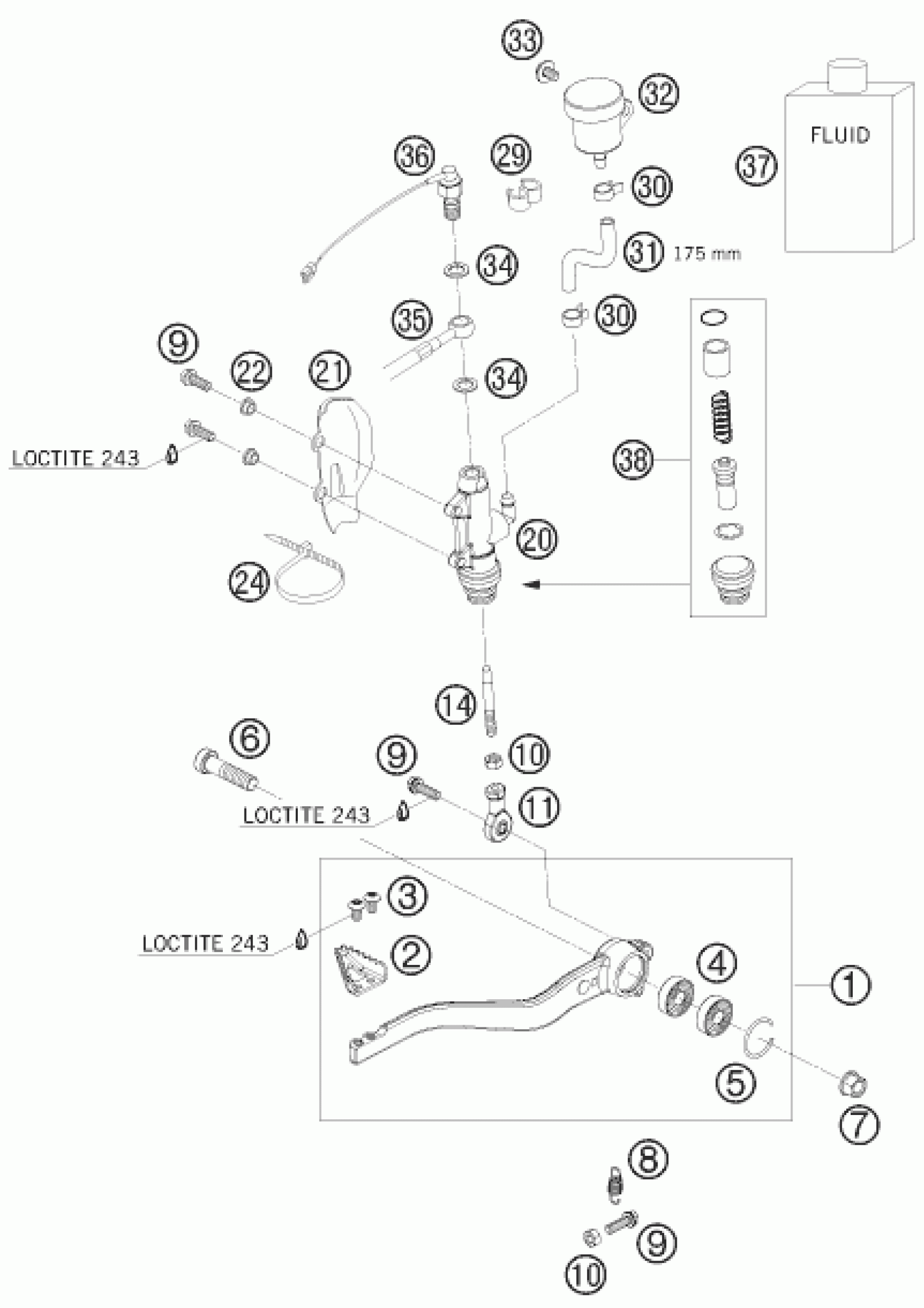

KTM 690 SUPERMOTO LIM.ED 2009 REAR BRAKE CONTROL Diagram

FOOT BRAKE LEVER CPL. 07

7501305004401

$106.21

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

SCREW TORX M5X10 05

58605083010

$2.05

deep groove ball bearing SKF 6

0625060002

$12.33

round wire snap ring DIN 7993

0993026500

$3.08

AH SCREW DIN6912 M10X40 10.9

0912100406

$4.11

COLLAR NUT M10 WS=13

54630044000

$1.49

SPRING FOOT BRAKE LEVER 05

61013052000

$3.08

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

Hex. nut DIN 934 M6

0934060003

$1.49

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

PRESSURE ROD ALU 250 '90

54603068000

$6.35

MAIN BRAKE CYLINDER '89

54513101044

$126.73

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

COLLAR BUSHING

50213161000

$3.08

Cable tie 200/4.6mm black

44011076200

$1.49

CLAMP D=6/8MM, BLACK

55011022100

$2.05

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

sealing ring DIN 7603 10x14x1

0603100141

$2.05

BRAKE HOSE REAR 2007

75013072000

Unavailable

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

Brake fluid DOT5.1 0,25L

00062030000

$12.52

REPAIR KIT PISTON 13MM

54513150000

$46.46
