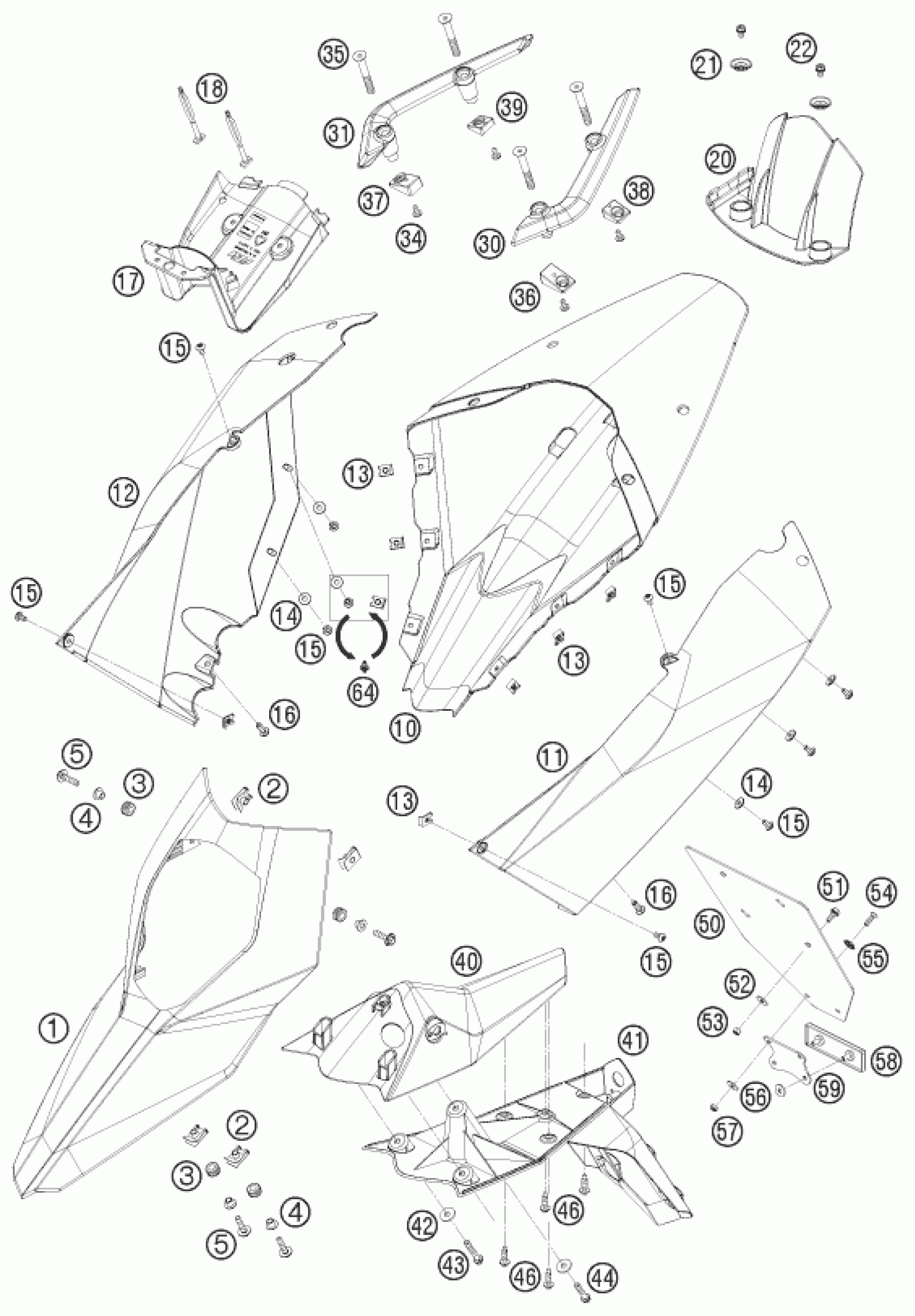

KTM 690 SUPERMOTO LIM.ED 2009 MASK, FENDERS Diagram

#

Description
Price

1

HEAD LIGHT MASK BLACK 07

7500800100030

Unavailable

2

clip nut M6

54603048100

Unavailable

5

HH collar screw M6x20 TX30

0024060206

Unavailable

10

REAR FENDER BLACK MATT 07

7500801300033

Unavailable

11

SIDE COVER L/S BLACK 07

7500804100030

Unavailable

12

SIDE COVER R/S BLACK 07

7500804200030

Unavailable

13

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

14

Washer tail section UT D=14mm

75008023000

Unavailable

15

Oval head screw M5x14 TX25

58605083014

Unavailable

16

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

17

STORAGE COMPARTMENT

75003075000

Unavailable

18

RUBBER L=145MM

50303018000

Unavailable

20

MUD FLAP 07

75004050000

Unavailable

21

BUCKET

72210079000

Unavailable

22

HH collar screw M6x8 TX30

0025060086

Unavailable

30

HAND GRIP L/S 07

75012008000

Unavailable

31

HAND GRIP R/S 07

75012009000

Unavailable

34

EJOT PT screw K50x12

0081050121

Unavailable

35

FLAT HEAD SCREW ISO10642 M8X60

0991080603

Unavailable

36

SPACER SUB FRAME FRONT L/S

75003065000

Unavailable

37

SPACER SUB FRAME FRONT R/S

75003066000

Unavailable

38

SPACER SUB FRAME REAR L/S

75003067000

Unavailable

39

SPACER SUB FRAME REAR R/S

75003068000

Unavailable

40

NUMBER PLATE CARRIER TOP 07

75008015010

Unavailable

41

NUMBER PLATE CARRIER 07

75008015000

Unavailable

42

Washer DIN9021-A 6.4

0021060003

Unavailable

43

HH collar screw M6x35 TX30

0025060356

Unavailable

44

HH collar screw M6x20 TX30

0025060206

Unavailable

46

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

50

license plate mouning plate

60012081200

Unavailable

51

HH collar screw M6x15 TX30

0024060156

Unavailable

52

Washer DIN9021-A 6.4

0021060003

Unavailable

53

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

55

WASHER 6MM

40006006000

Unavailable

56

WASHER DIN0125-A 5,3

0125050003

Unavailable

57

Self locking nut DIN 985 M5

0985050003

Unavailable

58

REFLECTOR RED

58412080000

Unavailable

59

BRACKET FOR REFLECTOR

58412080050

Unavailable

64

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

3

rubber grommet D=8mm open

31008060000

Unavailable

4

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable
