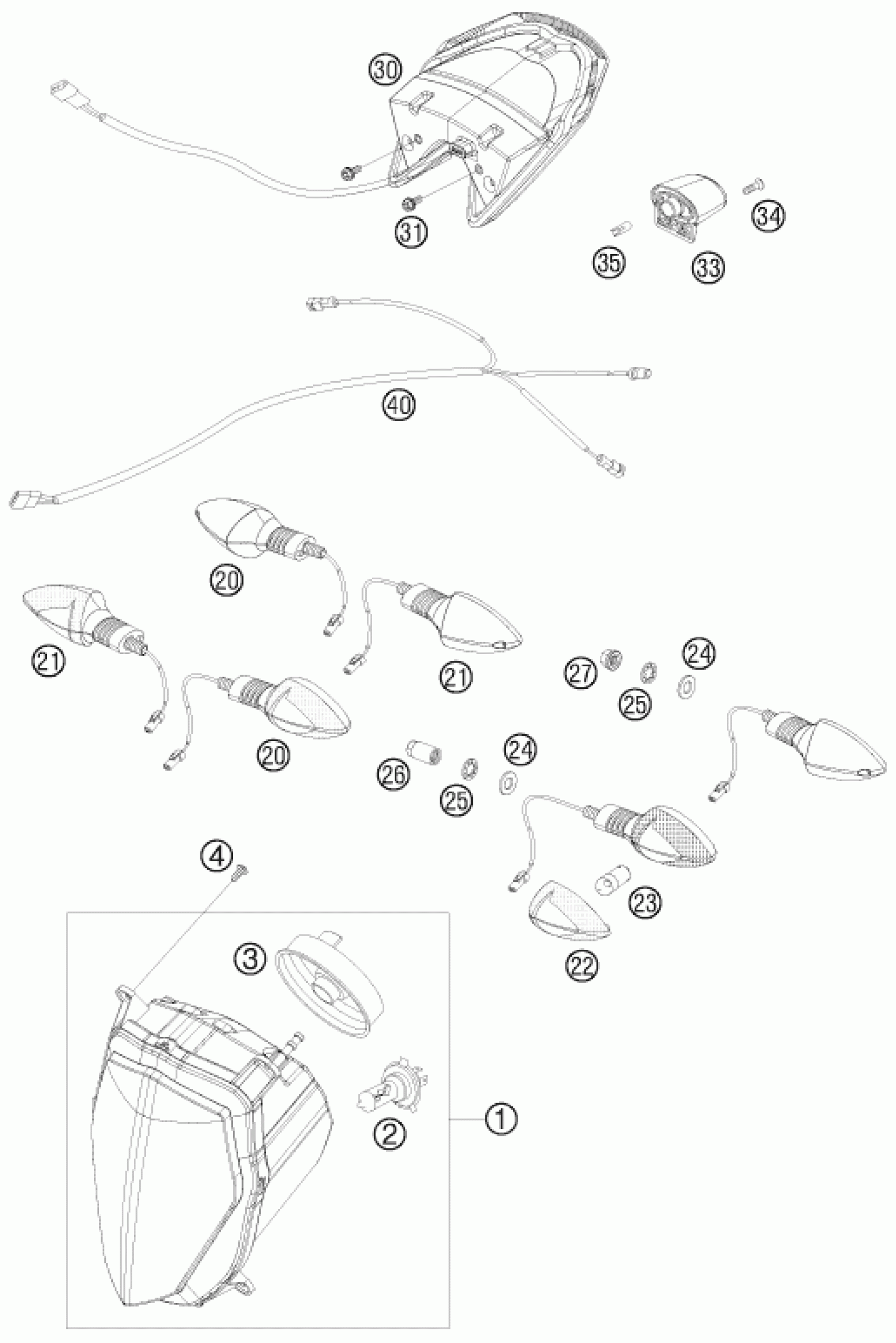

KTM 690 SUPERMOTO LIM.ED 2009 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT LC4 07

75014001000

$165.49

2

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

3

RUBBER CAP FOR HEAD LIGHT 05

58614001050

$4.35

4

SCREW FOR PLASTIC 50X12

0016050121

$2.05

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

$5.51

23

BULB 12V ORANGE (RY10W)

60114027000

$6.63

24

Washer DIN0433-M10

0433100003

$1.49

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

26

FLASHER NUT M10X1,25 WS12

75014030000

$4.35

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

30

REAR LIGHT LED 07

75014040000

$146.13

31

HH collar screw M5x12 TX30

0025050126

$3.08

33

LICENSE PLATE ILLUMINATION 07

75014047000

$10.37

34

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

40

WIRING HARNESS REAR 07

75011076000

$29.54
