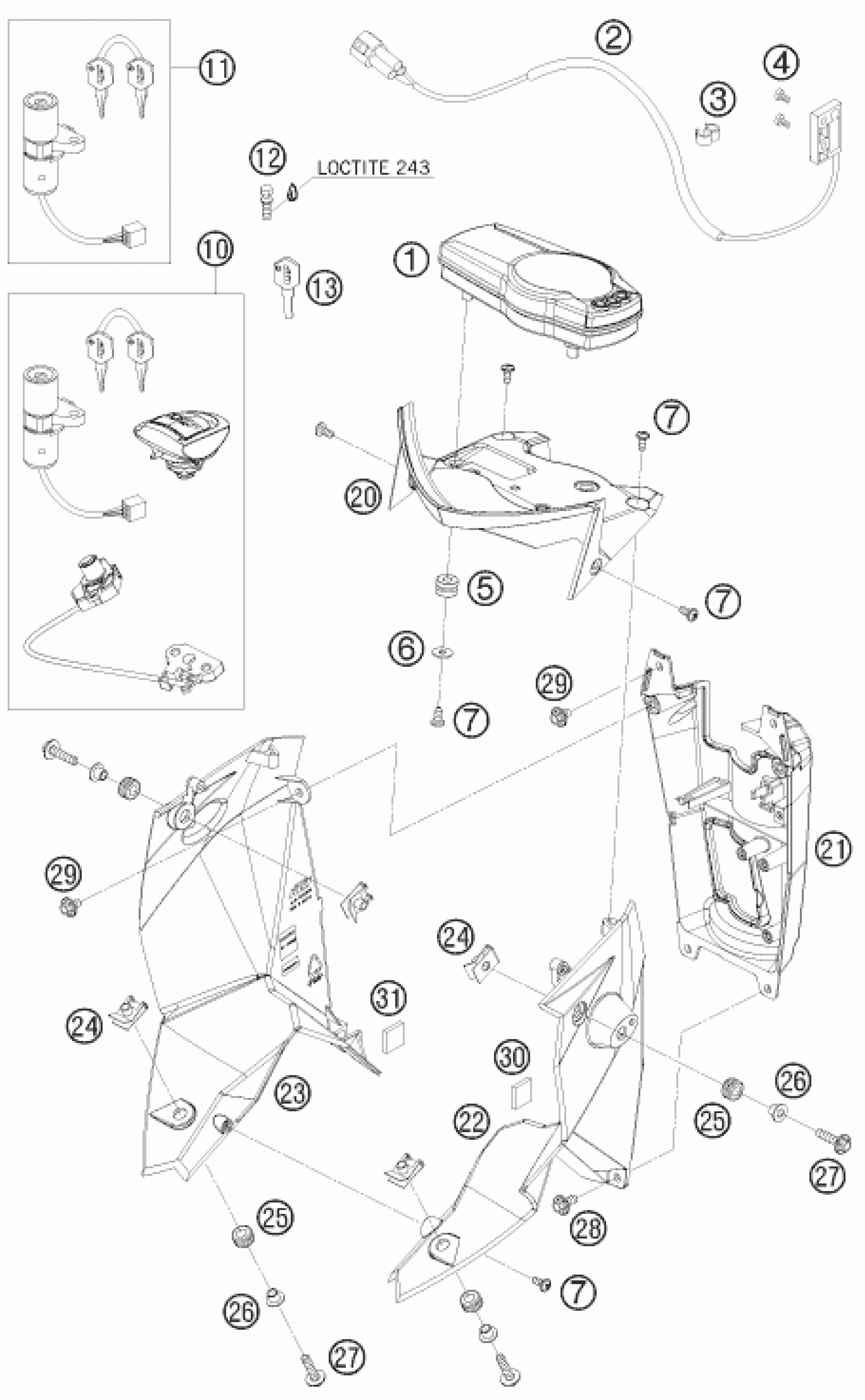

KTM 690 SUPERMOTO LIM.ED 2009 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER 07

75014069000

$552.76

2

SPEEDOMETER SENSOR 06

62514068100

$94.52

3

CLIP 5/7 MM 06

60111094000

$3.08

4

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

washer DIN 9021 A - 5.3

0021050003

$1.49

7

EJOT PT screw K50x12

0081050121

$2.05

10

KEY-SET 07

75011066144

$328.08

11

IGNITION LOCK

75011166000

$167.89

12

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

13

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

20

SPEEDOMETER BRACKET 07

75014060000

$6.44

21

COVER 07

75014064000

$26.55

22

MASK BRACKET L/S 07

75014062000

$12.99

23

MASK BRACKET R/S 07

75014063000

$12.99

24

clip nut M6

54603048100

$4.11

25

rubber grommet D=8mm open

31008060000

$2.05

26

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

27

HH collar screw M6x20 TX30

0024060206

$3.08

28

HH collar screw M6x15 TX30

0024060156

$3.08

29

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

30

METAMOLL

75014062010

$2.48

31

METAMOLL

75014063010

$2.48
