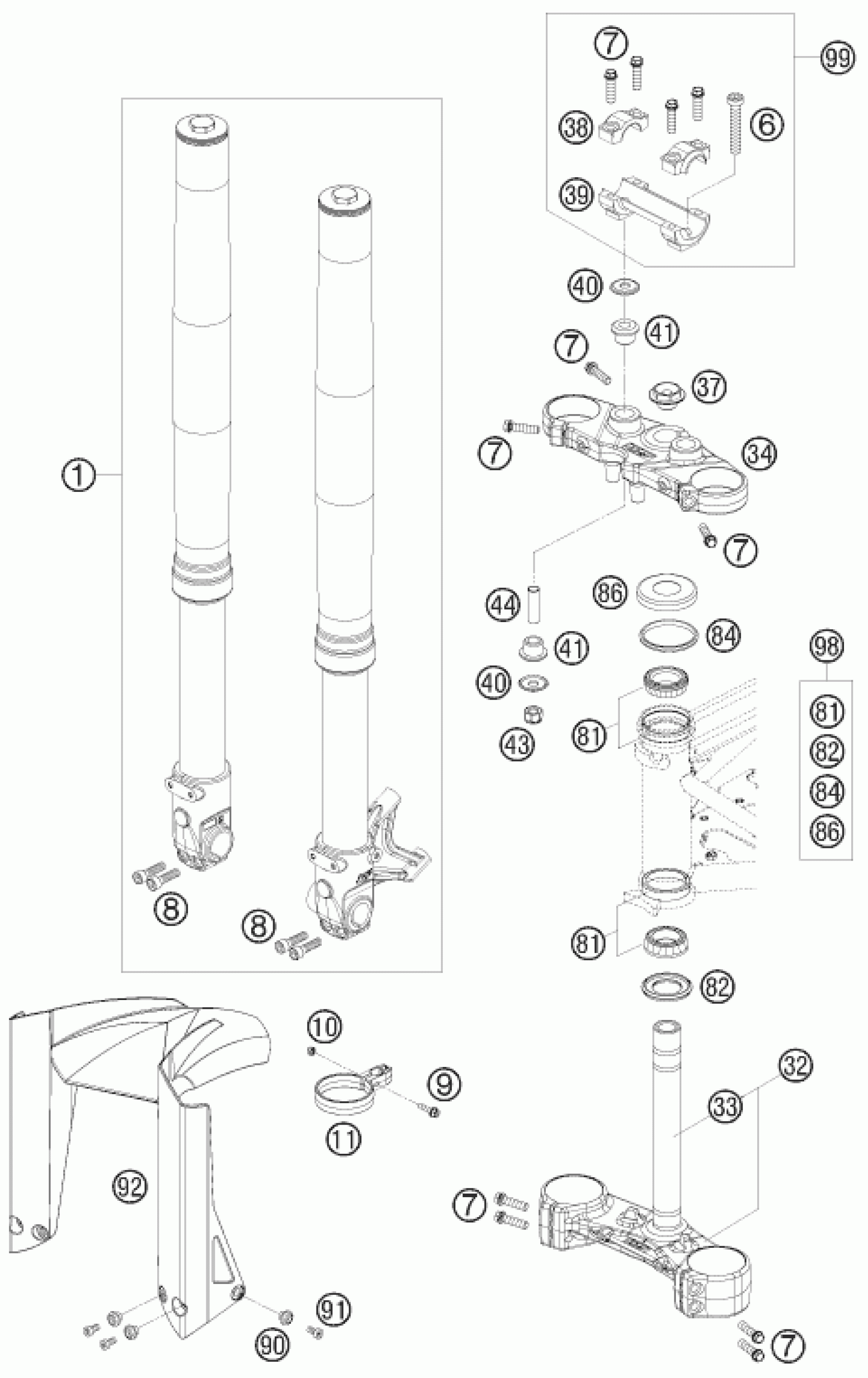

KTM 690 SUPERMOTO LIM.ED 2009 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM 690 SM LV 2009

14187E4701

Unavailable

6

AH SCREW DIN6912-M10X60

0012100603

$2.05

7

HH collar screw M8x30

0025080306

$3.08

8

AH SCREW DIN0912-M 8X30

0912080303

$2.05

9

HH collar screw M5x20 TX30

0025050206

$2.05

10

Self locking nut DIN 985 M5

0985050003

$2.05

11

CLAMP BRAKE HOSE 07

75001070000

$5.23

32

BOTTOM TRIPLE CLAMP CPL. 07

7500103203201S

$396.15

33

FORK TUBE LC8 ADV 03

60001033000

$65.16

34

TOP TRIPLE CLAMP 54MM 07

7500103403201S

$203.23

37

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

39

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

40

washer 10.5x32x2

56401042000

$4.11

41

rubber bushing

56401040000

$5.23

43

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

44

spacer tube 10.2x12x38

61001041000

$4.11

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER 05

61001086000

$13.92

90

BUSHING MUD FLAP 07

75001094010

$6.07

91

AH SCREW DIN6912 M6X12

0012060123

$2.05

92

SPLASH PROTECTOR BLACK MATT 07

7500109400033

$19.72

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
