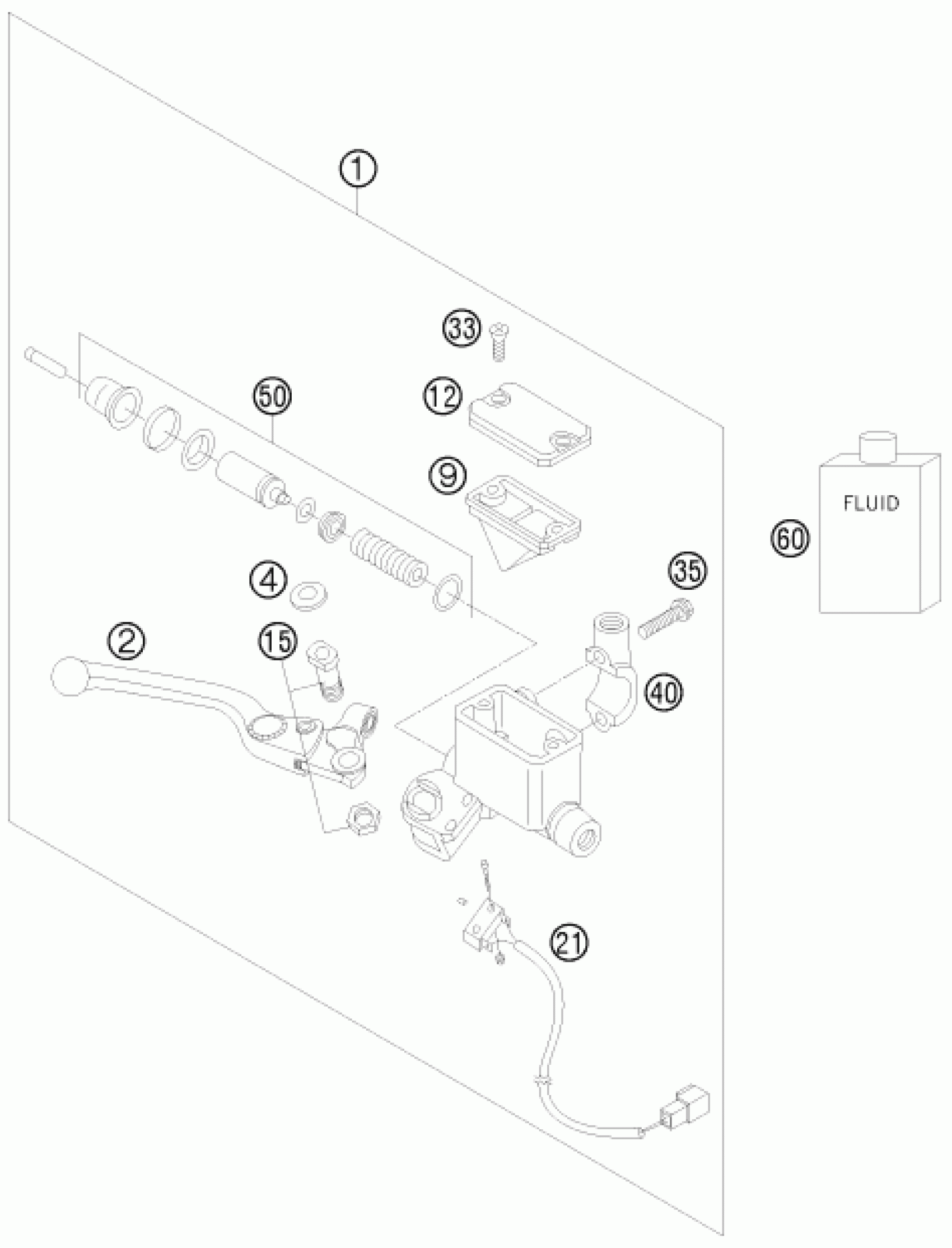

KTM 690 SUPERMOTO LIM.ED 2009 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HANDBRAKE CYL.DUKE ADJUST.2003

58713001100

$301.01

2

HAND BRAKE LEVER LOOSE ADJ. 03

58713002100

$88.16

4

COVERING CAP FOR LEVER SCREW

58713004000

$1.49

9

RUBBER BOOT DUKE

58313009000

$11.59

12

COVER BREMBO DUKE '94

58313012000

$22.81

15

LEVER SCREW CPL.

54413015000

$16.73

21

BRAKE LIGHT SWITCH FRONT SM 03

58411050000

$40.66

33

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

35

HH collar screw M6x20 TX30

0025060206

$3.08

40

CLAMP MIRROW M10X1,25

58012040050

$12.89

50

REPAIR KIT CPL. D=13MM

58313050100

$35.90

60

Brake fluid DOT5.1 0,25L

00062030000

$12.52
