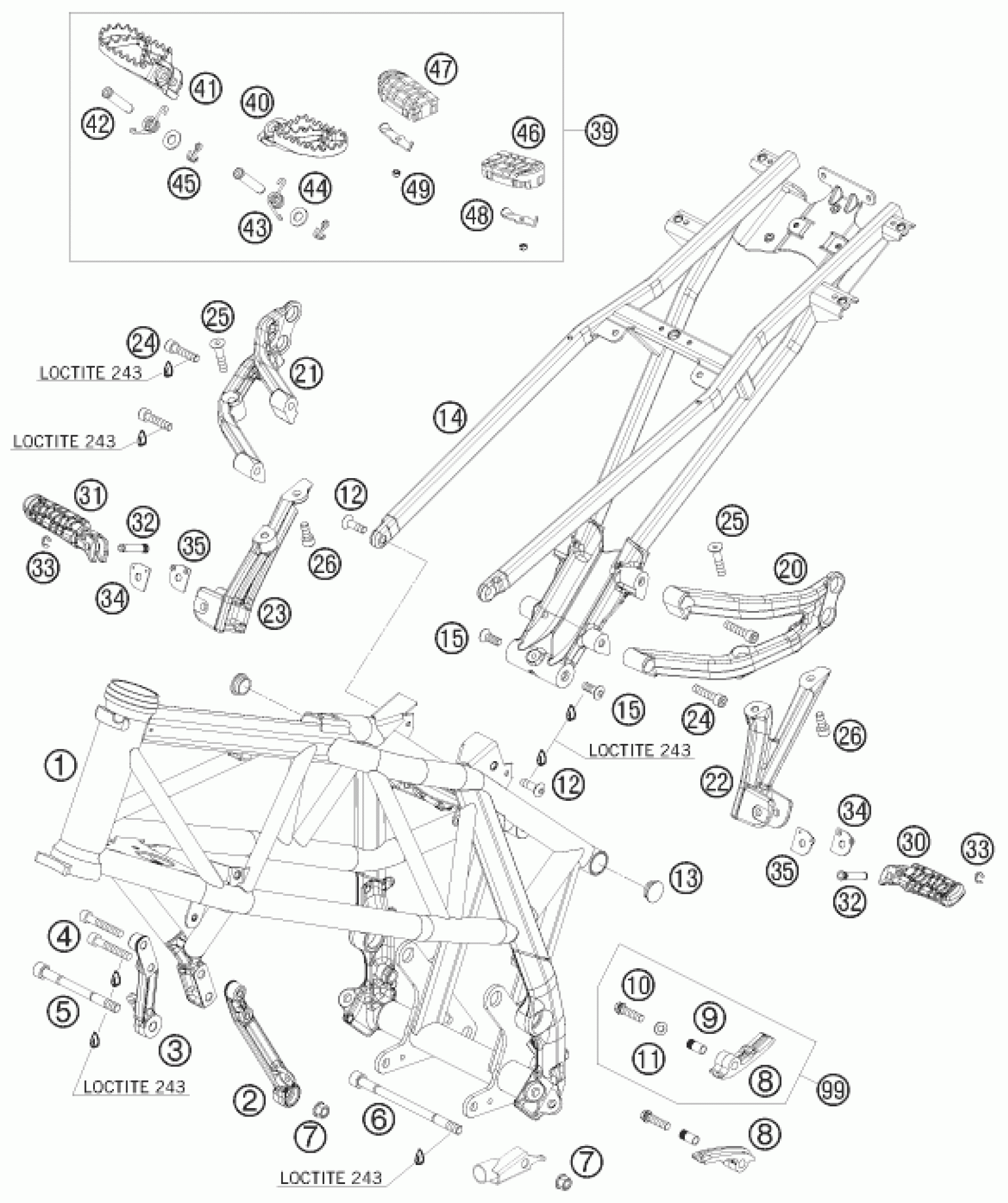

KTM 690 SUPERMOTO LIM.ED 2009 FRAME Diagram

#

Description
Price

1

FRAME ''EE08'' BLACK MATT

7500300110033

Unavailable

2

CONNECTION BRACKET ENG. L/S 07

7500300104901

$45.62

3

CONNECTION BRACKET ENG. R/S 07

7500310104901

$41.51

4

AH SCREW DIN912 M8X50

0912080503

$3.08

5

SPECIAL SCREW M10X115 ISK8 07

75003015000

$7.38

6

SPECIAL SCREW M10X152 ISK8 07

75003014000

$6.72

7

COLLAR NUT M10 WS=13

54630044000

$1.49

8

CHAIN SLIDING PIECE 03

54804067000

$5.23

9

BUSHING 8,2X10X20

51103053051

$4.11

10

HH collar screw M8x30

0025080306

$3.08

11

washer DIN 125 A -8.4

0125080003

$1.49

12

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

13

PLUG SFL28 05

61003088000

$2.05

14

SUB FRAME PLATINUM 07

7500300200092

Unavailable

15

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

$4.11

20

FOOTREST BRACKET REAR L/S 07

7500304800001S

$119.95

21

FOOTREST BRACKET REAR R/S 07

7500304900001S

$96.08

22

FOOTREST CARRIER L/S 07

7500305800001S

$83.11

23

FOOTREST CARRIER R/S 07

7500305900001S

$70.23

24

AH SCREW DIN0912-M 8X35

0912080353

$2.05

25

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

$3.08

26

AH SCREW DIN912 M8x20

0912080203

$2.05

30

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

31

Footrest cmpl. r/s rear 03

60003051000

$61.89

32

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

33

retaining washer DIN 6799 - 6

0799060003

$1.49

34

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

35

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

39

FOOTPEG L/S+R/S CPL. 03

60003040033

$147.07

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

41

FOOT PEG R/S SILVER 02

59003041250

$43.66

42

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

washer DIN 125 A 10.5

0125100003

$2.05

45

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

47

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

48

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

49

Self locking nut DIN 985 M5

0985050003

$2.05

99

CHAIN SLIDING KIT UPPER CPL.

54804067010

$20.75
