VALVE DRIVE

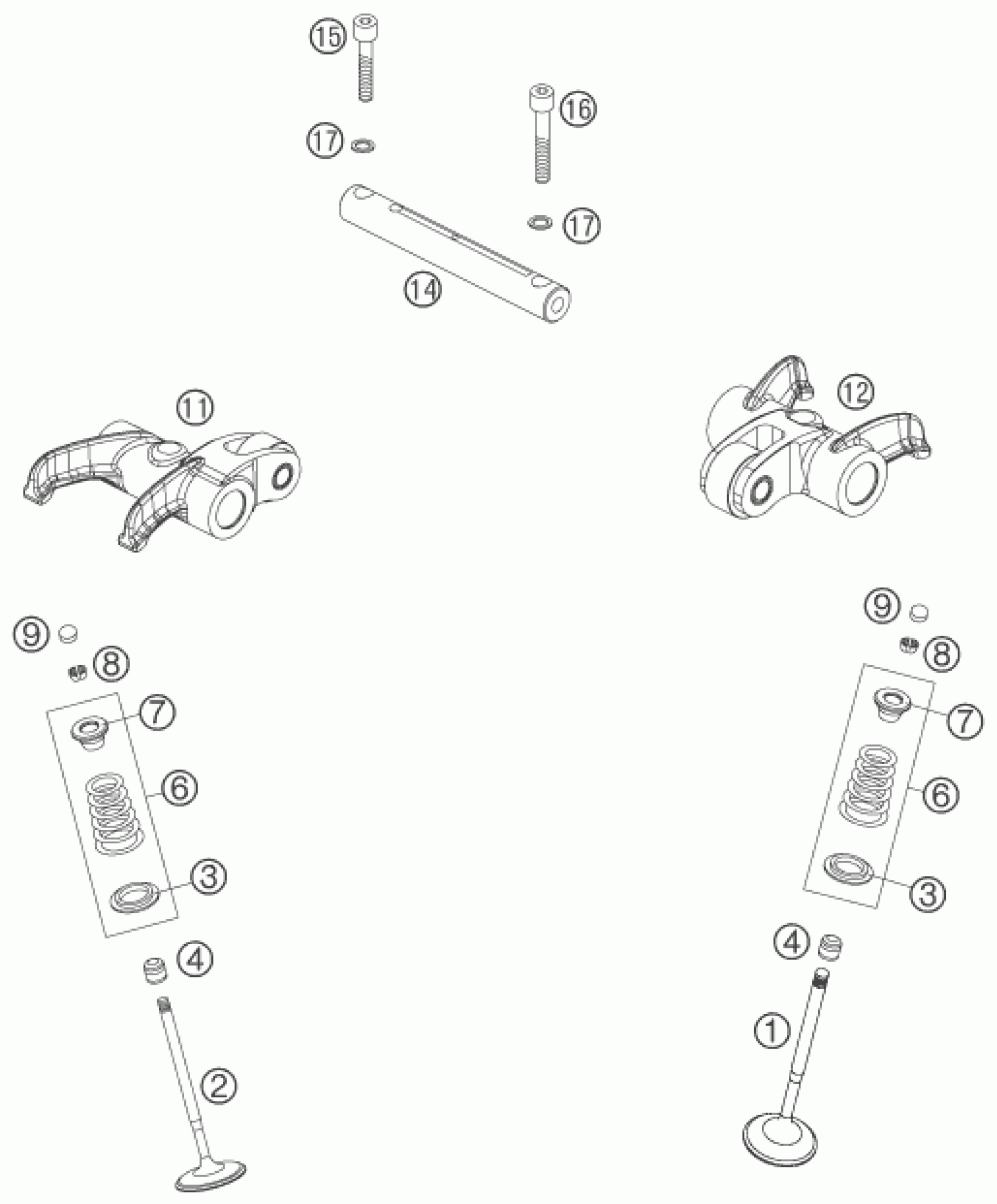

KTM 690 SUPERMOTO BLACK 2007 VALVE DRIVE Diagram
#
9
SHIM D=10/1,85 03
60036035185
Unavailable
9
SHIM D=10/1,90 03
60036035190
Unavailable
9
SHIM D=10/1,95 03
60036035195
Unavailable
9
SHIM D=10/2,00 03
60036035200
Unavailable
9
SHIM D=10/2,05 03
60036035205
Unavailable
9
SHIM D=10/2,10 03
60036035210
Unavailable
9
SHIM D=10/2,15 03
60036035215
Unavailable
9
SHIM D=10/2,20 03
60036035220
Unavailable
9
SHIM D=10/2,25 03
60036035225
Unavailable
9
SHIM D=10/2,30 03
60036035230
Unavailable
9
SHIM D=10/2,35 03
60036035235
Unavailable
9
SHIM D=10/2,40 03
60036035240
Unavailable
9
SHIM D=10/2,45 03
60036035245
Unavailable
9
SHIM D=10/2,50 03
60036035250
Unavailable
9
SHIM D=10/2,55 03
60036035255
Unavailable
9
SHIM D=10/2,60 03
60036035260
Unavailable
9
SHIM D=10/2,65 03
60036035265
Unavailable
9
SHIM D=10/2,70 03
60036035270
Unavailable
9
SHIM D=10/2,75 03
60036035275
Unavailable
9
SHIM D=10/2,80 03
60036035280
Unavailable
9
SHIM D=10/2,85 03
60036035285
Unavailable
9
SHIM D=10/2,90 03
60036035290
Unavailable
9
SHIM D=10/2,95 03
60036035295
Unavailable
9
SHIM D=10/3,00 03
60036035300
Unavailable
9
SHIM D=10/3,05 03
60036035305
Unavailable
9
SHIM D=10/3,10 03
60036035310
Unavailable
9
SHIM D=10/3,15 03
60036035315
Unavailable
9
SHIM D=10/3,20 03
60036035320
Unavailable
11
ROCKER ARM EXHAUST CPL. 07
75036061044
$130.42
12
ROCKER ARM INTAKE CPL. 07
75036060044
$112.00
14
ROCKER ARM SHAFT 07
75036056000
$26.55
15
AH SCREW DIN912 M6x30
0912060306
$1.49
16
AH SCREW DIN0912 M 6X40
0912060406
$1.49
1
INTAKE VALVE 07
75036030000
$49.92
2
EXHAUST VALVE 07
75036031000
$61.05
3
VALVE SPRING HOLDER 07
75036036000
$9.34
4
VALVE-STEM SEALING RACING
59036027000
$5.98
6
VALVE SPRING KIT 07
75036028044
$31.41
7
VALVE SPRING RETAINER 07
75036032000
$10.00
8
VALVE COLLET MK6 03
60036033000
$2.05
17
WASHER DIN0125-A 6,4
0125060003
$1.49
9
SHIM D=10/3,3
60036035330
Unavailable
