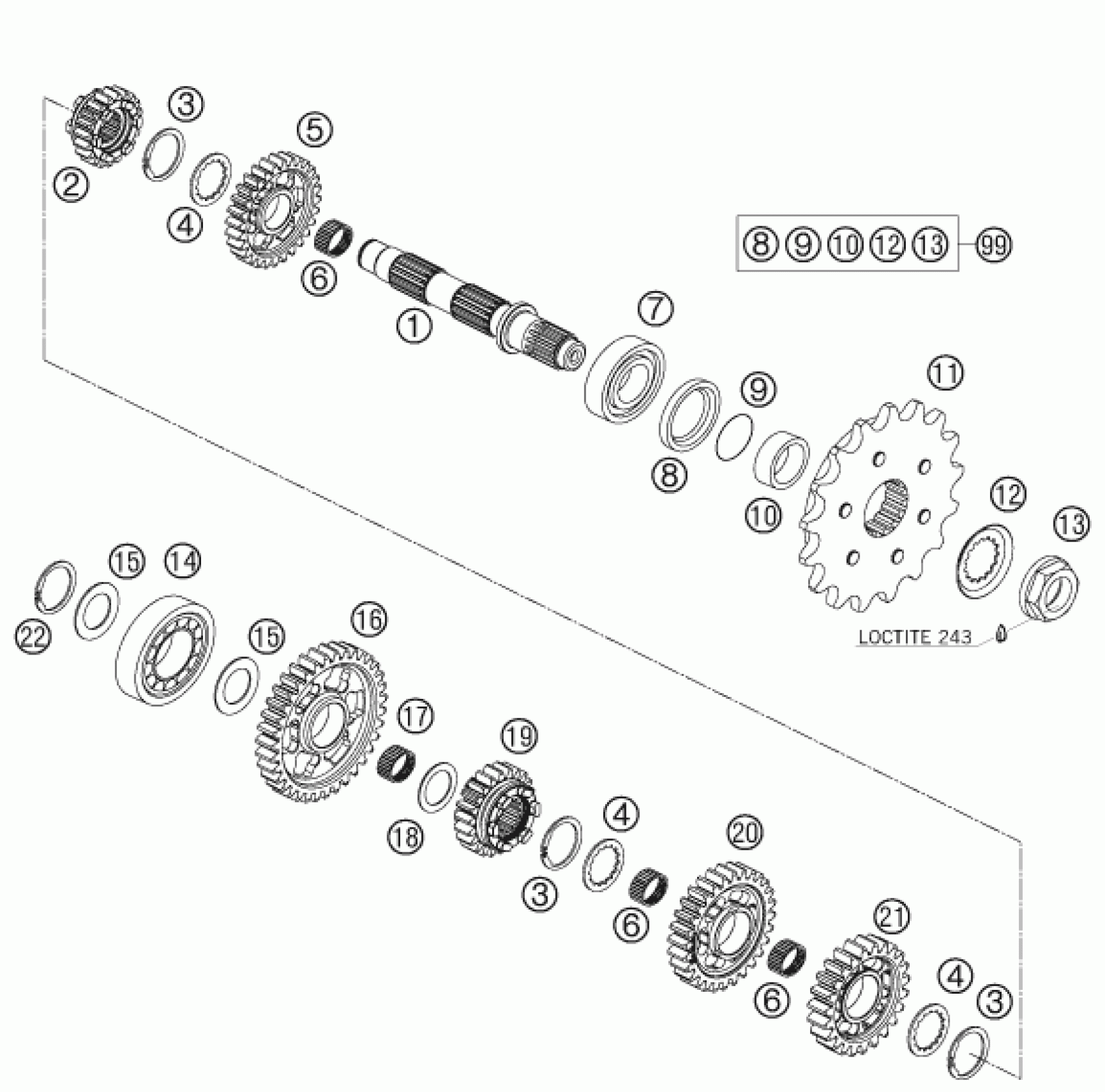

KTM 690 SUPERMOTO BLACK 2007 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

22

CIRCLIP DIN471 20X1,2

0471200120

$2.05

1

COUNTER SHAFT 07

75033010000

$229.45

2

SLIDING GEAR 6TH G. 07

75033016000

$83.86

3

CIRCLIP SW25

0417025000

$3.08

4

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

5

IDLER 2. GEAR 07

75033012000

$43.73

6

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

7

CYL.ROLLER BEARING NJ205 C4

49030023100

$63.66

8

radial shaft seal 32x47x7BSL V

0760324773

$13.74

9

O-RING 25X2 VITON

0770025020

$3.08

10

Spacing tube front sprocket

76633030012

$11.77

11

Sprocket 16-t, damped

58033029116

$30.75

12

locking plate

51033031000

$5.23

13

sprocket nut M20x1.5

58033032200

$15.42

14

BALL BEARING 6004 C4 N

0625204213

$12.99

15

Shim 20x31.9x1

59033080000

$2.05

16

IDLER GEAR 1ST GEAR 07

75033011000

$62.08

17

NEEDLE BEARING K22X26X13H

56533098000

$11.96

18

STOP DISK 22,2X31,7X1

54603036000

$3.08

19

5TH GEAR COUNTERSHAFT 07

75033015000

$93.96

20

IDLER GEAR 3.G 07

75033013000

$64.60

21

IDLER GEAR 4.G 07

75033014000

$64.60

99

Repair kit output shaft 690

00050000993

Unavailable
