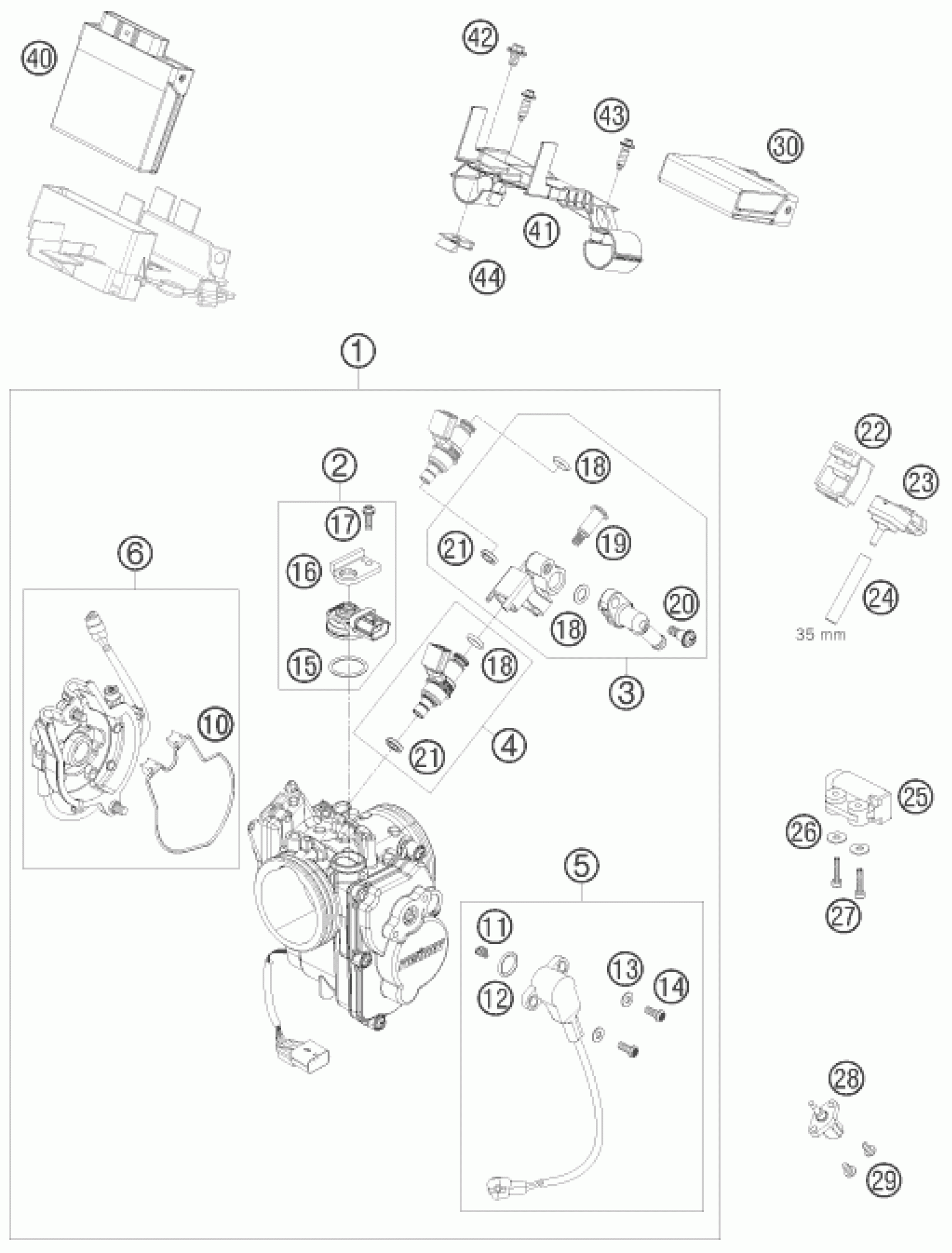

KTM 690 SUPERMOTO BLACK 2007 THROTTLE BODY Diagram

#

Description
Price

30

CONTROL UNIT EPT PROGRAMMED 07

75041032100

$426.35

40

CONTROL UNIT EFI EU PROGR. 07

75041031100

$538.08

41

BRACKET TIMING CHARGER EFI 07

75041029000

$3.48

42

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

43

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

44

clip nut M6

54603048100

$4.11

6

APS UNIT CPL. 07

75041001044

$380.72

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

23

PRESSURE SENSOR 06

61041085100

$144.36

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

25

ROLLOVER SENSOR 05

61041088000

$67.69

26

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.49

27

AH SCREW DIN 912-M 4X20

0912040203

$1.49

28

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

29

SCREW FOR PLASTIC 50X12

0016050121

$2.05

1

THROTTLE BODY

75041001000

$1,067.39

2

MAP SENSOR CPL. 07

75041085044

$179.98

3

FUEL RAIL ASSY SET 07

75041013044

$104.80

4

FUEL INJECTOR ASSY SET 07

75041023044

$160.90

5

TPS SENSOR CPL. 07

75041077044

$171.19

10

PACKING

75041001060

$18.97

11

CONNECTOR JOINT

75041077020

$3.48

12

O-RING

75041077010

$2.18

13

WASHER

75041077040

$1.65

14

SCREW TORX

75041077030

$3.31

15

O-RING

75041085010

$6.07

16

PLATE, STAY

75041085020

$5.23

17

SCREW WASHER

75041085030

$3.08

18

O-RING 7,2x2,2

75041023020

$9.06

19

SCREW SHOULDER

75041013060

$6.72

20

SCREW SHOULDER

75041013010

$6.63

21

SEAL RING

75041023010

$11.49
