Description

Price

24

PLASTIC CAP 07

75003088000

$3.08

98

CHAIN GUARD KIT

75004066010

$23.09

99

SWINGARM REP. KIT

54804230010

$78.16

1

SWING SM CPL. 07

7500403004433

$627.47

2

Bucket f. shaft seal ring 03

54804034000

$5.23

3

radial shaft seal 25x32x7

0760253270

$6.63

4

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

5

NEEDLE BEARING HK2212V

59004031100

$9.81

6

STOP DISK 22,2X31,7X1

54603036000

$3.08

7

CHAIN SLIDING PROTECTION 07

75004066000

$17.85

8

BUCKET

72210079000

$3.00

9

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

11

SPECIAL SCREW M 5,0X10

0009050103

$2.05

12

CHAIN GUARD

75004060000

$8.97

13

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

14

BUSHING MUD FLAP 07

75001094010

$6.07

15

AH SCREW DIN6912 M6X12

0012060123

$2.05

16

MUD FLAP 07

75004050000

$15.14

20

SWING ARM BOLT L=272MM 07

75004037000

$69.74

21

Nut with flange M16X1,5 WS=19

54804038000

$2.05

22

WASHER 07

75004042000

$4.11

23

ADJUSTING RING M24X1 , 5 07

75004046000

$8.13

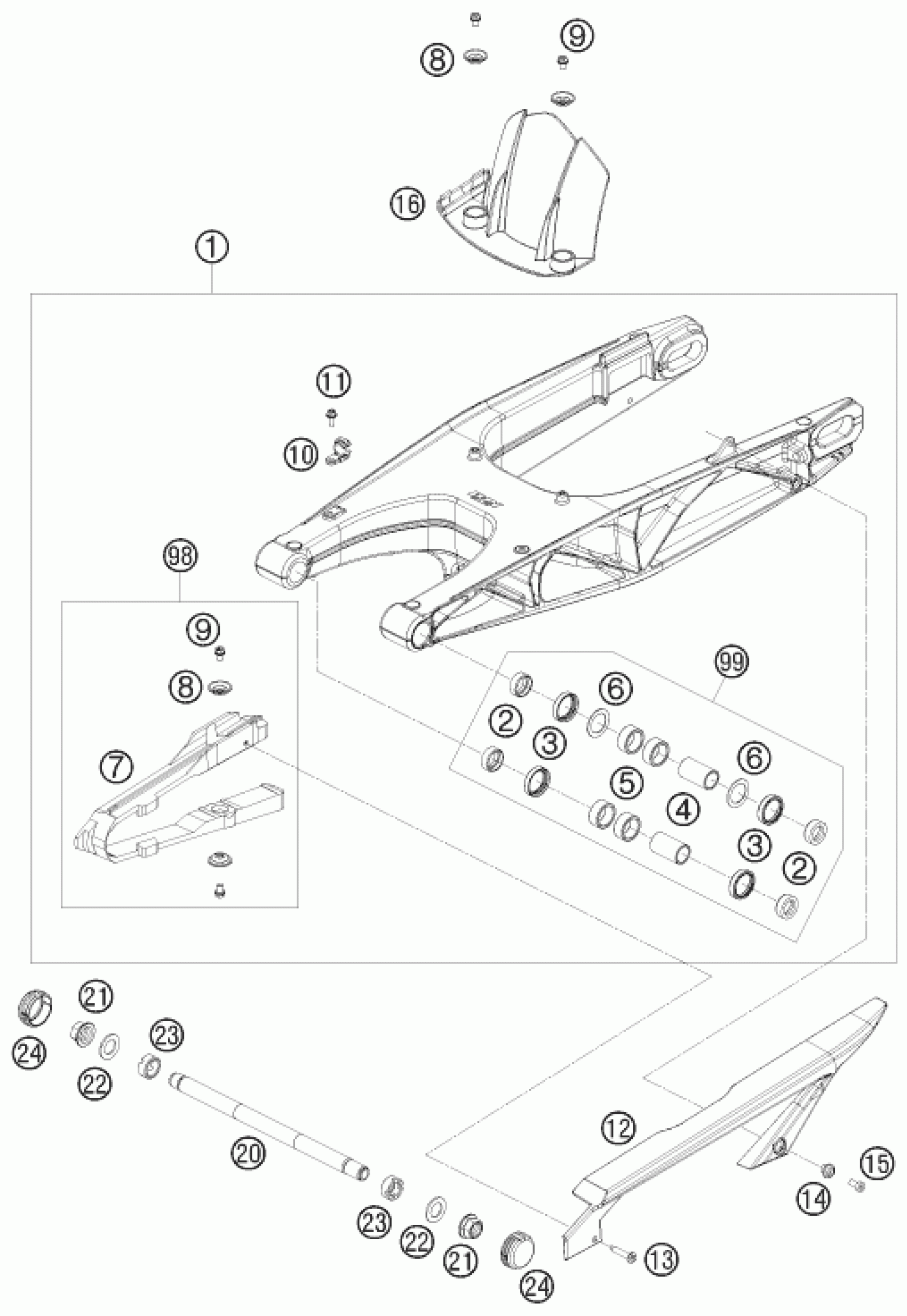

KTM 690 SUPERMOTO BLACK 2007 SWING ARM Diagram

PLASTIC CAP 07

CHAIN GUARD KIT

SWINGARM REP. KIT

SWING SM CPL. 07

Bucket f. shaft seal ring 03

radial shaft seal 25x32x7

Bearing sleeve 17x22x38.7 03

NEEDLE BEARING HK2212V

STOP DISK 22,2X31,7X1

CHAIN SLIDING PROTECTION 07

BUCKET

HH COLLAR SCREW M 6X8 WS=8

RET. CLAMP F. BRAKE HOSE BLACK

SPECIAL SCREW M 5,0X10

CHAIN GUARD

SPECIAL SCREW T60 6X30 WS=6

BUSHING MUD FLAP 07

AH SCREW DIN6912 M6X12

MUD FLAP 07

SWING ARM BOLT L=272MM 07

Nut with flange M16X1,5 WS=19

WASHER 07

ADJUSTING RING M24X1 , 5 07
