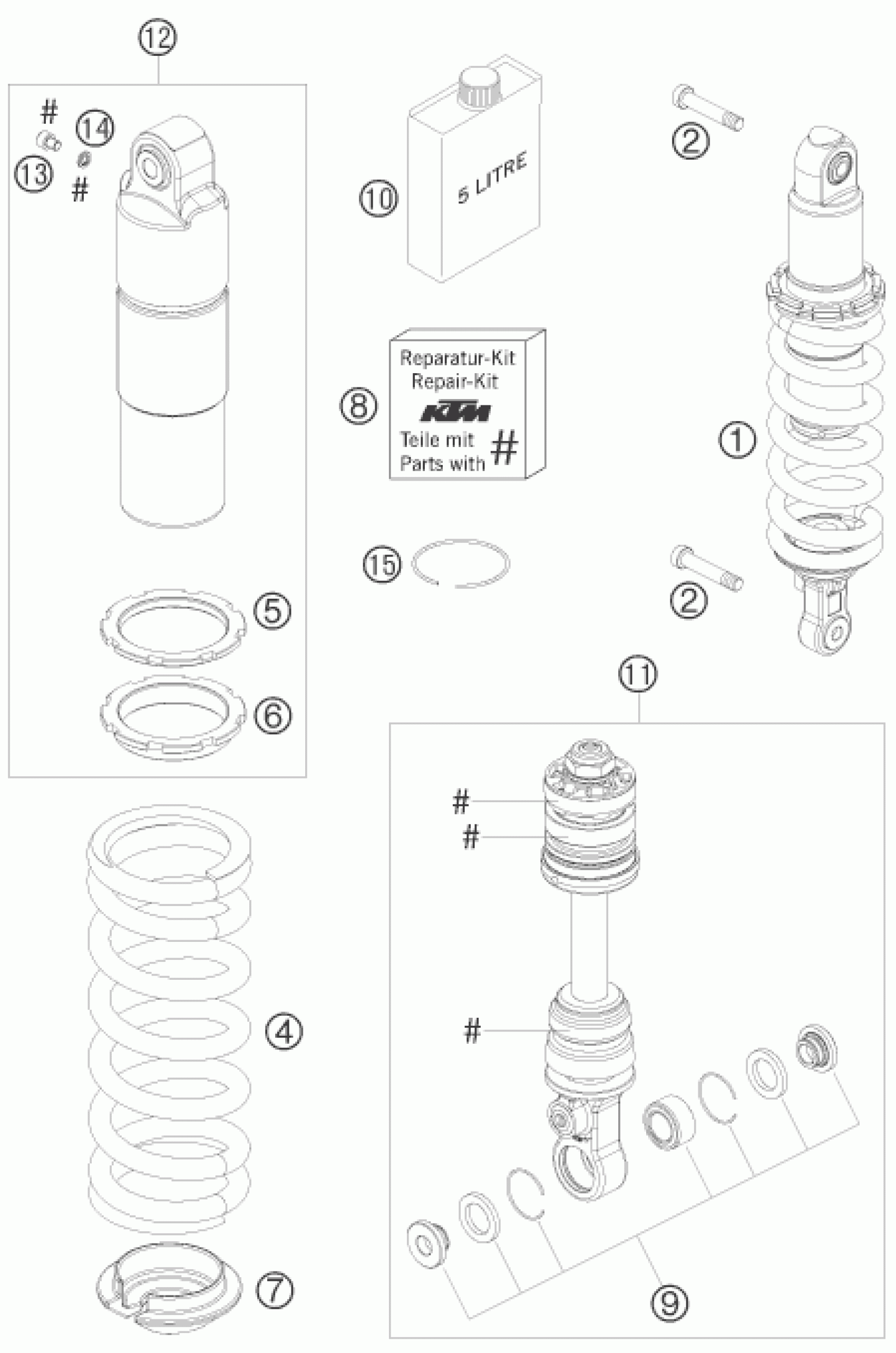

KTM 690 SUPERMOTO BLACK 2007 SHOCK ABSORBER Diagram

#

Description

Price

1

MONOSHOCK SM 07

15189C07

Unavailable

2

SCREW M 10 L=53MM 07

75004016000

$4.11

4

SPRING 65-230 (61) D=11,0

91110001S

Unavailable

5

COUNTERNUT

46180445

$26.14

6

ADJUSTING NUT

46180444

$64.15

7

Spring retainer 28x73x15

46180396

$61.42

8

REPAIR KIT GASKET 07

R15005

$83.39

9

REPAIR KIT BEARINGS 07

R15006

$100.65

10

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

11

MONOSHOCK LOWER PART CPL. 07

46180520S1

Unavailable

12

MONOSHOCK CASE TOP 07

46180635S

Unavailable

13

SCREW M5 C.K. RVS

36120785

$2.73

14

SEAL D5,21XD8,38X1,22

36120782

$10.84

15

Round-wire snap ring 49x1,5

46810010

$3.08
