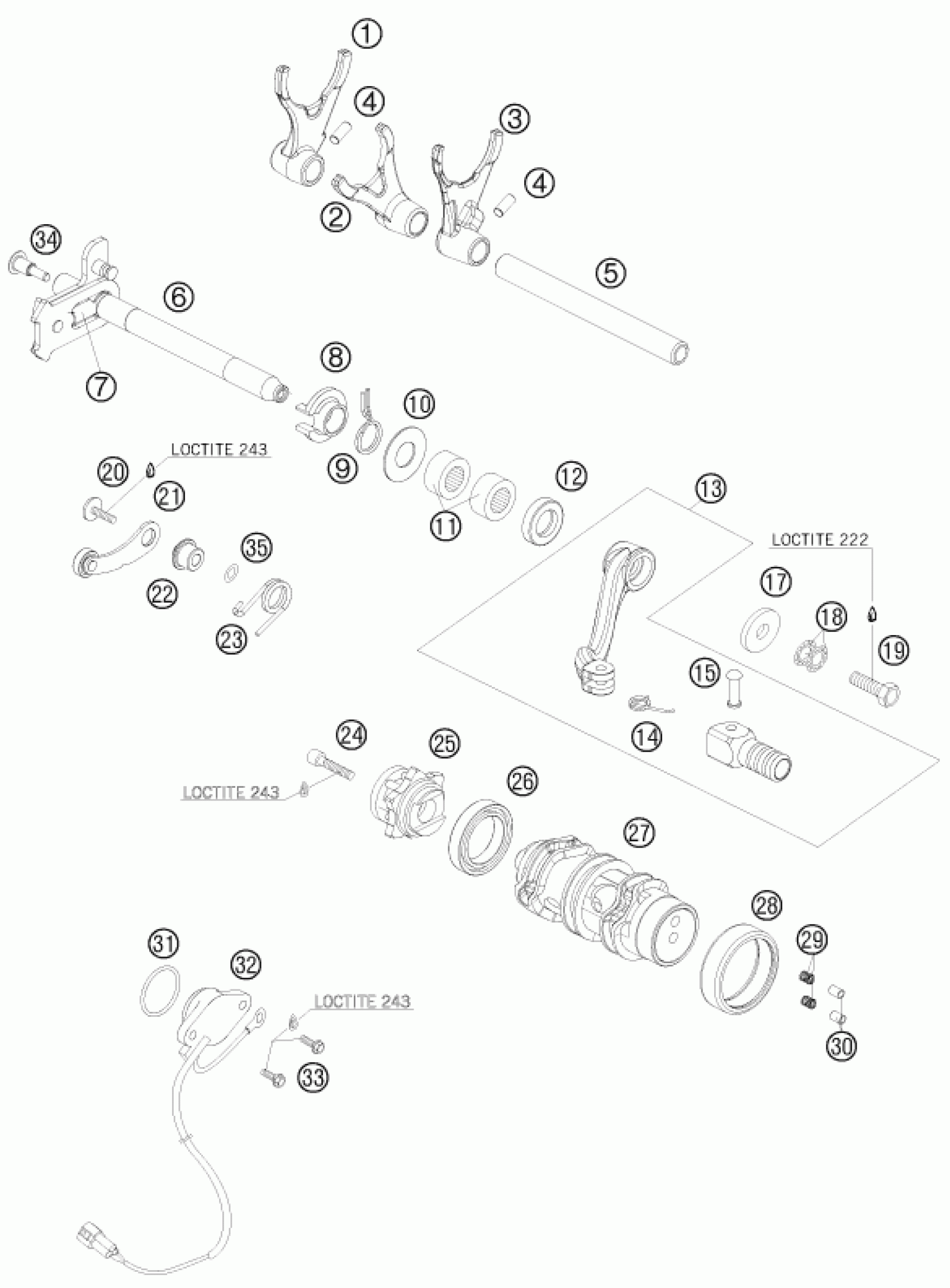

KTM 690 SUPERMOTO BLACK 2007 SHIFTING MECHANISM Diagram

#

Description
Price

35

spring washer DIN 137 B - 6

0137060003

$2.05

1

SHIFT FORK F SLIDINGGEAR 5 07

75034002000

$39.73

2

SHIFT FORK F. SLIDINGG. 3/4 07

75034001000

$38.51

3

SHIFT FORK F. SLIDINGGEAR 07

75034003000

$39.73

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

5

SHIFTRAIL 07

75034019000

$12.99

6

SHIFT SHAFT CPL. 07

75034005044

$83.95

7

TENSIONING SPRING 0,8MM

56534013100

$1.49

8

SPRING GUIDE

54634020000

$6.44

9

RETURN SPRING 2,2MM '95

54634014100

$6.63

10

STOP DISK 14X30X1

54634050000

$2.05

11

needle sleeve HK 1412 14x20x12

54632095000

$7.00

12

SHAFT SEAL RING 14X24X6B VITON

0760142461

$6.63

13

SHIFT LEVER CPL. 07

75034031000

$88.35

14

SHIFTING LEVER SPRING

75034032000

$3.08

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

17

STEEL WASHER 6,4X17X3

50232050001

$5.23

18

Pair of washers M6 NORDLOCK

50233041000

$4.11

19

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

20

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

21

LOCKING LEVER CPL. 07

75034024044

$19.16

22

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

24

AH SCREW DIN6912 M 6X30

0984060302

$1.49

25

SHIFT DRUM LOCATING CPL. 07

75034015000

$21.78

26

BALL BRG 6805 C4 NTN JAPAN

0625068050

$43.94

27

SHIFT ROLLER CPL. 07

75034012044

$84.53

28

NEEDLE BEAR HK3512 35X42X12

0618354212

$9.90

29

CONTACT SPRING 03

60034014000

$1.49

30

CONTACT BOLT 03

60034037000

$4.11

31

O-RING 27,5X2,5 NBR

0770275025

$1.49

32

GEAR-POSITION SENSOR 06

60011023100

$46.74

33

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

34

SPACER

75034006000

$8.78
