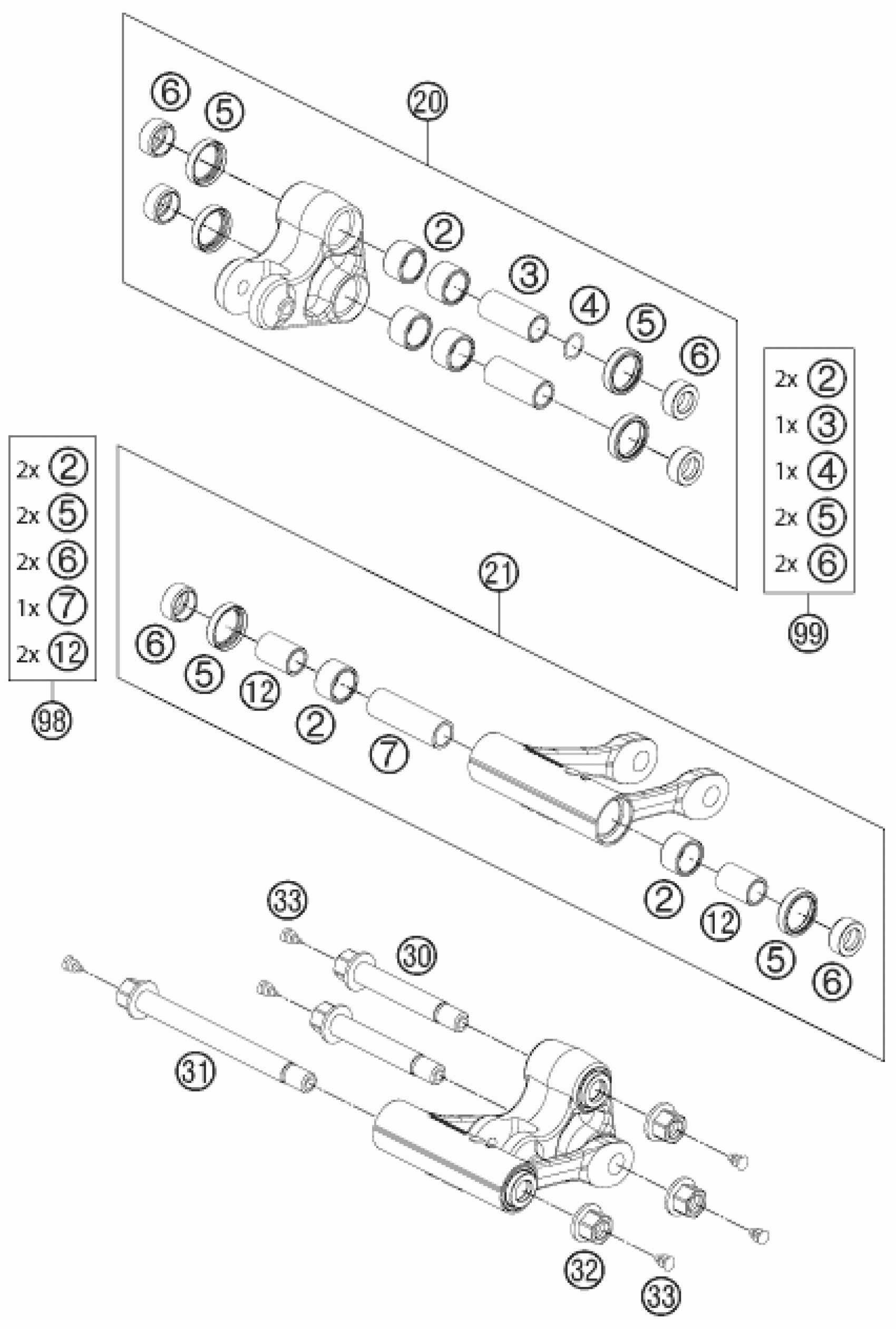

KTM 690 SUPERMOTO BLACK 2007 PRO LEVER LINKING Diagram

Needle bushing HK 2016 / 20x26

54603097000

$15.04

Bushing sleeve 15x20x48

54603081000

$24.77

STEEL WASHER 15,2X19X0,2

54603090020

$2.05

radial shaft seal 25x32x7

0760253270

$6.63

SPAC.F.SHAFT SEALRING 15X25X11

58303090000

$7.75

SPACER SLEEVE 15X20X63 07

75004084000

$9.06

BEARING BUSHING

50203081800

$7.75

SETTING LEVER CPL. 07

7500408004401

Unavailable

INTERMEDIATE LEVER CPL. 07

7500408304401

$139.40

BOLT CPL.

54603182044

$45.06

BOLT CPL. M14X1,5 L=175MM 07

75004085044

$42.72

Self locking nut M14x1.5 WS19

54603015000

$5.51

PLASTIC CAP SFL10

54403135000

$2.05

PULL ROD REP. KIT 690 DUKE

75004083010

Unavailable

TRIANGLE LEVER REP. KIT REAR

75004080100

Unavailable
