LUBRICATING SYSTEM

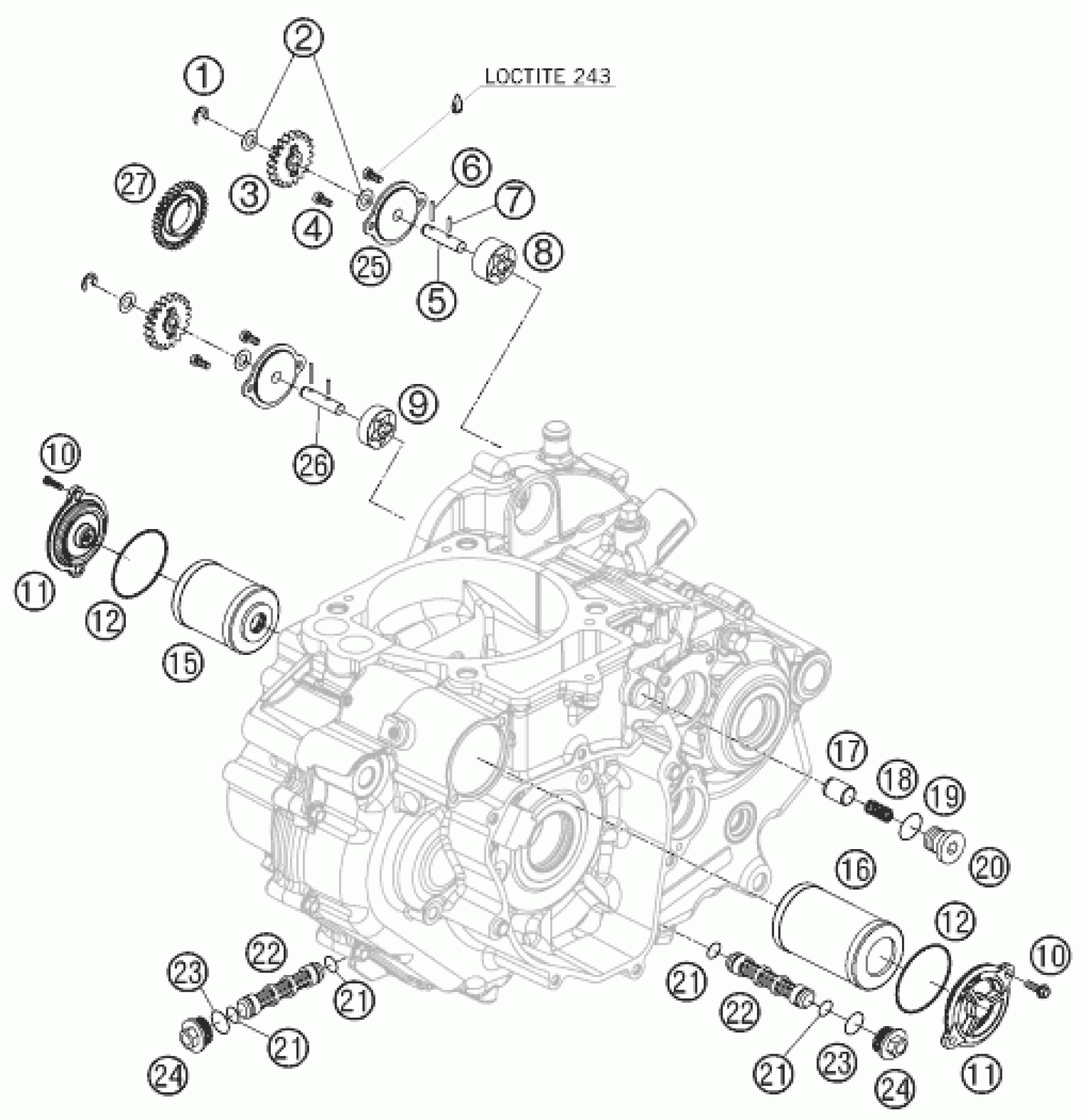

KTM 690 SUPERMOTO BLACK 2007 LUBRICATING SYSTEM Diagram
#
Description
Price
1
TAB WASHER DIN6799-RS 6,0
0799060000
$2.05
2
STOP DISK 8,1 X 15 X 0,5
58038007755
$2.05
3
OIL PUMP GEAR 20-T
75038001020
$5.23
4
AH SCREW DIN6912 M5X10 8.8
0984050103
$1.49
5
OIL PUMP SHAFT 07
75038002000
$8.78
6
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$1.49
7
NEEDLE ROLLER DIN5402 2,5X11,8
0402251180
$1.49
8
OILPUMP ROTOR 15MM G-164
77038011000
$43.75
9
OILPUMP ROTOR CPL. 10MM G-73R
59038011010
$32.53
10
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
11
oil filter cover
75038041200
$8.13
12
O-RING 39,34X2,62
07700390261
$2.05
15
OIL FILTER SHORT
59038046100
$8.22
16
OIL FILTER LONG
58038005100
$10.46
17
VALVE PISTON D=10MM
58038028000
$37.77
18
OIL PRES.SPRING 5 BAR RED 2001
58538023000
$7.94
19
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
20
threaded plug DIN 908 M12x1.5
0908120153
$4.11
21
O-RING 12,5X1,5 VITON V75
07701250151
$4.11
22
OIL SCREEN 15X83MM
59038016000
$7.00
23
o-ring 18.00x2.00 NBR70
0770180020
$2.05
24
PLUG M20X1,5 WS=13
59038017000
$7.85
25
OIL PUMP COVER 07
75038003000
$6.91
26
OIL PUMP SHAFT 07
75038004000
$8.78
27
OIL PUMP DRIVE WHEEL 07
75032050001
$4.11
