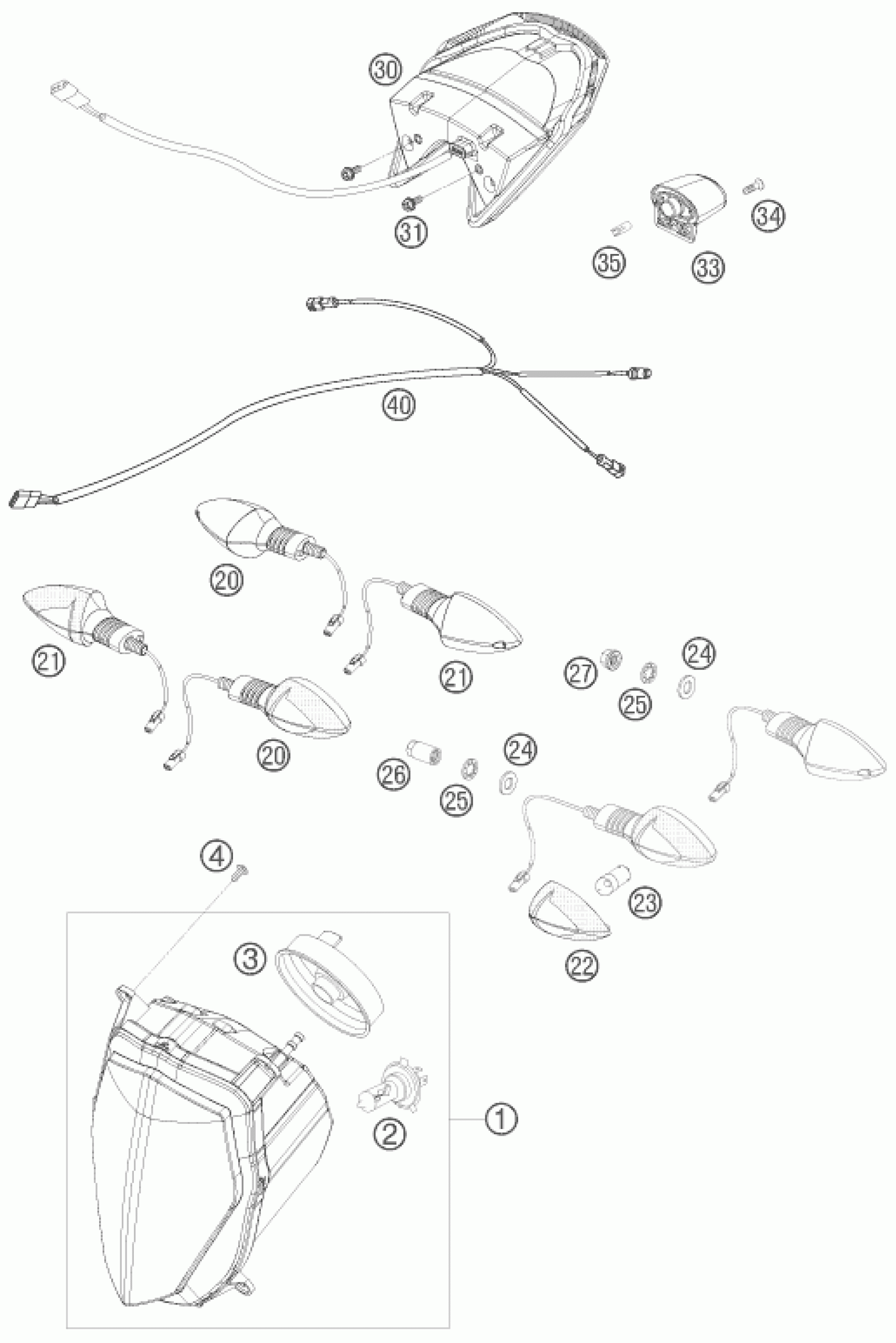

KTM 690 SUPERMOTO BLACK 2007 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT LC4 07

75014001000

Unavailable

2

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

3

RUBBER CAP FOR HEAD LIGHT 07

75014001050

Unavailable

4

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

23

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

FLASHER NUT M10X1,25 WS12

75014030000

Unavailable

27

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT LED 07

75014040000

Unavailable

31

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

33

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

34

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

40

WIRING HARNESS REAR 07

75011076000

Unavailable
