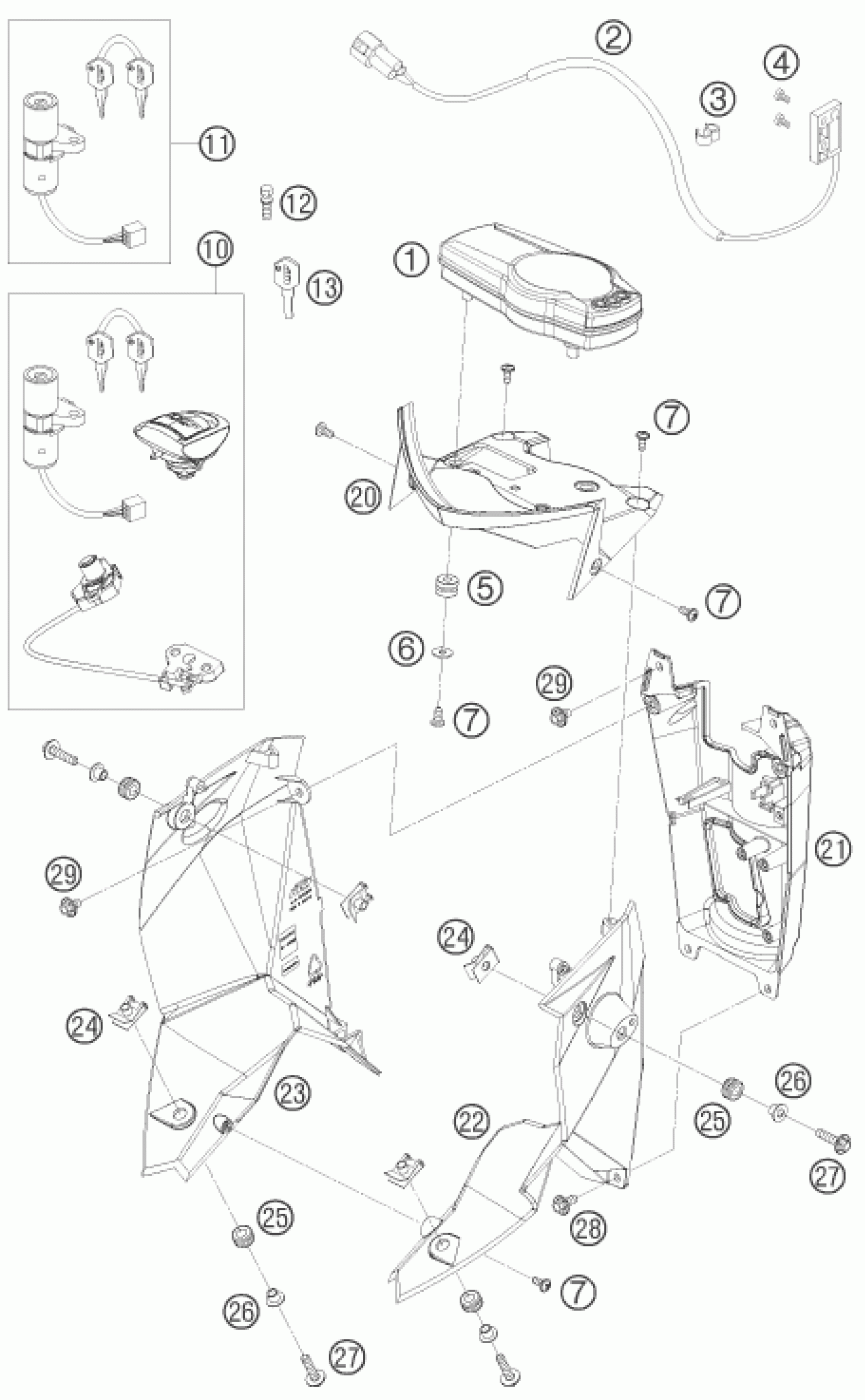

KTM 690 SUPERMOTO BLACK 2007 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER 07

75014069000

Unavailable

2

SPEEDOMETER SENSOR 06

62514068100

Unavailable

3

CLIP 5/7 MM 06

60111094000

Unavailable

4

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable

7

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

10

LOCK SYSTEM 07

75011066044

Unavailable

11

IGNITION LOCK 99

58411066100

Unavailable

12

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

13

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

20

SPEEDOMETER BRACKET 07

75014060000

Unavailable

21

COVER 07

75014064000

Unavailable

22

MASK BRACKET L/S 07

75014062000

Unavailable

23

MASK BRACKET R/S 07

75014063000

Unavailable

24

clip nut M6

54603048100

Unavailable

27

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

28

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

29

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

25

rubber grommet D=8mm open

31008060000

Unavailable

26

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable
