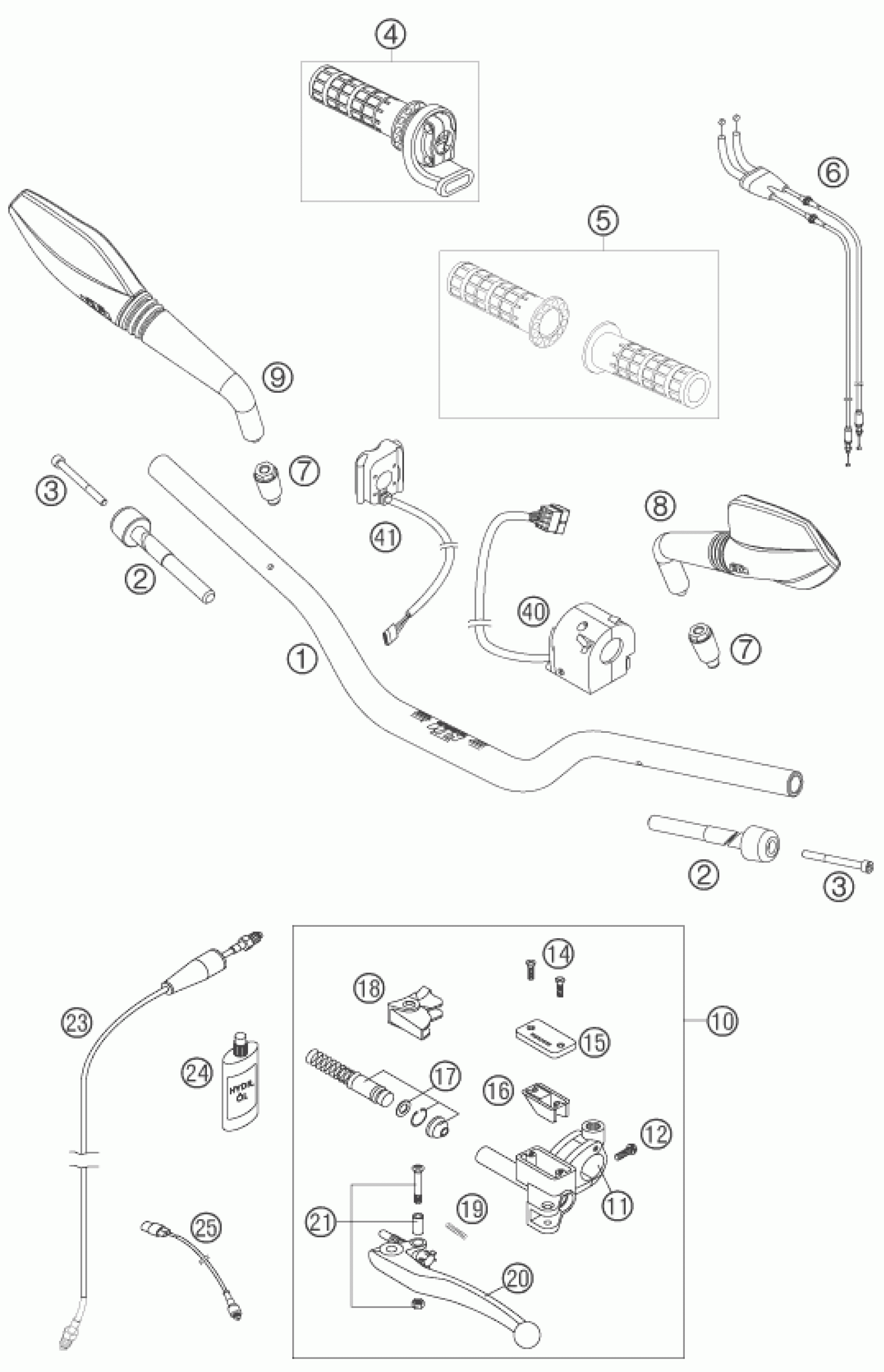

KTM 690 SUPERMOTO BLACK 2007 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM 07

75002001000

Unavailable

2

handlebar weight

61002004000

Unavailable

3

SHCS DIN 912 M6x65

0912060653

Unavailable

4

THROTTLE GRIP CPL. 07

75002010000

Unavailable

5

GRIPP SET FULL WAFFLE

58302021100

Unavailable

6

THROTTLE CABLE 07

75002091000

Unavailable

7

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

8

REVIEW MIRROR L/S 07

61112040000

Unavailable

9

REVIEW MIRROR R/S 07

61112041000

Unavailable

10

MASTER CYLINDER CPL. 11MM 07

75002030000

Unavailable

11

CLAMP MIRROR WITH CLAMP

60002044000

Unavailable

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

15

COVER FOR HYDR. CLUTCH '98

50302033000

Unavailable

16

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

17

REP.SET PISTON 11MM 07

75002032000

Unavailable

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

19

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

20

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

21

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

23

CLUTCH PIPE SM 07

75032063000

Unavailable

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

25

CLUTCH SWITCH 03

58411049100

Unavailable

40

LIGHT SWITCH 05

61011070000

Unavailable

41

START-STOP SWITCH AD LC4 02

58411074100

Unavailable
