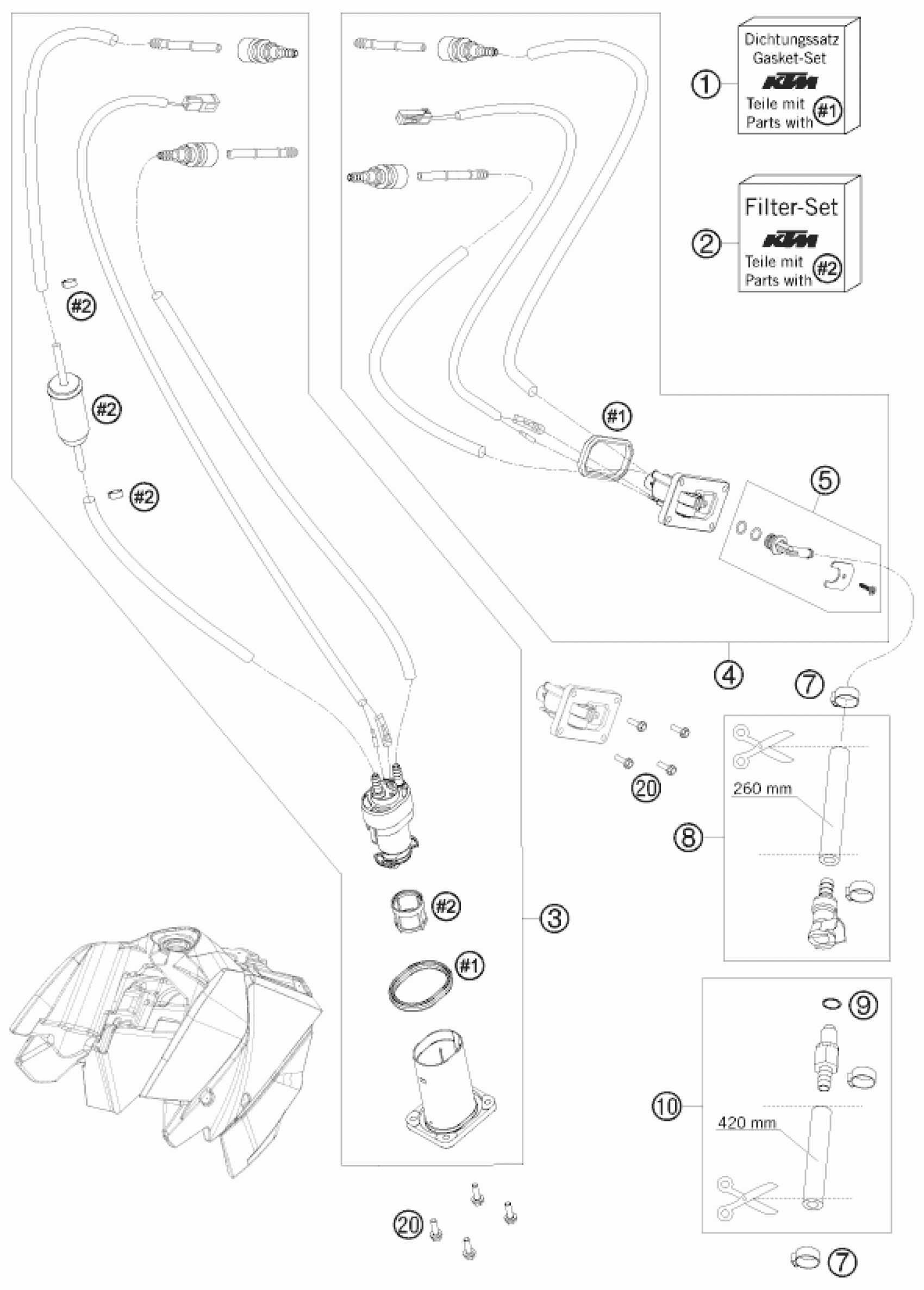

KTM 690 SUPERMOTO BLACK 2007 FUEL PUMP Diagram

#

Description

Price

1

SEALINGS KIT

75007089000

$82.36

2

FILTER KIT

75007090000

$74.04

3

FUEL PUMP WITH FLANGE CPL.

75007088011

$585.96

4

PRESSURE REGULATOR CPL. 07

75007088012

$257.86

5

HYDRAULIC CONNECTOR CPL.

75007092000

$56.84

20

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

7

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

8

FUEL HOSE WITH CLUTCH

75007116060

$54.78

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE WITH CLUTCH

75007016050

$61.05
