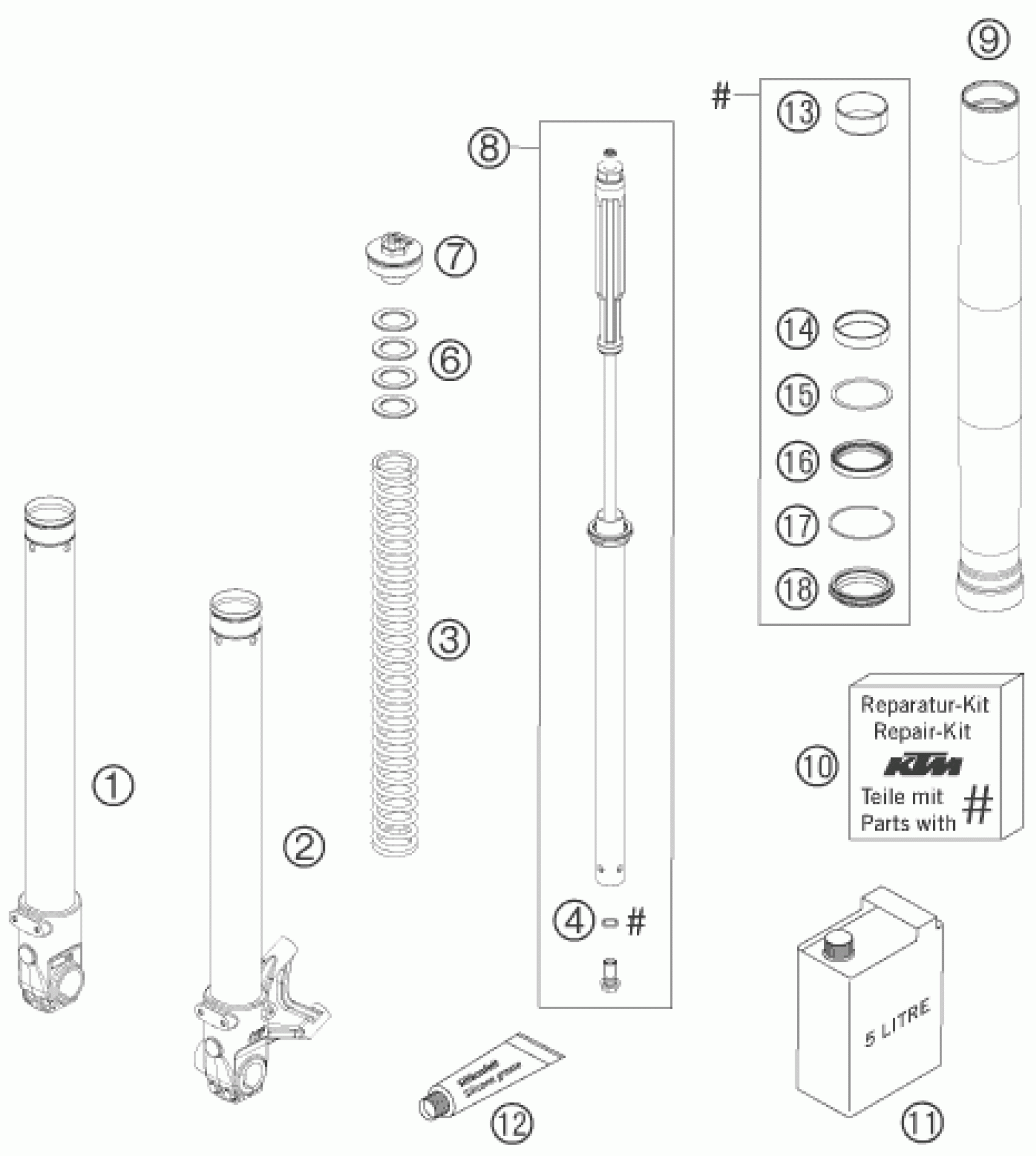

KTM 690 SUPERMOTO BLACK 2007 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

4

Copperwasher 12x16x1,5

46810146

Unavailable

1

AXLE CLAMP R/S CPL. 07

48600585S1

Unavailable

2

AXLE CLAMP L/S CPL. 07

48600584S1

Unavailable

3

SPRING 5,2N/MM L=415 D=5,1

91410057S

Unavailable

6

Preload bush 26,5x42x10

48600038

Unavailable

6

Preload bush 26,5x42x5

48600037

Unavailable

6

Preload bush 42x26,5x2,5

48600036

Unavailable

6

Preload bush 26,5x42x1,5

48600053

Unavailable

7

Screw cap M51X1.5 cmpl. 0

48600558S

Unavailable

8

CARTRIDGE CPL. 07

48600583S1

Unavailable

9

OUTER TUBE L=550MM D=54/60

48600484

Unavailable

10

REPAIR-KIT GASKET 05

R14011

Unavailable

11

FORK OIL SAE5 5L 2005

48600401S1

Unavailable

12

SILICONE GREASE F. DUST STRI

T511

Unavailable

13

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

14

DU-BUSH D48XD52X12DDL02

48600429

Unavailable

15

Supportwasher 50x57,6x1,5

48600013

Unavailable

16

OIL SEAL RING 48X57,8X9,5 03

48600347

Unavailable

17

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

18

DUST CAP D=48 58,4X11,8

48600400

Unavailable
