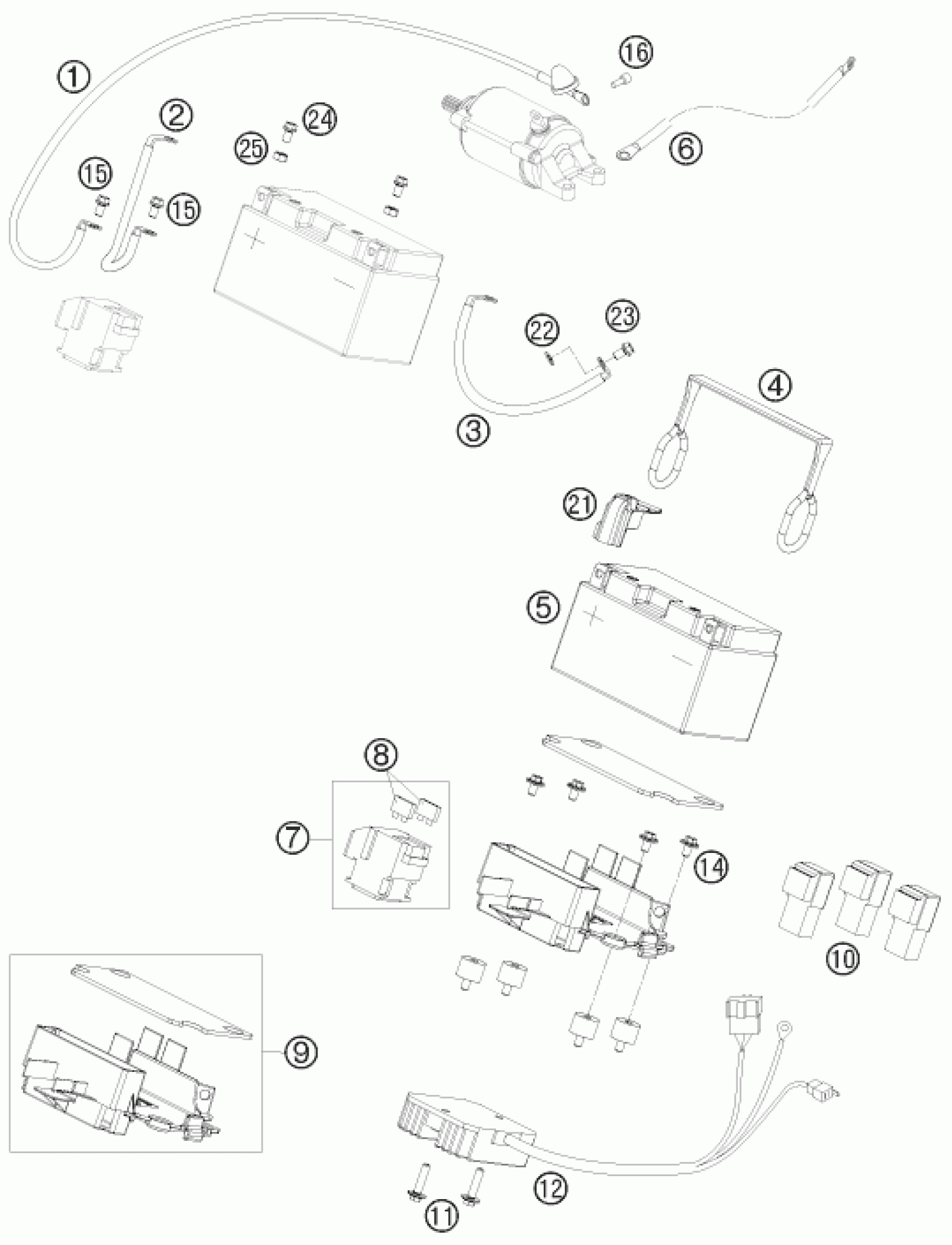

KTM 690 SUPERMOTO BLACK 2007 BATTERY Diagram

#

Description
Price

23

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

24

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

25

Hex. nut DIN 934 M6

0934060003

$1.49

1

STARTER CABLE 07

75011059000

$14.19

2

BATTERY CABLE 07

75011059050

$8.79

3

GROUND CABLE 07

75011097000

$15.70

4

BRACKET RUBBER FOR BATTERY 07

75011056000

$5.92

5

BATTERY 12V 8,6AH 03

58411053100

$309.38

7

STARTER RELAY 03

60011058000

$76.38

8

Plug-in fuse, big 30A

58011109130

$2.05

9

BATTERY BRACKET CPL. 07

75011054033

$12.86

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

COLLAR SCREW M6X27 TX

0024060273

$3.08

12

VOLTAGE REGULATOR LC8 03

60011034000

$160.34

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

15

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

SHCS DIN 912 M5x8

0912050083

$1.49

21

POSITIVE POLE COVER 07

75011059060

$3.48

22

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

6

GROUND CABLE L=450MM 05

61011097000

$9.44
