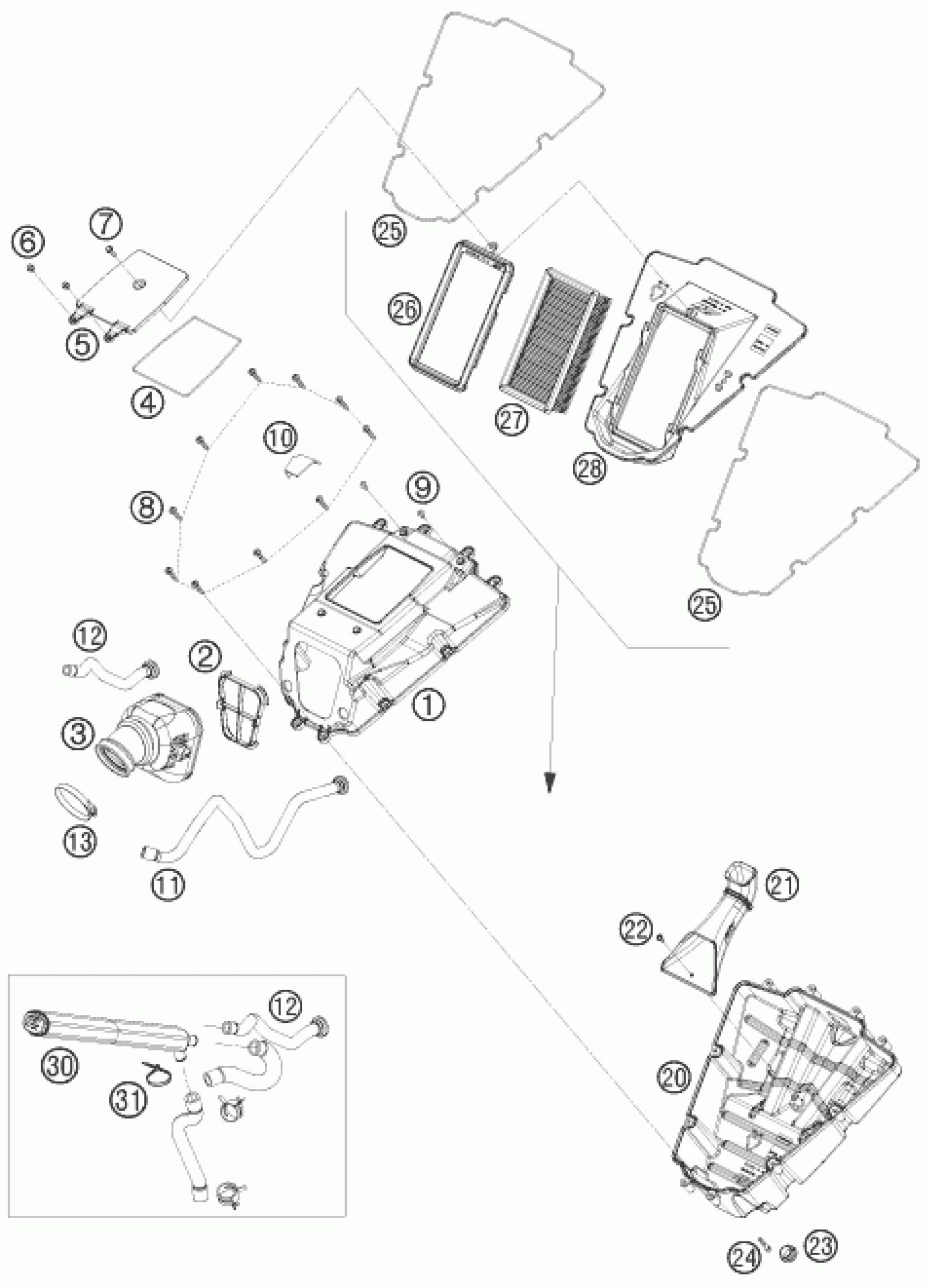

KTM 690 SUPERMOTO BLACK 2007 AIR FILTER Diagram

#

Description
Price

1

AIRBOX UPPER-PART

75006001010

$13.24

2

AIRBOX SUPPORT

75006001040

Unavailable

3

INTAKE TRUMPET

75006026000

$16.67

4

GASKET FILTER BOX COVER 07

75006091000

$2.61

5

FILTER BOX COVER 07

75006002000

$4.43

6

HH COLLAR SCREW M 5X10 WS=8

0015050103

$1.49

7

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

8

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

9

SCREW TORX M5X10 05

58605083010

$2.05

10

METAMOL FOR AIR FILTER BOX 07

75006001015

$2.61

11

HOSE SLS AIRFILTERBOX 07

75005032000

Unavailable

12

HOSE OIL SEPARATOR - BREATH.07

75030088000

$19.60

13

HOSE CLAMP 50-70MM

51006027000

$6.07

20

AIRBOX LOWER-PART 07

75006001020

$12.52

21

INTAKE SNORKEL 07

75006040000

$5.03

22

SCREW FOR PLASTIC 50X12

0016050121

$2.05

23

PLUG SFL28 05

61003088000

$2.05

24

AH SCREW DIN0912-M 5X30

0912050303

$1.49

25

GASKET FILTER BOX 07

75006090000

$4.35

26

FILTER FRAME 07

75006001050

$4.03

27

AIRFILTER

75006015000

$13.64

28

AIRBOX MIDDLE-PART 07

75006001030

$9.06

30

OIL SEPARATOR FOAM 07

75030087000

$22.62

31

Cable tie 200/4.6mm black

44011076200

$1.49
