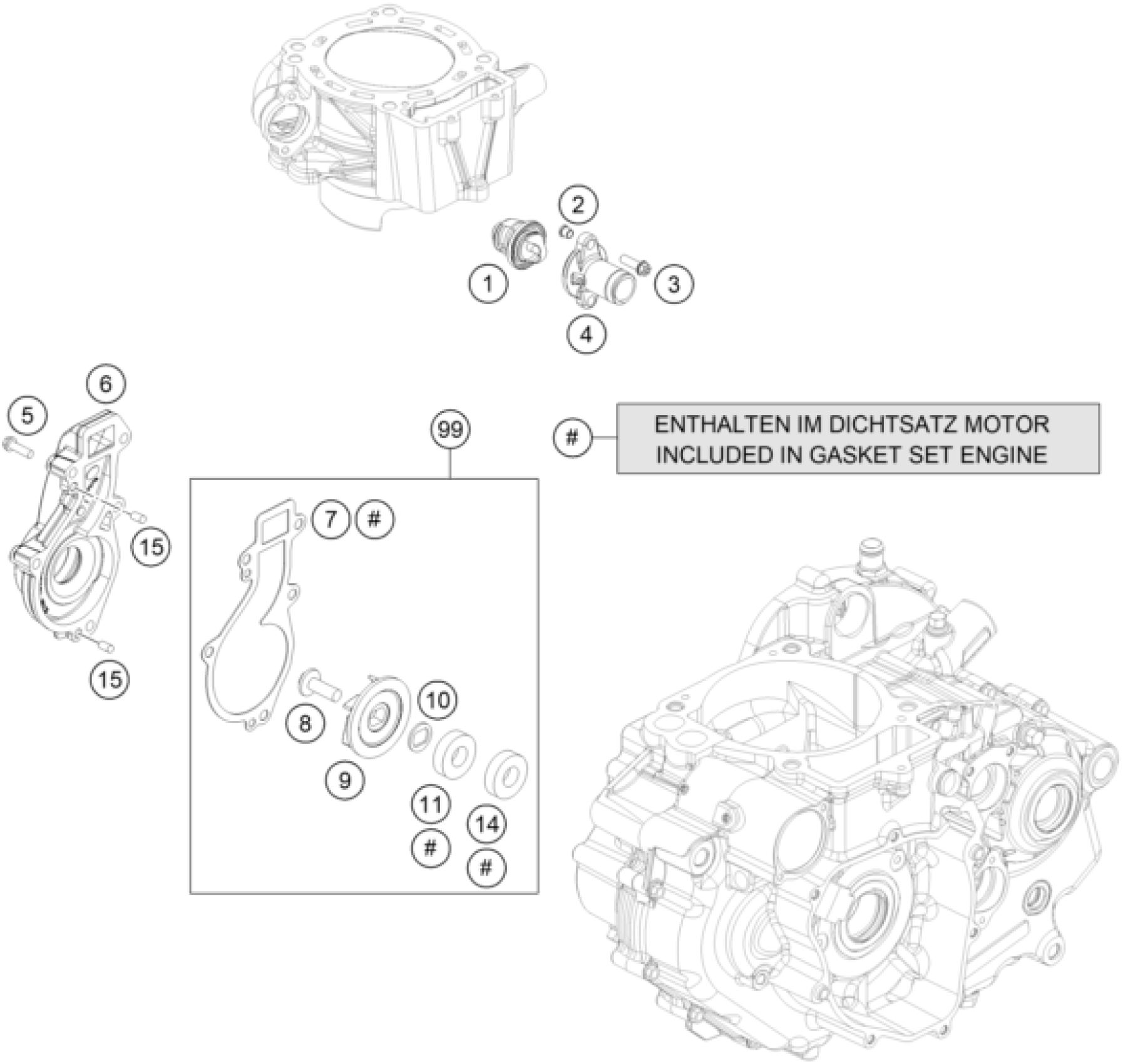

KTM 690 SMC R ABS 2016 WATER PUMP Diagram

#

Description
Price

2

SUPPORTING SLEEVE 03

60040027050

$6.35

1

THERMOSTAT 07

75035017000

$28.60

3

HH collar screw M6x20 TX30

0025060206

$3.08

4

THERMOSTATCOVER 07

75035016000

$6.54

5

HH collar screw M6x30 TX30

0025060306

$3.08

6

WATERPUMP COVER 10

7503505210033

$101.06

7

WATER PUMP COVER GASKET 07

75035053000

$6.91

8

HH collar screw M6x15 TX30

0024060156

$3.08

9

WATER PUMP ROTOR 07

75035055000

$4.11

10

double-d washer 16x1 SST

60035055150

$1.49

11

SHAFT SEAL RING. 12X30X7 VITON

0760123071

$7.75

14

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

15

GROOVED PIN DIN1474 5X10

0474050100

$2.05

99

WATER PUMP REP. KIT 690

75035055010

Unavailable
