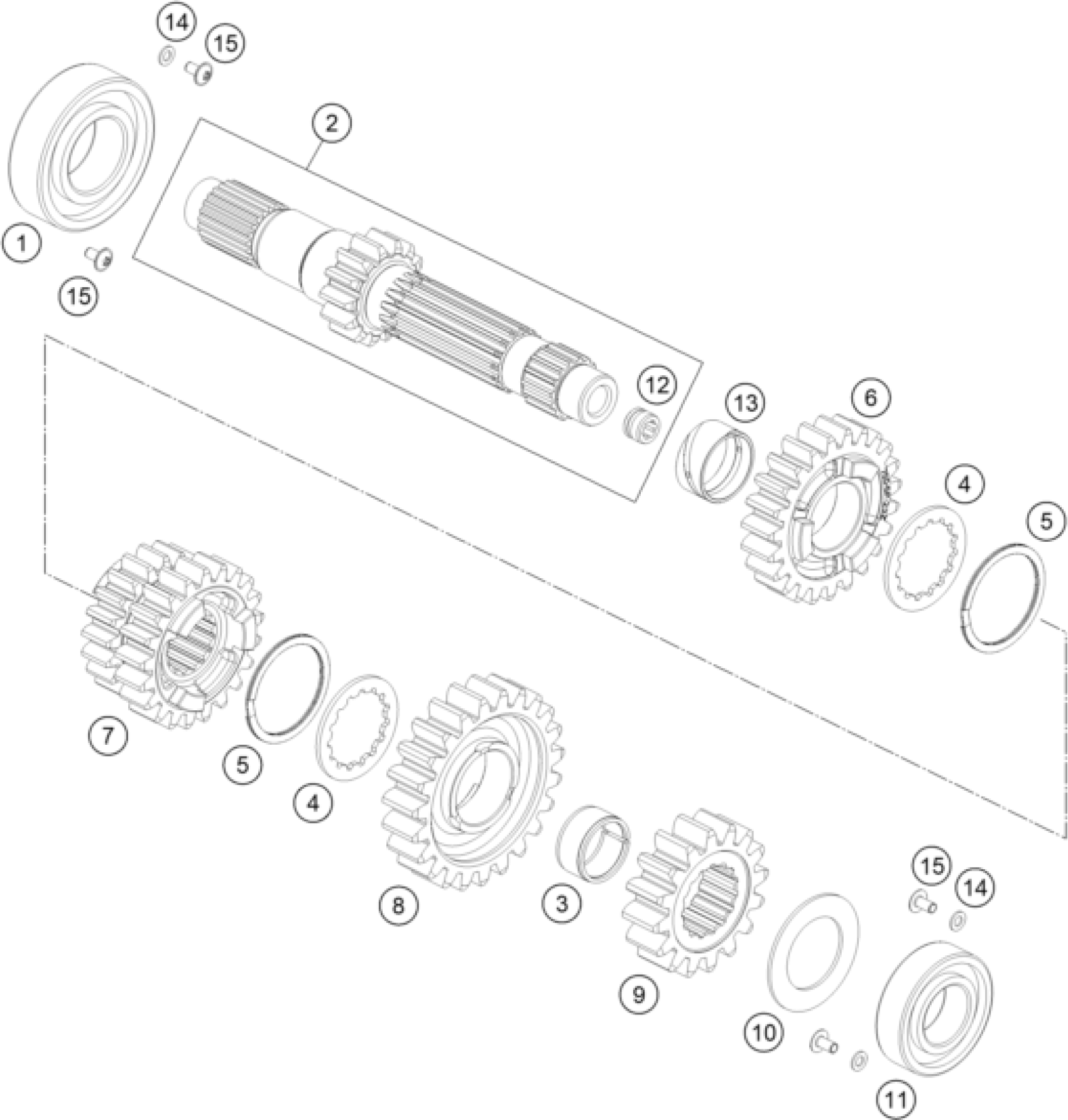

KTM 690 SMC R ABS 2016 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

BALL BEARING 58/28 C4 N

06252858161

$19.53

2

MAIN SHAFT

76233001000

$450.94

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

4

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

5

CIRCLIP D25

0471025000

$6.07

6

IDLER GEAR 5.G.

75033105000

$71.99

7

3/4TH GEAR MAINSHAFT

75033003020

$147.44

8

IDLER 6. GEAR 07

75033006000

$150.15

9

SOLID GEAR 2.G. 07

75033002000

$63.95

10

Shim 20x31.9x1

59033080000

$2.05

11

BALL BEARING 6004 DDUN C4

0625060044

$12.99

12

GUIDE BUSHING

77333001160

$5.23

13

BUSHING 25X28X13

76233022200

$105.09

14

washer DIN 9021 A - 5.3

0021050003

$1.49

15

PAN HEAD SCREW M5X10 TX25

073800501002

$1.49
