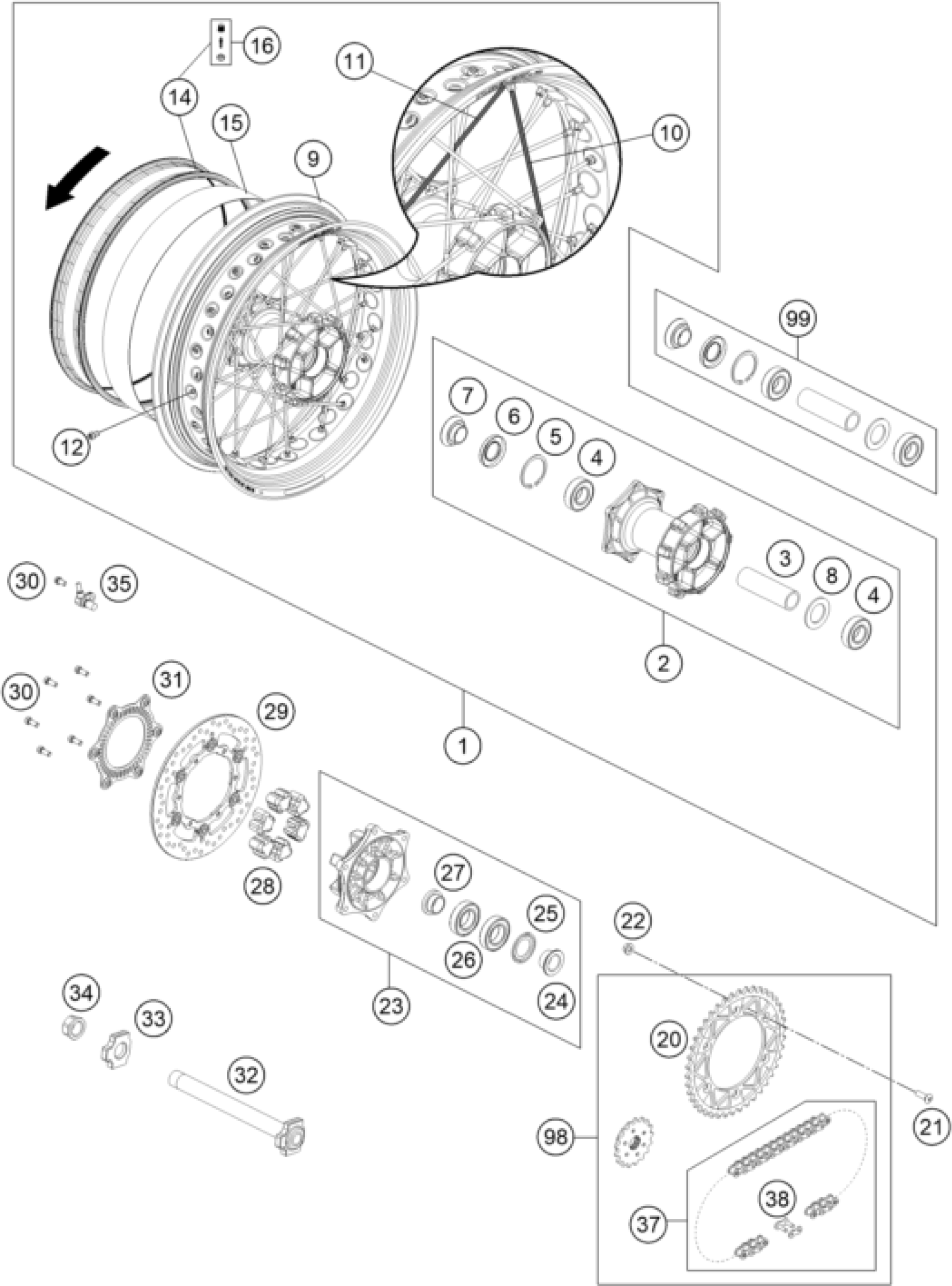

KTM 690 SMC R ABS 2016 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL.5X17'' TL ORANG

7501010114404S

Unavailable

3

BEARING SPACER TUBE L=106MM 07

75310011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

REAR RIM 5,0X17 TL

7501047000004S

Unavailable

10

SPOKE M4,5X196-16G 17'' INOX

75010073196

Unavailable

11

SPOKE M4,5X0,75X181

81210171181

Unavailable

29

BRAKE DISK REAR D=240

76510160000

Unavailable

30

SHCS ISO 14580 M6x16 SL

014580060166S

Unavailable

31

SENSOR WHEEL ABS REAR

76542021000

Unavailable

2

REAR WHEEL HUB CPL. BLACK

7531001004433

Unavailable

12

SPOKE NIPPLE QUADRAX M4,5

81210072100

Unavailable

15

RIM BAND 17''X 5.00''

75010073000

Unavailable

16

VALVE CPL.

81210076000

Unavailable

20

REAR SPROCKET ORANGE 40-T

5841005104004

Unavailable

20

REAR SPROCKET ORANGE 42-T

5841005104204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

25

NILOS RING 6006AV

60110016000

Unavailable

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

32

WHEEL SPINDLE CPL.

75310085144

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

35

ABS-SENSOR

76042025000

Unavailable

37

chain DID 118 roll

76910065118

Unavailable

38

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

98

DRIVETRAIN KIT 690 SMC 16T/42T

00050002024

Unavailable

99

REAR WHEEL REP. KIT

75010015000

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

14

GASKET RUB. 17X5'' CPL.W. VALV

75010177044

Unavailable
