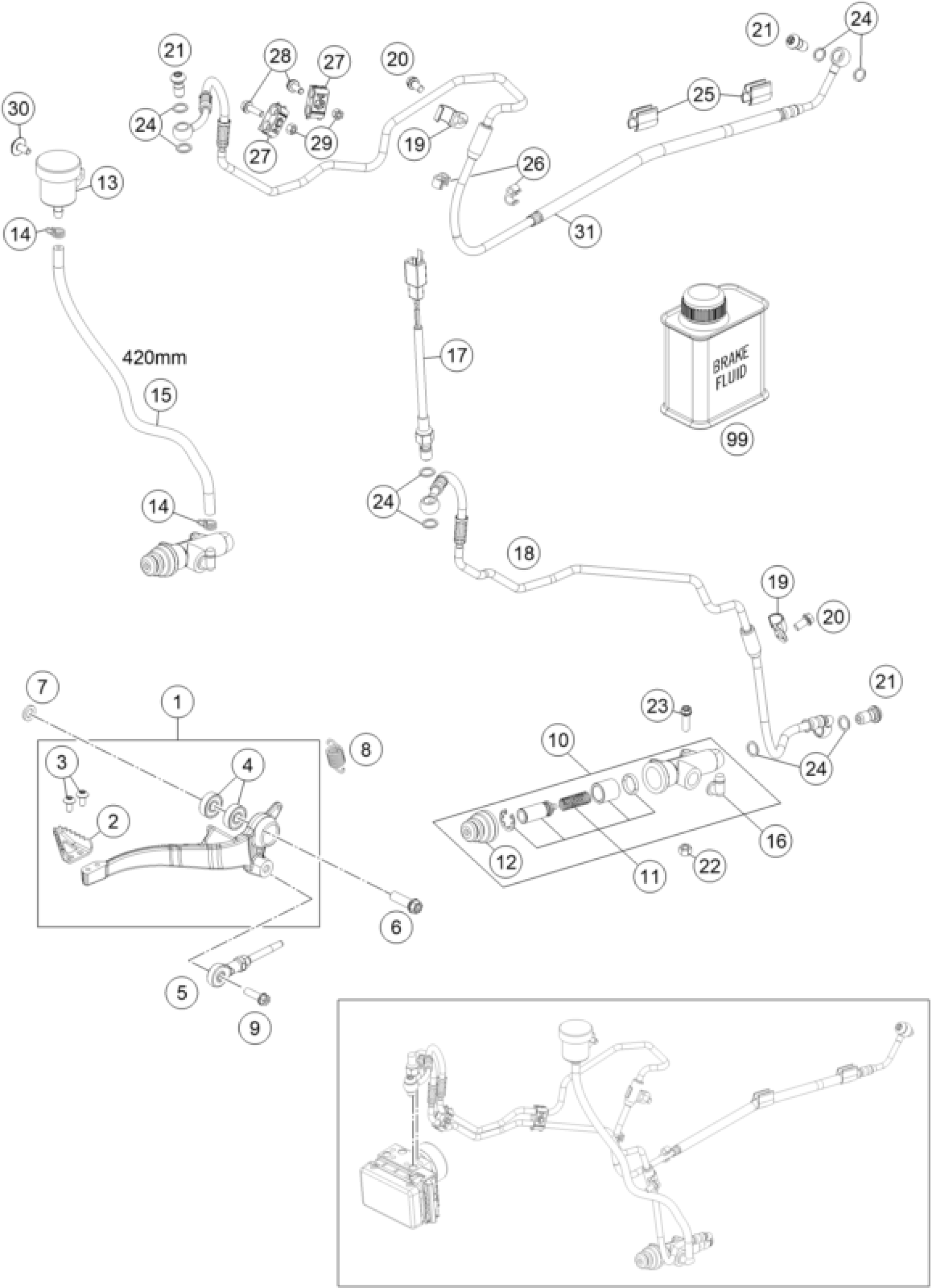

KTM 690 SMC R ABS 2016 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER CPL. 11

7651305024401

$123.69

2

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

3

SCREW TORX M5X10

78105081010

$2.05

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

PUSH ROD CPL.

76513056144

$22.52

6

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

7

washer DIN 125 A -8.4

0125080003

$1.49

8

RETURN SPRING FOR BRAKE LEVER

54603062100

$6.54

9

HH collar screw M6x20 TX30

0025060206S

$2.05

10

MAIN BRAKE CYLINDER '89

54513101044

$126.73

11

REPAIR KIT PISTON 13MM

76513061000

$59.08

12

RUBBER SLEEVE

54513151000

$17.48

13

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

14

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

15

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

16

ANGLE PIECE

54513155000

$14.58

17

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

18

BRAKE HOSE REAR MASTER CYL.

76542003000

$128.74

19

CLAMP

76542050000

$4.11

20

HH collar screw M6x12 TX30

0025060126

$3.08

21

banjo bolt M10x1x19.5

62113020100

$8.78

22

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

23

HH collar screw M6x25 TX30

0025060256

$3.08

24

sealing ring DIN 7603 10x14x1

0603100141

$2.05

25

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

26

CLIP 5/7 MM 06

60111094000

$3.08

27

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

28

HH collar screw M5x16 TX30

0025050166

$2.05

29

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

30

HH collar screw M6x13 TX30

0024060136

$3.08

31

BRAKE HOSE REAR CALIPER

76542001000

$150.62

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52
