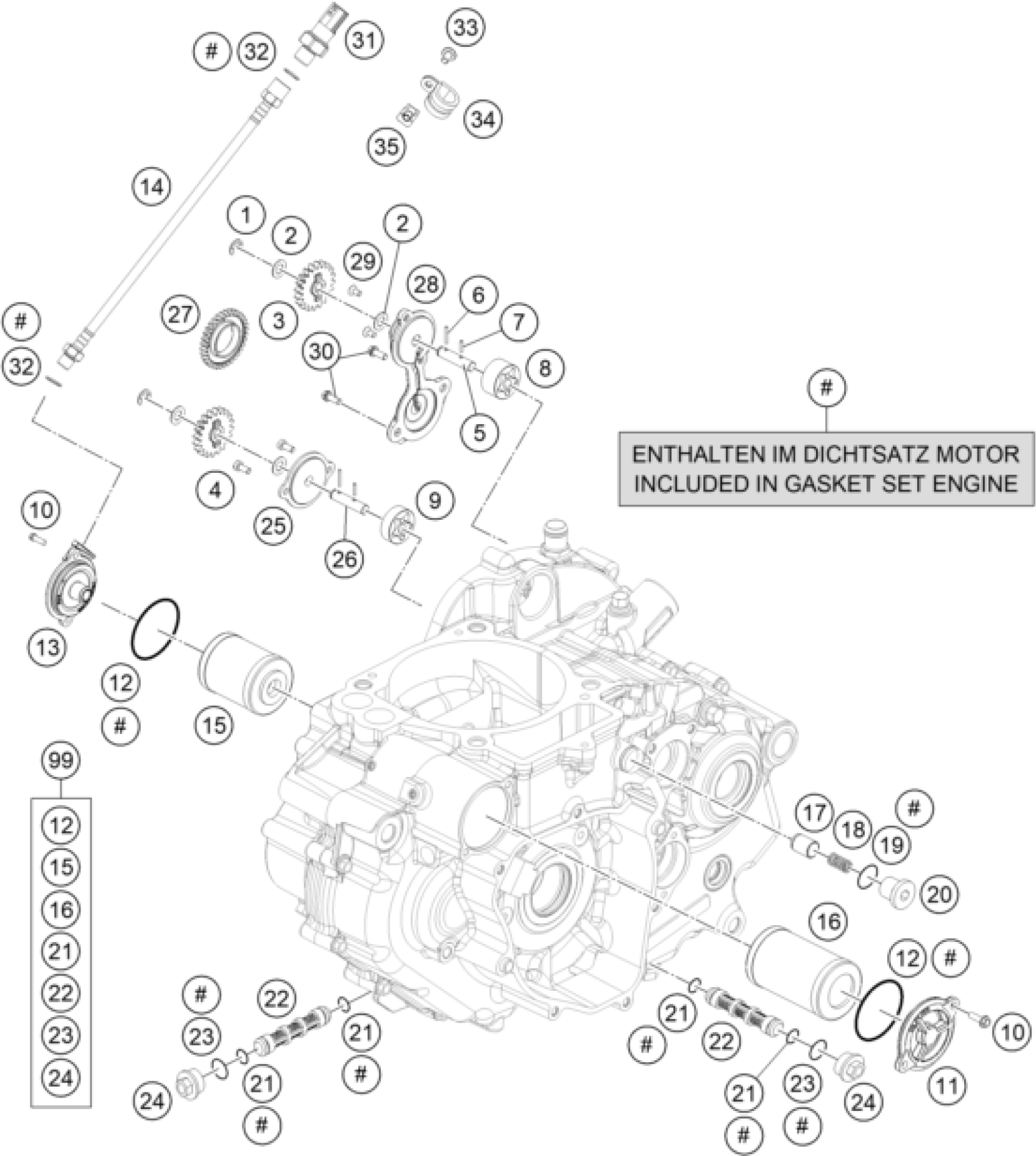

KTM 690 SMC R ABS 2016 LUBRICATING SYSTEM Diagram

#

Description
Price

2

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

1

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

3

OIL PUMP GEAR 20-T

75038001020

Unavailable

4

AH SCREW DIN7984 M5X10 A2

07984050100

Unavailable

5

OIL PUMP SHAFT 07

75038002000

Unavailable

6

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

7

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

8

OIL PUMP ROTOR COMPL. 15MM

77038011100

Unavailable

9

OIL PUMP ROTOR COMPL. 10MM

59038011110

Unavailable

10

HH collar screw M5x16 TX30

0025050166

Unavailable

11

oil filter cover

75038041200

Unavailable

12

O-RING 39,34X2,62

07700390261

Unavailable

13

OILFILTER COVER

76038041000

Unavailable

14

OIL PIPE

76538034000

Unavailable

15

OIL FILTER SHORT

75038046100

Unavailable

16

OIL FILTER LONG

58038005100

Unavailable

17

VALVE PISTON D=10MM

58038028000

Unavailable

18

OIL PRES.SPRING 5 BAR RED 2001

58538023000

Unavailable

19

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

20

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

21

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

22

OIL SCREEN

59038016100

Unavailable

23

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

24

PLUG M20X1,5 WS=13

59038017100

Unavailable

25

OIL PUMP COVER 07

75038003000

Unavailable

26

OIL PUMP SHAFT 07

75038004000

Unavailable

27

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable

28

OIL PUMP COVER

76038003000

Unavailable

29

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

Unavailable

30

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

31

oil pressure switch ''BITRON''

61238091000

Unavailable

32

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

33

Oval head screw M5x14 TX25

58605083014

Unavailable

34

CLAMP RSGU 15/12

49007439000

Unavailable

35

clip nut M5

69008021080

Unavailable

99

OILFILTER SERVICE KIT 690

75038046110

Unavailable
